High Production Block Ice Machine(CE Approved)

High Production Block Ice Machine(CE Approved) thumbnail-1
High Production Block Ice Machine(CE Approved) thumbnail-2
High Production Block Ice Machine(CE Approved) thumbnail-3
High Production Block Ice Machine(CE Approved) thumbnail-4
High Production Block Ice Machine(CE Approved) thumbnail-5
High Production Block Ice Machine(CE Approved) thumbnail-6
High Production Block Ice Machine(CE Approved) photo-1
High Production Block Ice Machine(CE Approved) photo-2
High Production Block Ice Machine(CE Approved) photo-3
High Production Block Ice Machine(CE Approved) photo-4
High Production Block Ice Machine(CE Approved) photo-5
High Production Block Ice Machine(CE Approved) photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Capacity:
2000KGS
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Jiangmen Pro-Taylor Refrigeration Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Jiangmen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Capacity 2000KGS
Place of Origin Guangdong, China
Brand Name Pro-taylor
Model Number MB-20
Ice Shape Ice Block
Voltage 380V
Power(W) 8.1KW
Dimension(L*W*H) 2400*960*1195mm
Weight 280kgs
Certification CE
Warranty 1 Year

Specifications

1, With CE,RoHS approved
2, With stainless steel body and mold, durble
3, Speed cooling, high production

Product Pictures

High production Block ice machine(CE approved)High production Block ice machine(CE approved)

Product Information

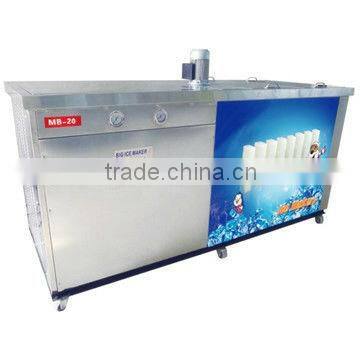

Block ice machine MB-20
Voltage 110V/220V
Frequency 50Hz/60Hz
Rate power 8.1KW
Production 2000kg/day
Dimensions 2400*960*1195(mm)
Temperature range -10 to -5°C





Working Instructions:


Supply power: 380V, 50HZ, 3P or 220-240V, 50HZ, 3P or 220V-240V, 60HZ, 3P or 380V,60HZ, 3P
Standard working conditions:
Evaporating temp:-15
Condenser temp: +40
Ambient: 40
Refrigerant:R22/R404a
Cooling system: Air cooling or Water cooling system

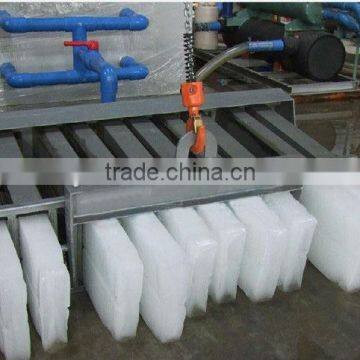

Crane System
Crane system includes crane, water filling equipment, ice falling shaft, ice thawing tank.
Crane system is designed to match with ice block machine to place ice blocks.





Crane Equipment



Equipment Name

Quantity

Material and others

Crane System

1

Channel Steel, I-bar steel, motor and so on single rails

Electrical hoist

1

Crane Capacity:0.9tons, single track

Crane whole dimension

1

13M(L)*4M(H)

Water filling system

1

Stainless steel plate

Ice falling shaft

1

Iron plate

Ice thawing system

1

Stainless steel plate

Crane supporters

8

Channel steel







High production Block ice machine(CE approved)
