Home > Products > New Arrival!! > 960H 8/16 ch HD H.264 3G Network DVR With Loop Out Embedded hd Sdi Dvr: HK-S8608F
960H 8/16 ch HD H.264 3G Network DVR With Loop Out Embedded hd Sdi Dvr: HK-S8608F
- Shenzhen
- T/T Credit Card
You May Like
-
2014 960H 8CH/16CH H.264 3G Network Embedded DVR hd Sdi Dvr: HK-S8608F
-
Low Price HD Sdi Dvr 960H hd Dvr Manual H.264 3G Network DVR With Loop Out( HK-S8608F)
-
8/16 Channel H.264 3G Network Embedded DVR With Loop Out 8ch FD1/CIF/960H/Q960H DVR ( HK-S8608F)
-
8/16 Channel 960H/FD1 Video Input 2U DVR H.264 3G Network DVR With Loop Out ( HK-S8608F)
-
New 960H H.264 3G Network DVR With Loop Out 8ch/16ch 960H Full Channels Realtime Playback( HK-S8608F)
-
hd Sdi Dvr 960H hd Dvr Manual H.264 3G Network DVR With Loop Out( HK-S8608F)
Product Details
| Place of Origin | Guangdong, China | Brand Name | Hyking | |
| Model Number | HK-S8608F |
Product Description
Specifications
hd sdi dvr: HK-S8608F-8/16 channel 960H/FD1 video input 2U DVR
-Support 8 HDDs, 2 eSATA
-8CH/16CH Loop out

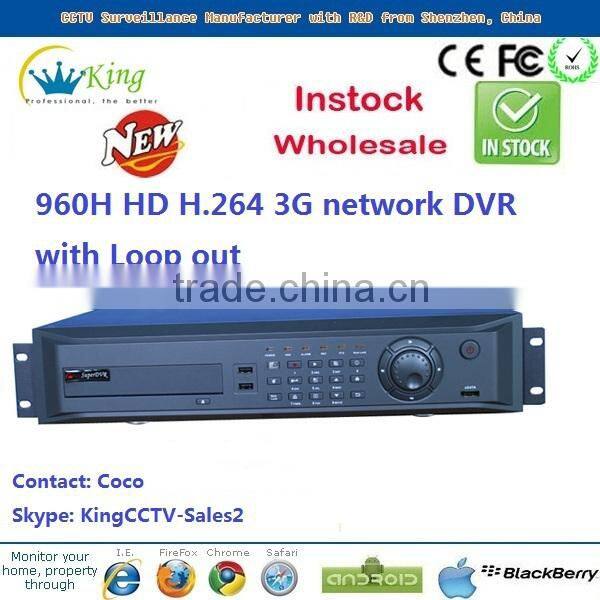

960H 8/16 ch HD H.264 3G network DVR with Loop out embedded hd sdi dvr: HK-S8608F
Features:
- The video compression is H.264, supports VBR as well as CBR, selectable video picture quality
- 8/16 channel 960H/FD1 video input 2U DVR
- Support 8 HDDs, 2 eSATA, 4 USB Interfaces
- Support Icon Interface, User Friendly & Easy-Operate
- Support AVI Backup, Snapshot, Record Lock, Record Cutting
- Quick Backup when Playback
- Support 3G Network Access
- Max 8 Network Accessing Users
- Support Eliminating Bad Disk, HDD Record Storage Group, HDD R/W Control
- Support HDMI/VGA/BNC/SPOT/Loop Simultaneous Output
- Support PTZ, Manual Alarm, Alarm In/Out
- Support CMS, Web View and Mobile View(IPAD, Iphone & Android)
- IR Remote Extension Cord

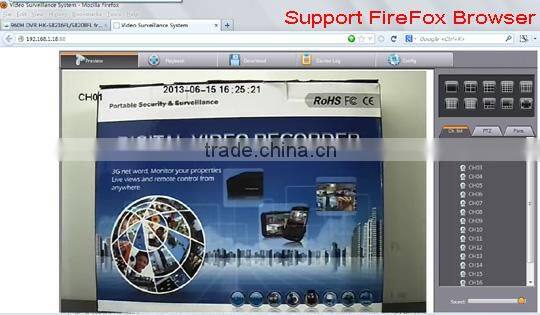

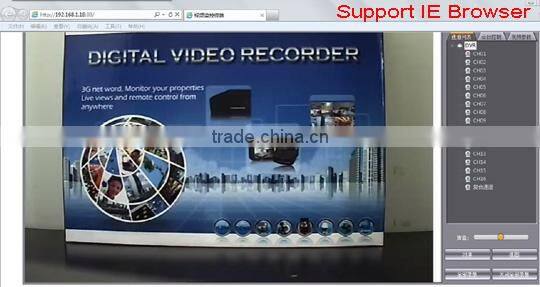

- Support Multiple Browsers: FireFox, Chrome, Internet Exploerer, Safari
- Build-in CD/DVD RW
- With 8CH/16CH Loop out
Specifications:
| Model No. | HK-S8608F | HK-S8616F |
| Compression Format | H. 264, supports VBR as well as CBR | |
| Operating system | Embedded LINUX | |
| Video Input | 8CH BNC(1.0VP-P,75Ω) | 16CH BNC(1.0VP-P,75Ω) |

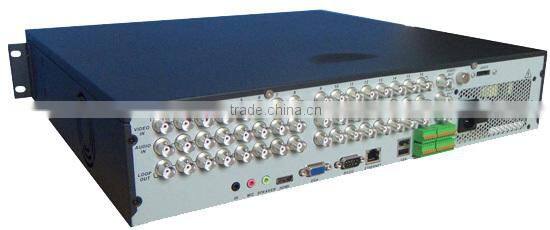

| Video Output | 1 BNC, 1 VGA,1 HDMI,1 SPOT,8/16 Loop Support | |
| Audio Input | 8CH BNC | 16CH BNC |
| Audio Output | 1ch BNC | |
| Audio Compression | G.711A | |
| Audio Bidirectional Talk | 3.5mm MIC Input Interface | |
| Alarm Input | 8CH | 16CH |
| Alarm Output | 4ch | |
| Preview Resolution | 960H: PAL(960*576), NTSC(960*480); FD1: PAL(704*576), NTSC(704*480); VGA/HDMI: 1920*1080 | |
| Preview Display | 1ch/ 4ch/ 8ch/ 9ch | 1ch/ 4ch/ 8ch/ 9ch/ 12ch/ 16ch |
| Preview Privacy Masking | 4 zones Maximum, On DVR | |
| Recording Resolution | 8ch FD1/CIF/960H/Q960H | 16ch FD1/CIF/960H/Q960H |
| Record Mode | Manual, Schedule, Motion, Alarm | |
| Record Interval | Pre-record: 5~30 sec., Post-record: 0~180sec. | |
| Playback Channel | 8ch/16ch 960H Full Channels Realtime Playback | |
| Playback Search Mode | Time, Date, Record Mode, Smart Search,Quick Playback | |
| Playback Privacy Masking | 4 Zones Maximum, On DVR and PC | |
| 3G Network | Support 3G Modem | |
| Remote Operation | WEB( FireFox, Chrome, Internet Exploerer, Safari) | |
| Mobile Support | Support (IPhone, Andorid, Ipad) | |
| Backup | USB Disk/ USB HDD/ USB CD&DVD-RW / eSATA / Internal SATA burner / Network Download | |
| HDD | 8 HDD(Max support 4TB each), 2 eSATA(Front 1,Back 1) | |
| Network Interface | 1 RJ-45 10/100M/1000M adaptive Ethernet Interface | |
| USB Interface | 4 Interfaces( Front 2 & Back 2) | |
| Auxiliary Interface | 1 RS-485(FDX), 1 RS232, 1 IR Extension Cord | |
| Storage Temperature& Humidity | -20~65°C/ 10~90% RH (No Condenser) | |
| Operation Temperature& Humidity | -10~45°C / 15~85% RH | |
| Power Adapter | 220/110V, 50/60HZ | |
| Power | 67W | 71W |
| Dimension(L*W*H) | 440 * 440 * 88mm | |
| Weight | Gross weight, 10kg; Net weight, 7.3kg | |
Applications
960H DVR, H.264 compression, can display up to 16 Cameras, support 8ch/16ch 960H Full Channels Realtime Playback, Recommended installation areas are Securities Companies, Change Booths, Pawnshops, Jewerlers, Galleries, Exhibition Halls, Department Stores, Convenience Stores, Discount Offices, Hospitals, Police Stations, Subway Stations, Airports, Banks, etc.

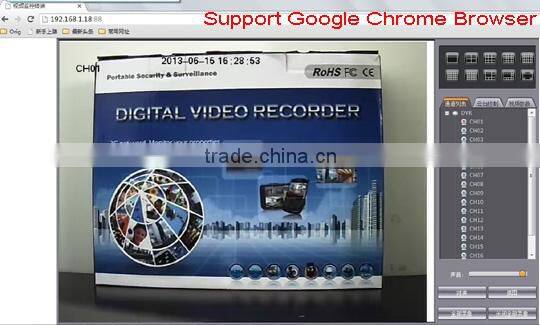

support Google Chrome browser
Shipping:
1. About the Shipping, you can choose DHL, UPS, Fedex, TNT, EMS,china post etc. Notice: To Russian andUkrainian can only be sent by EMS and China Post.
2. Normally the DHL, UPS, Fedex, TNT and EMS will take 3 to 7 days to arrive, but China Post need 15 to 30 days arrive. If you need goods urgently, please choose carrier carefully.
3. Sometimes, after we sent goods to forwarder, the goods maybe delayed by some unexpected problems, such as customs delay or any other problems, we will help to deal with it actively.
Our services:
Basic service
1. Any inquiry will be replied within 24 hours
2. Professional manufacturer. Welcome to visit our factory in ShenZhen City
3. OEM/ODM service is offered. Any of your designs are welcomed
4. High quality, fashionable designs, reasonable & competitive price, fast delivery date.
After-Sale Service
All DFD products enjoy the 3-year warranty and definitely will be free from maintenance within the warranty period.
Fast Delivery
Within 3 ~ 15 days for after payment cleared
Shipping
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS.
Shenzhen KingCCTV Technology Co., Ltd. is a high technology enterprise, engaged in software & hardware development, manufacturing and sales for security & safe products.
KingCCTV is headquartered in Futian District of Shenzhen, China. Our factory is in Yindafeng Industry Park of Longgang District of Shenzhen. As our business extended, in order to provide more products and better service, we established a Greece Branch on January of 2008, and established a USA Branch in Senoia GA on October of 2012. We mainly sell, develop and manufacture DVR, HDVR, NVR, CCTV Camera, IP Camera, PTZ camera, etc.
We have a skilled and knowledged technical team who concentrates on research and development of new product, every team member has more than ten years' experience in this field. Our products with high quality and high performance have gained a good reputation in the circle. Also we have a strong sales team with professional skills and knowledge, which has made our business extend grapidly. Our products are extensively sold to more than fifty countries and regions all over the world. Our technical support team can provide pre-sales and after-sales service to customers at any time.
Up to now, we have already built a scientific and reasonable system for R&D, marketing and manufacturing. Based on the enterprise notion of "Building a harmonious and safe society on the foundation of innovation of science and technology", we are leading KingCCTV's R&D and manufacture on a healthy developing road, and also have brought its research and manufacture to a higher level, hence have laid a sound foundation for its long-term development.
Q: How long is the warranty?
A: 2 years warranty since delivered out.
Q: What's the MOQ?
A: Sample order, no MOQ limit.
Q: How long is the delivery time?
A: Around 3-15 working days upon receipts of payment.
Q: Why do you choose us?
A: Choose Shenzhen KingCCTV Technology Co., Ltd. ; Choose a qualified CCTV Products manufacturer!
We will try our best to find the products you need, we will provide you with the most satisfactory service. If you want to learn more, You can contact us. We also welcome you to visit our factory in Shenzhen.
