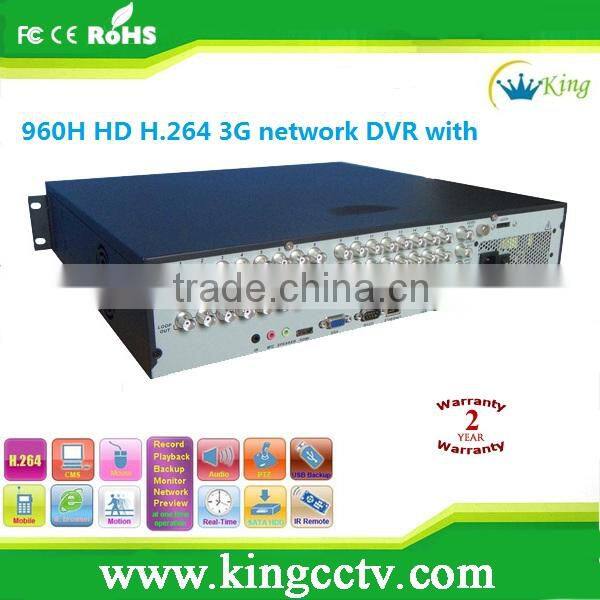

8/16 Channel 960H/FD1 Video Input 2U DVR H.264 3G Network DVR With Loop Out ( HK-S8608F)
Specifications
hd sdi dvr: HK-S8608F-8/16 channel 960H/FD1 video input 2U DVR
-Support 8 HDDs, 2 eSATA
-8CH/16CH Loop out
HD sdi dvr 960H hd dvr manual H.264 3G network DVR with Loop out( HK-S8608F)
Features
- The video compression is H.264, supports VBR as well as CBR, selectable video picture quality
- 8/16 channel 960H/FD1 video input 2U DVR
- Support 8 HDDs, 2 eSATA, 4 USB Interfaces
- Support Icon Interface, User Friendly & Easy-Operate
- Support AVI Backup, Snapshot, Record Lock, Record Cutting
- Quick Backup when Playback
- Support 3G Network Access
- Max 8 Network Accessing Users
- Support Eliminating Bad Disk, HDD Record Storage Group, HDD R/W Control
- Support HDMI/VGA/BNC/SPOT/Loop Simultaneous Output
- Support PTZ, Manual Alarm, Alarm In/Out
- Support CMS, Web View and Mobile View(IPAD, Iphone & Android)
- IR Remote Extension Cord
- Support Multiple Browsers: FireFox, Chrome, Internet Exploerer, Safari
- Build-in CD/DVD RW
- With 8CH/16CH Loop out
Specifications
| Model No. | HK-S8608F | HK-S8616F |
| Compression Format | H. 264, supports VBR as well as CBR | |
| Operating system | Embedded LINUX | |
| Video Input | 8CH BNC(1.0VP-P,75Ω) | 16CH BNC(1.0VP-P,75Ω) |
| Video Output | 1 BNC, 1 VGA,1 HDMI,1 SPOT,8/16 Loop Support | |
| Audio Input | 8CH BNC | 16CH BNC |
| Audio Output | 1ch BNC | |
| Audio Compression | G.711A | |
| Audio Bidirectional Talk | 3.5mm MIC Input Interface | |
| Alarm Input | 8CH | 16CH |
| Alarm Output | 4ch | |
| Preview Resolution | 960H: PAL(960*576), NTSC(960*480); FD1: PAL(704*576), NTSC(704*480); VGA/HDMI: 1920*1080 | |
| Preview Display | 1ch/ 4ch/ 8ch/ 9ch | 1ch/ 4ch/ 8ch/ 9ch/ 12ch/ 16ch |
| Preview Privacy Masking | 4 zones Maximum, On DVR | |
| Recording Resolution | 8ch FD1/CIF/960H/Q960H | 16ch FD1/CIF/960H/Q960H |
| Record Mode | Manual, Schedule, Motion, Alarm | |
| Record Interval | Pre-record: 5~30 sec., Post-record: 0~180sec. | |
| Playback Channel | 8ch/16ch 960H Full Channels Realtime Playback | |
| Playback Search Mode | Time, Date, Record Mode, Smart Search,Quick Playback | |
| Playback Privacy Masking | 4 Zones Maximum, On DVR and PC | |
| 3G Network | Support 3G Modem | |
| Remote Operation | WEB( FireFox, Chrome, Internet Exploerer, Safari) | |
| Mobile Support | Support (IPhone, Andorid, Ipad) | |
| Backup | USB Disk/ USB HDD/ USB CD&DVD-RW / eSATA / Internal SATA burner / Network Download | |
| HDD | 8 HDD(Max support 4TB each), 2 eSATA(Front 1,Back 1) | |
| Network Interface | 1 RJ-45 10/100M/1000M adaptive Ethernet Interface | |
| USB Interface | 4 Interfaces( Front 2 & Back 2) | |
| Auxiliary Interface | 1 RS-485(FDX), 1 RS232, 1 IR Extension Cord | |
| Storage Temperature& Humidity | -20~65°C/ 10~90% RH (No Condenser) | |
| Operation Temperature& Humidity | -10~45°C / 15~85% RH | |
| Power Adapter | 220/110V, 50/60HZ | |
| Power | 67W | 71W |
| Dimension(L*W*H) | 440 * 440 * 88mm | |
| Weight | Gross weight, 10kg; Net weight, 7.3kg | |
Applications
960H DVR, H.264 compression, can display up to 16 Cameras, support 8ch/16ch 960H Full Channels Realtime Playback, Recommended installation areas are Securities Companies, Change Booths, Pawnshops, Jewerlers, Galleries, Exhibition Halls, Department Stores, Convenience Stores, Discount Offices, Hospitals, Police Stations, Subway Stations, Airports, Banks, etc.
support Google Chrome browser
