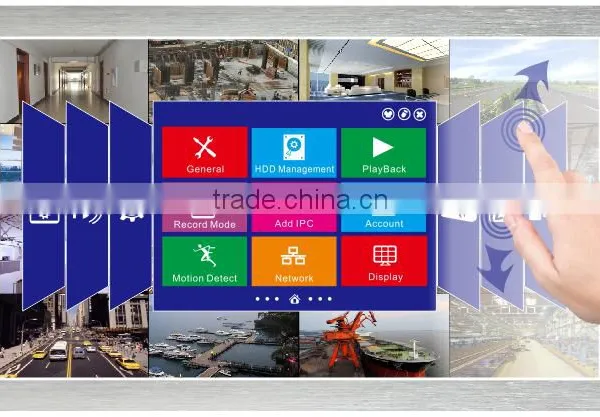

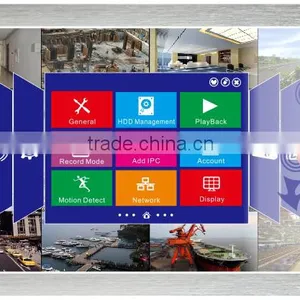

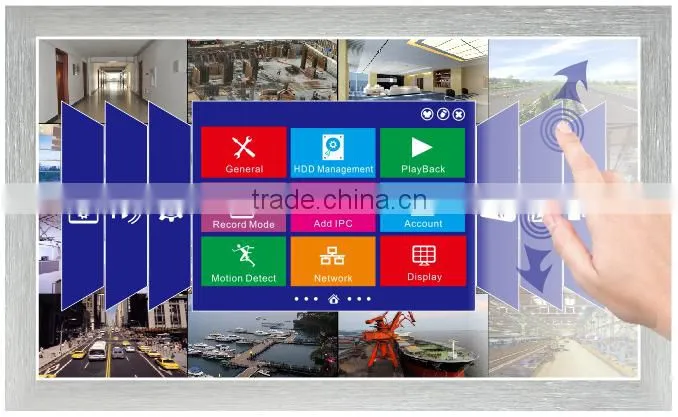

16CH WIN8 interface 21.5 inch touch screen AHD/DVR/NVR 3 in 1 h.264 recorder
Features
| AHD3216FT-18B | |
| Video/Audio input | |
| Video compression | H.264 |
| Analog video input | 16PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω) |
| Audio compression | ADPCM |
| Audio input | 2PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ) |
| Two-way audio input | 1PCS RCA Port( line level , impedance : 1kΩ) |
| Video/Audio output | |
| Multi-mode switch |
AHD: 16CH*720P(compatible with 960H analog); AHD+IP: 8CH*720P+8CH*IPC 1080P; 16CH*720P+4CH*IPC1080P; IP: 16CH*1080P; 8CH*3MP; 4CH*5MP |
| HDMI/VGA output | 800x600,1024x768,1280x1024,1440x900,720P,1080P |
| CVBS output | No |
| Encording resolution | CIF/D1/960H/720P/960P/1080P/3M/5M |
| Frame rate | NTSC:1~30FPS/S;PAL:1~25FPS/S |
| Video bit rate | 256kps/384Kbps/512Kbps/640kbps/768Kbps/1M/1.5M/2M/2.5M/3M/4M/5M/6M/8M |
| Audio output | 1PCS RCA Port( line level , impedance : 1kΩ) |
| Audio bit rate | 16kpbs |
| Dual-stream | Yes |
| Stream type | combine streams/ video stream |
| Playback resolution |
AHD:16CH 720P 8CH@175FPS; AHD+IP: 12CH 720P+4CH 1080P 720P 4CH@100FPS or 1080P 4CH@100FPS; IP:9CH 3MP 4CH@60FPS |
| Synchronous palyback | 1/4/9/16CH |
| Hard disk | |
| SATA | 1*SATA |
| eSATA | No |
| Capacity | each port support max 4TB HDD |

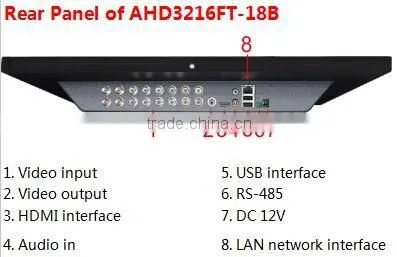

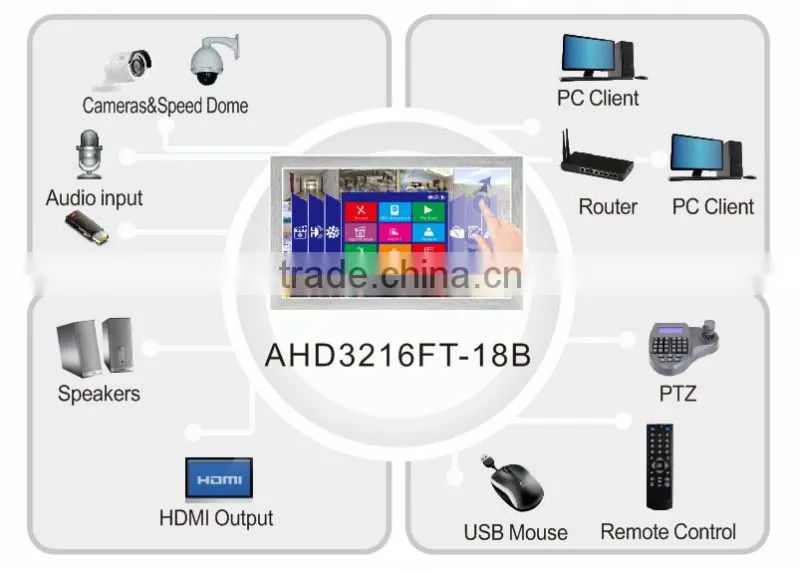

| External interface | |
| Network interface | 1PCS RJ45 10M / 100M adaptive Ethernet port |
| Serial interface | 1PCS RS485 |
| USB interface | 2*USB2.0 |
| Alarm in/out | No |
| General | |
| Power supply | DC 12V |
| Comsumption | ≤35W |
| Working temperature | -10℃--+55℃ |
| Working humidity | 10%--90% |

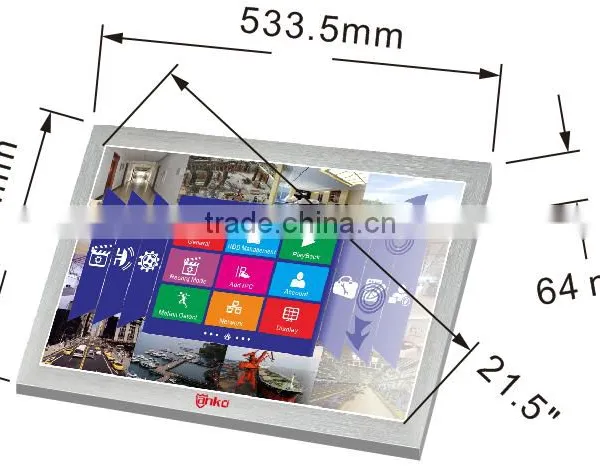

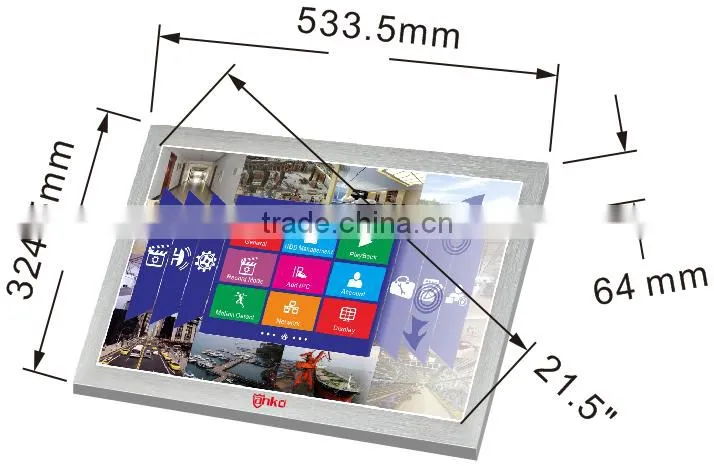

| Dmensions(W×D×H) | 59*12*38cm |
| Weight | ≤10KG |
| Touch screen size | |
| diagonal size | 21.5 inch |
| Optical glass parameters | |
| Material | Tempered glass |
| Thickness | 3MM |
| Surface abrasion resistance | Strong |
| translucency | >88% |
| homogeneity | Good |
| electric parameter | |
| Working Voltage | 4.5~5.5Vdc |
| working current | <100mA |
| Sleep mode | Support |
| Sleep time | sleep without touching within 1 minute |
| Wake up time | Continuous touch 50ms |
| sleep working current | <50mA |
Real shot
Welcome to vist our factory anytime you like
(1)What is your MOQ?
Edison: Dear, for sample order, there is no MOQ. From second order, at least 50 pcs per order.
(2)How about delivery time?
Edison: We always make the shipment by DHL,UPS,Fedex. About 3-25 business days after confirming your payment.
(3)Payment terms?
Edison: We accept T/T, Paypal, Western Union payment.
(4)Can I be your exclusive representative?
Edison: Sure, dear. You are welcome to be our agents in your market. We have official contract to sign. Till now, we have sold our products to more than 40 countries.
(5)How about warranty?
Edison: All of our products are of 2 YEAR warranty.
(6)Can you do OEM/ODM?
Edison: Yes, both OEM and ODM services are acceptable and we can also print your logo and make your own packaging according to your requriements.
21.5 inch touch screen AHD/DVR/NVR 3 in 1
