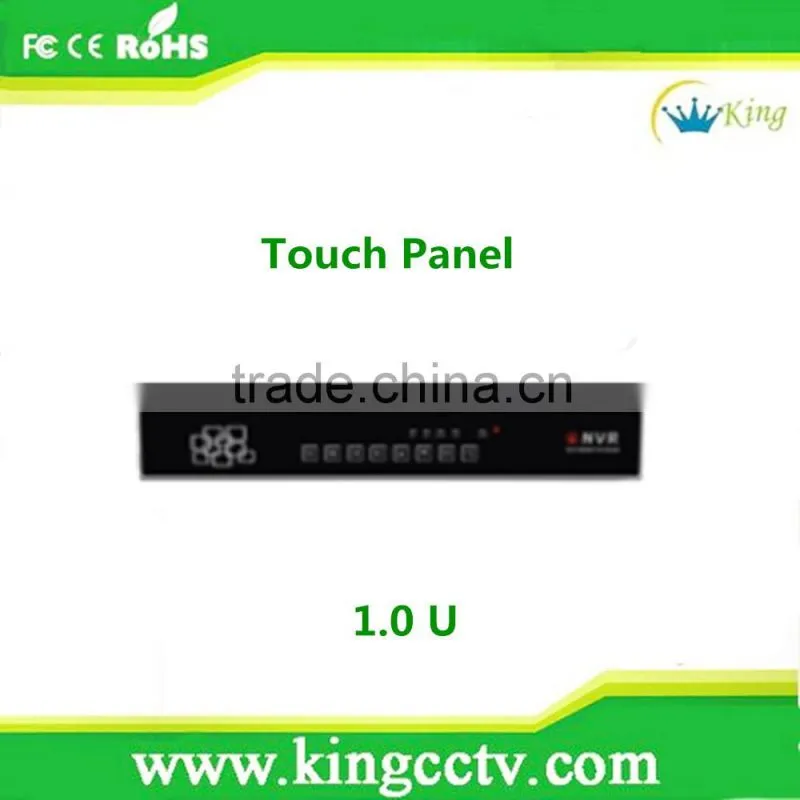

Help CenterCCTV NVR Home Surveillance Video Recorder H.264 IP Camera Nvr 4CH 1080P ONVIF Cloud Technology
Related Products
-
Onvif NVR 16ch CCTV Recorder Surveillance Systems H.264 1080P NVRUS$ 28 - 30MOQ: 1 Piece -
Newest CCTV Products 5 In1 4ch AHD DVR 1080P AHD/ TVI/IP/Analog XVR 16CH DVR Video Recorder SystemUS$ 135 - 142MOQ: 1 Piece
-
2016 New Item WIN8 Interface 16CH 21.5' All in One Touch Screen 1080P 3in 1 DVRUS$ 218 - 229MOQ: 1 Piece
-
AHD DVR 1080P All in One 16 Channel LCD NVR CCTV Network Touch Screen 3 in 1 XVR 21.5 InchUS$ 274 - 288MOQ: 1 Piece
-
KingCCTV Newest All in One 4CH 1080P LCD DVR 21.5 Inch Touch Screen XVRUS$ 218 - 229MOQ: 1 Piece
W What is the Specifications of our products?
Key features
• Video Input: 4CH
• Preview: 16ch 720P realtime or
9ch 1080P realtime
HI3535
• Record Solution: 5MP/3MP1080P/960P/720P
Playback: 16ch 720P realtime or 9ch 1080P realtime
or 4ch 3Mp @ 50/60FPS or 2ch 5Mp @ 25/30FPS
• 4/9/16/25/32 Audio Input
• No Alarm I/O
• 1*4T HDD
• VGA/HDMI output
| NVR6204F | |
| Video & audio input | |
| Network video input | 4CH |
| Video & audio output | |
| HDMI output | 800x600,1024x768,1280x1024,1440x900,720P,1080P |
| VGA output | 800x600,1024x768,1280x1024,1440x900,720P,1080P |
| CVBS output | NO |
| Audio output | 1PCS RCA Port( line level , impedance : 1kΩ) |
| Video & audio code and decode parameters | |
| Record resolution | D1/HD1/CIF/720P/960P/1080P |
| Playback resolution | 3MP 100/120FPS 5MP 50/60FPS |
| Motion detection | Motion Detection Depend on NVR |
| Synchronously playback channels | 1/4CH |
| Record management | |
| Record & Snapshot mode | manual recording, regular recording, motion recording, alarm recording, events recording |
| Playback mode | regular playback,alarm playback,motion detection playback,events playback |
| Backup mode | regular backup, events backup, manual backup |
| Hard driver | |
| Mode | 2*SATA |
| HDD capacity | each port support max 4TB HDD |
| External port | |
| Voice intercom | 1PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ) |
| Internet port | 1PCS RJ45 10M / 100M /1000M adaptive Ethernet port |
| USB port | 1*USB2.0 1*USB3.0 |
| Alarm in/out | NO |
| Network Management | |
| Network protocol | NTP,SMTP,PPPoE,DDNS,FTP,ARSP,WIFI,3G |
| Other | |
| Power supply | DC12V |
| Power consumtion (without HDD) | ≤18W |
| Work temperature | -10℃--+55℃ |
| Work humidity | 10%--90% |
| Case | 1.0U |
| Size(W*L*H(cm)) | 335*255*50mm |
| Net weight (without HDD) | 1.36kg |
| Gross weight (without HDD) | 2.23kg |
| Color box size (L*W*H(cm)) | 39*30*11cm |
| Packing(pcs/carton) | 5 |
| Carton size (L*W*H(cm)) | 57*40.7*32.6cm |
| Gross weight(kg) | 12.04kg |
W What is the Applications of our products?
P Packaging &Shipping,Trade Terms
W Why choosing us?
1. More professional, better quality.
We engaged in software & hardware development, manufacturing and sales for security & safe products.( CCTV camera, IP camera, DVR, NVR ) for about 10 years.
2. OEM/ ODM service available.
Any your idea on camera we can help you to design and put in solution.
3.Strong Tech support.
* Presale: product consultation and solution design can be provided.
* After sale: We offer a 2-years warranty, which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.
* We can also provide customized products, project designs, our project partner like: Shell in Japan, Barranquilla Harbour in Colombia, Greece National Park..
3. Strict Quality Control :
All of our electronic parts will stay in constant temperature machines more than 48 hours before assembly, all products wiil be fully inspected before shipment.
with CE, ROHS, FCC approval.
A ABOUT US
O Our Certifications
O Our Exhibitions & Customers visiting
F FEEDBACK
C Customers from All over the World
F FAQ
Q1. Can I get samples?
A1. Sure. We will appreciate it if you’d like to purchase samples for tests first. For sample order, there is no limit on MOQ. And we will send samples as soon as possible after confirming your payment.
Q2. Are you factory?
A2. Yes we are. We have our own factory, which can help you get factory direct selling products with competitive prices. We always monitor strictly the quality of products before they leave factory.
Q3. How about warranty period? If any problem, can I get enough support?
A3. All the products you purchase from us have 2 YEAR WARRANTY. If the product is broken during this time, you can ship the item to us to repair or you can keep it and we will send a total new one to you soon. With strong technical team, we can provide life-time and timely technical support whenever there is something wrong with our products.
Q4. Why the shipping cost is so much? How about delivery time?
A4. Before shipment, we will find the most reliable carrier for you to make sure of lowest freight cost and shortest lead time. As for the delivery time, it depends on the order quantity. Normally it would take 3-15 days for one order.
Q5. Can I become your sole distributor in my place?
A6. We appreciate that. And we will discuss about your market situation together and after confirmation we will send you a contract with detailed requirements about sales targets.
Q6. Can you give us enough brochures and ideas as promotion to our customers?
A6. Yes, we’d love to help you promote your business. Welcome to share your idea of your market status and we will give you valuable advice and detailed information you need.
Q7. Can you make OEM products for us?
Q8. Sure we can. Do not worry, we can print your logo both on the products and boxes. But we might ask for MOQ according to the real situation.
