New products 24ch h.264 network 24 hours video camera recorders
W What is the Feature of our Products?
Features
- 25chs IP camera inputs
- 16ch 720P realtime or 9ch 1080P realtime preview
- Record Solution: 5M/3M/1080P/960P/720P
-
Playback:
16ch 720P realtime or 9ch 1080P realtime or
4ch 3Mp @ 50/60FPS or 2ch 5Mp @ 25/30FPS - Audio:25ch input, Alarm:16ch in/4ch out
- 8*4T HDD
- NVR supports the popular brand TI, Hisilicon, Ambarella programs IPC and Dahua , Hikvision , Topsee , Axis , Canon, Dynacolor, Panasonic, Samsung, Sanyo , Sony and other IP cameras and the latest Onvif protocols
- VGA/HDMI output
- Multi-language Support(English, Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Simplified Chinese, Chinese-Traditional, Turkish, etc)
- support P2P, cloud service
W What is the Specifications of our products?
New products 24ch h.264 network 24 hours video camera recorders
| Model | NVR6825F |
| Video & audio input | |
| Network video input | 25CH |
| Video & audio output | |
| HDMI output | 800x600,1024x768,1280x1024,1440x900,720P,1080P |
| VGA output | 800x600,1024x768,1280x1024,1440x900,720P,1080P |
| CVBS output | NO |
| Audio output | 1PCS RCA Port( line level , impedance : 1kΩ) |
| Video & audio code and decode parameters | |
| Record resolution | D1/HD1/CIF/720P/960P/1080P/3M |
| Playback resolution | 720P 380/450FPS 1080P 100/120FPS 3MP 50/60FPS |
| Motion detection | Motion Detection Depend on NVR |
| Synchronously playback channels | 1/4/9/16CH |
| Record management | |
| Record & Snapshot mode | manual recording, regular recording, motion recording, alarm recording, events recording |
| Playback mode | regular playback,alarm playback,motion detection playback,events playback |
| Backup mode | regular backup, events backup, manual backup |
| Hard driver | |
| Mode | 8*SATA |
| HDD capacity | each port support max 4TB HDD |
| External port | |
| Voice intercom | 1PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ) |
| Internet port | 1PCS RJ45 10M / 100M/1000M adaptive Ethernet port |
| USB port | 2*USB2.0 1*USB3.0 |
| Alarm input | 16 |
| Alarm output | 4 |
| Network Management | |
| Network protocol | NTP,SMTP,PPPoE,DDNS,FTP,ARSP,WIFI,3G |
| Other | |
| Power supply | AC100~240V |
| Power consumtion(without HDD) | ≤50W |
| Work temperature | -10℃--+55℃ |
| Work humidity | 10%--90% |
| Case | 2U |
| Size(W*L*H(cm)) | 04C:440*455*90mm 24C:440*447*90mm |
WWhat is the function of our product?

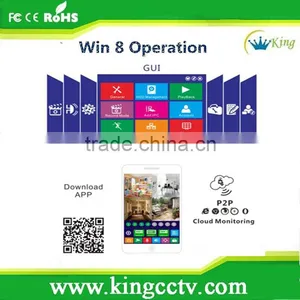

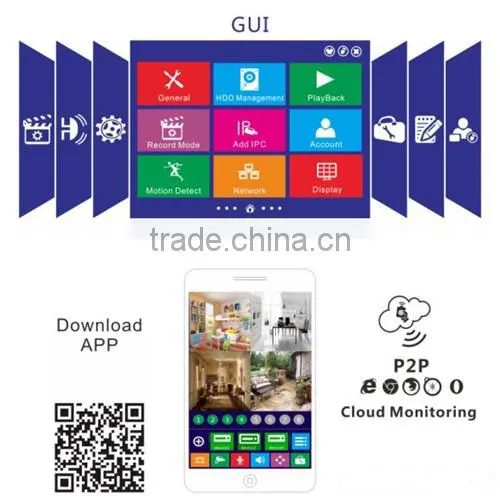

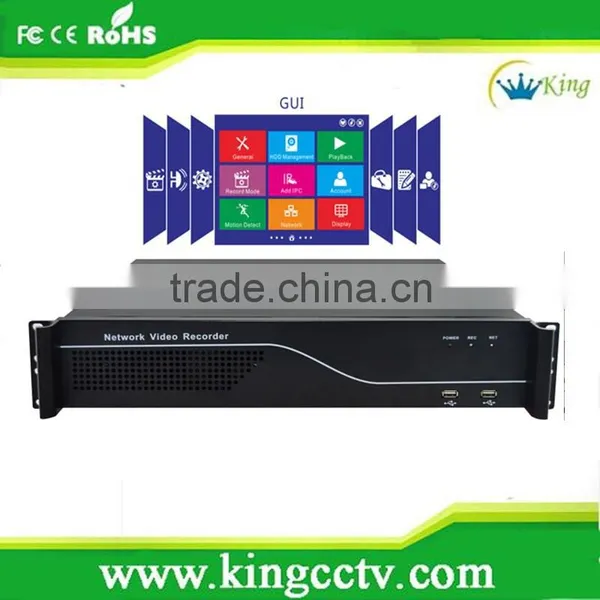

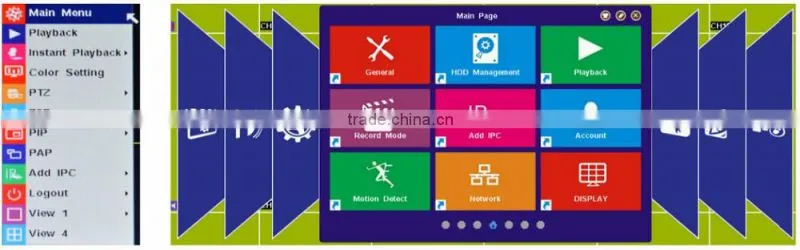

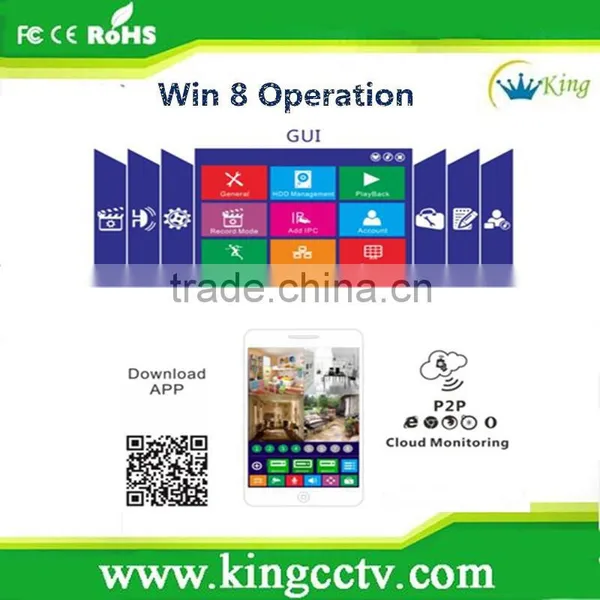

WIN 8 software: users-friendly, easy-operating.
Function: PAP, PIP, Fast playback, Slice recording, Cut and back up, Smart Search

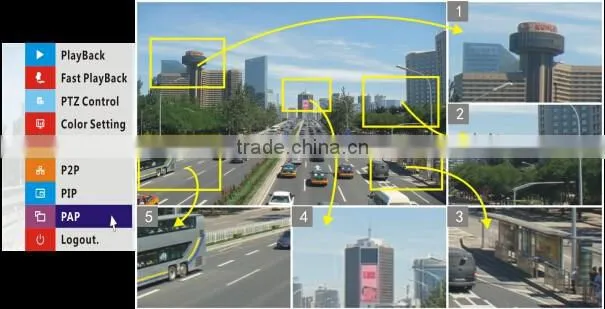

PAP
you can zoom many areas and and view these zoomed areas at the same time

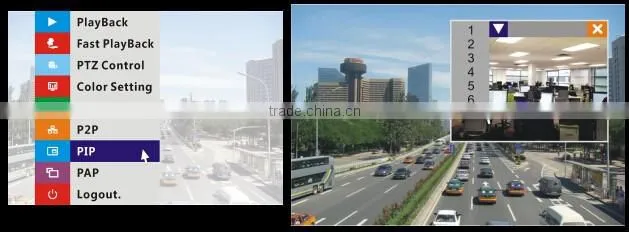

PIP PAP
View any other channel together, window can be dragged.

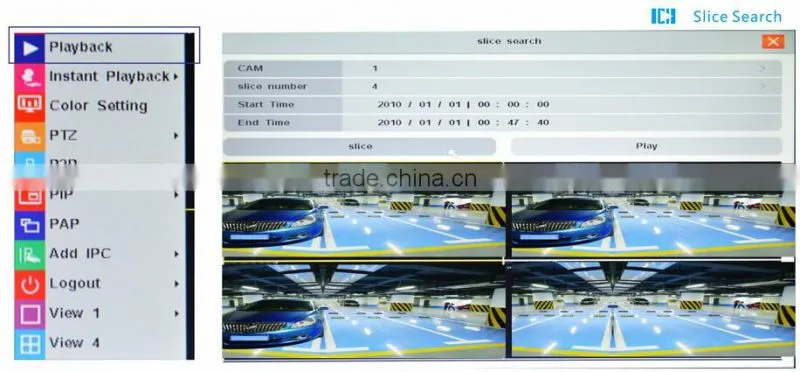

Slice Recording
In playback, the recording file can be sliced equally into smaller segmentation, which can be sliced equally again until the smallest segmentation. you can playback any segmentation. it save you much time to find a particular recording.
W What is the Applications of our products?
P Packaging &Shipping,Trade Terms
W Why choosing us?
1. More professional, better quality.
We engaged in software & hardware development, manufacturing and sales for security & safe products.( CCTV camera, IP camera, DVR, NVR ) for about 10 years.
2. OEM/ ODM service available.
Any your idea on camera we can help you to design and put in solution.
3.Strong Tech support.
* Presale: product consultation and solution design can be provided.
* After sale: We offer a 2years warranty, which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.
* We can also provide customized products, project designs, our project partner like: Shell in Japan, Barranquilla Harbour in Colombia, Greece National Park..
4. Strict Quality Control :
All of our electronic parts will stay in constant temperature machines more than 48 hours before assembly, all products wiil be fully inspected before shipment.
with CE, ROHS, FCC approval.
A ABOUT US
O Our Certifications
O Our Exhibitions & Customers visiting
New products 24ch h.264 network 24 hours video camera recorders
F FEEDBACK
C Customers from All over the World
F FAQ
Q1. Can I get samples?
A1. Sure. We will appreciate it if you’d like to purchase samples for tests first. For sample order, there is no limit on MOQ. And we will send samples as soon as possible after confirming your payment
Q2. Are you factory?
A2. Yes we are. We have our own factory, which can help you get factory direct selling products with competitive prices. We always monitor strictly the quality of products before they leave factory.
Q3. How about warranty period? If any problem, can I get enough support?
A3. All the products you purchase from us have 2 YEAR WARRANTY. If the product is broken during this time, you can ship the item to us to repair or you can keep it and we will send a total new one to you soon. With strong technical team, we can provide life-time and timely technical support whenever there is something wrong with our products.
Q4. Why the shipping cost is so much? How about delivery time?
A4. Before shipment, we will find the most reliable carrier for you to make sure of lowest freight cost and shortest lead time. As for the delivery time, it depends on the order quantity. Normally it would take 3-15 days for one order.
Q5. Can I become your sole distributor in my place?
A5. We appreciate that. And we will discuss about your market situation together and after confirmation we will send you a contract with detailed requirements about sales targets.
