Cheap 4channel XVR h.264 hybrid dvr cctv 4 in 1 DVR
W What is the Feature of our Products?
>H.264 Video compression
>AHD/NVR/DVR Three-in-one
>Support multi-mode switch
>AHD:4*1080H;IP: 4*720P
AHD TVI: 4CH*1080H(compatible with 720P 960H analog)
>Playback resolution: AHD TVI: 1CH 1080H@25FPS; IPC: 4CH 720P@100FPS
W What is the Specifications of our products?
| XVR2104S | |
| Video/Audio input | |
| Video compression | H.264 |
| Analog video input | 4PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω) |
| Audio compression | ADPCM |
| Audio input | 4PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ) |
| Two-way audio input | 1PCS RCA Port( line level , impedance : 1kΩ) |
| Video/Audio output | |
| Multi-mode switch |
AHD TVI: 4CH*1080H(compatible with 720P 960H analog) IP: 4*720P |
| HDMI/VGA output | 1024x768,1280x720,1280x1024 |
| CVBS output | 1PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω) |
| Encoding resolution |
AHD TVI: 4CH*1080H@100FPS IPC: 4CH*720P@100FPS |
| Frame rate | NTSC:1~30FPS/S;PAL:1~25FPS/S |
| Video bit rate | 256kps~8192kps |
| Audio output | 1PCS RCA Port( line level , impedance : 1kΩ) |
| Audio bit rate | 16kpbs |
| Dual-stream | YES |
| Stream type | combine streams/ video stream |
| Playback resolution |
AHD TVI: 1CH 1080H@25FPS IPC: 4CH 720P@100FPS |
| Synchronous palyback | 1/4CH |
| Hard disk | |
| SATA | 1 SATA III Ports, up to 4TB |
| eSATA | No |
| Capacity | each port support max 4TB HDD |
| External interface | |
| Network interface | 1PCS RJ45 10M / 100M adaptive Ethernet port |
| Serial interface | 1PCS RS485 |
| USB interface | 2*USB2.0 |
| Alarm in/out | NO |
| General | |
| Power supply | DC12V |
| Comsumption | ≤12W |
| Working temperature | -10℃--+55℃ |
| Working humidity | 10%--90% |
| Chassis | 0.8U |
| Dmensions(W×D×H) | 255*215*45mm |
| Weight | 0.86kg |

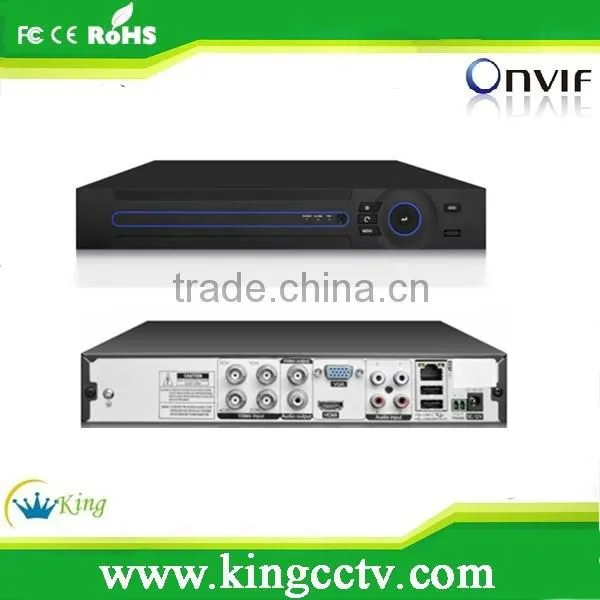

P Product Photos
W Why choosing us?
1. More professional, better quality.
We engaged in software & hardware development, manufacturing and sales for security & safe products.( CCTV camera, IP camera, DVR, NVR ) for about 10 years.
2. OEM/ ODM service available.
Any your idea on camera we can help you to design and put in solution.
3.Strong Tech support.
Presale: product consultation and solution design can be provided.
After sale: We offer a 2years warranty, which includes maintenance and technical support for all the products.
4. Strict Quality Control :
All of our electronic parts will stay in constant temperature machines more than 48 hours before assembly, all products wiil be fully inspected before shipment.with CE, ROHS, FCC approval.
A ABOUT US
O Our Certifications
O Our Exhibitions & Customers visiting
Cheap 4channel XVR h.264 hybrid dvr cctv 4 in 1 DVR
F FEEDBACK
F FAQ
Q1. Are you factory?
A1. Yes we are. We have our own factory, which can help you get factory direct selling products with competitive prices.
Q2. How about warranty period?
A2. All the products you purchase from us have 2 YEAR WARRANTY. If the product is broken during this time, you can ship the item to us to repair or you can keep it.
Q3. Can you make OEM products for us?
A3. Sure we can. Do not worry, we can print your logo both on the products and boxes. But we might ask for MOQ according to the real situation.
