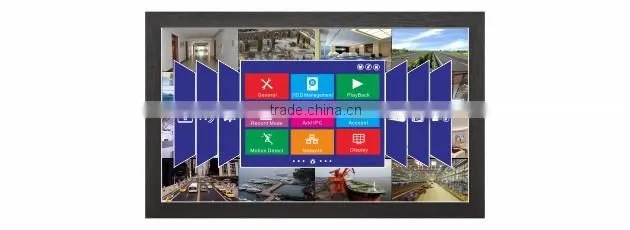

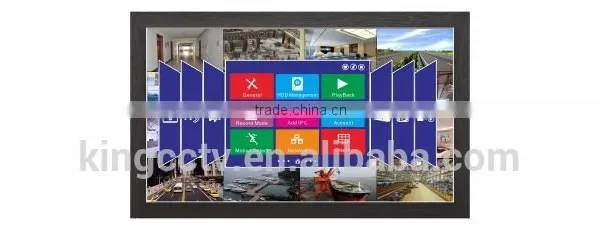

Help CenterAHD NVR DVR 3 in 1 AHD 21.5" LCD Touch Screen 21.5'' 1080P LED Monitor CCTV Multi-touch XVR
Related Products
-
AHD DVR 1080P 21.5 Inch Touch Screen XVR 3 In1 4 Channel LCD DVRUS$ 218 - 229MOQ: 1 Piece -
New Products 32Ch 5MP 3MP 1080P Onvif P2p Network Dvr,H.265 NVRUS$ 36 - 74MOQ: 1 Piece
-
Camera Security System IP Camera Video 16ch PoE NVR Recorder System Kit 16 CH PoE NVR,Support Max to 16TBUS$ 36 - 74MOQ: 1 Piece
-
25CH Onvif CCTV NVR CCTV Kit Systems IP Camera NVRUS$ 36 - 74MOQ: 1 Piece
-
Factory Wholesale 9chs720P/960P/1080P/3MP NVR 2016 Latest NVR RecorderUS$ 36 - 74MOQ: 1 Piece
W What is the Specifications of our products?

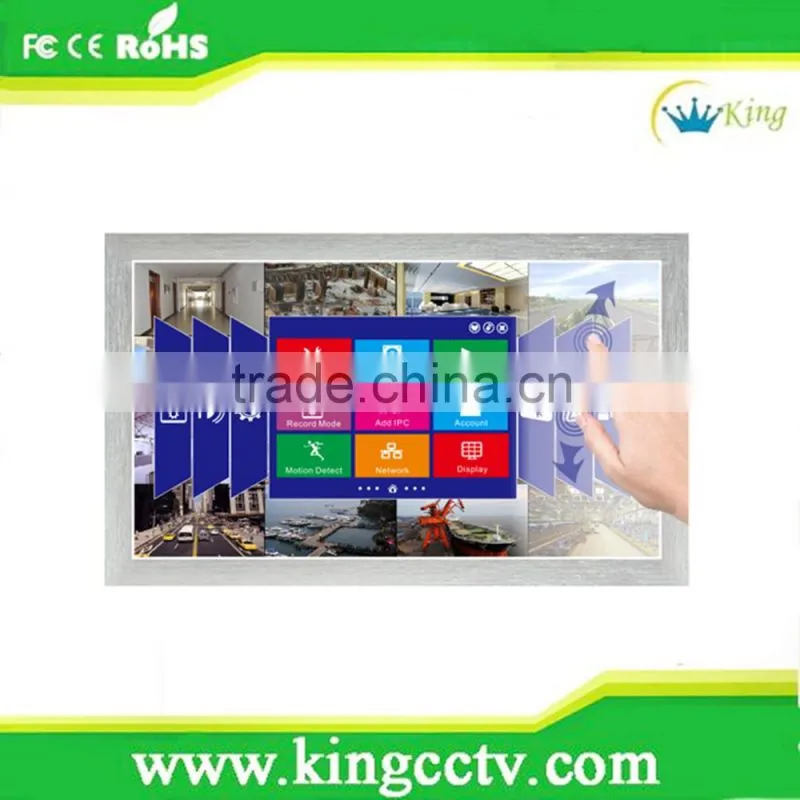

21.5'' 1080P LED monitor, Multi-touch
Key features

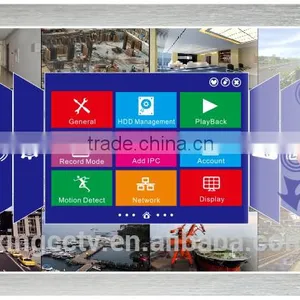

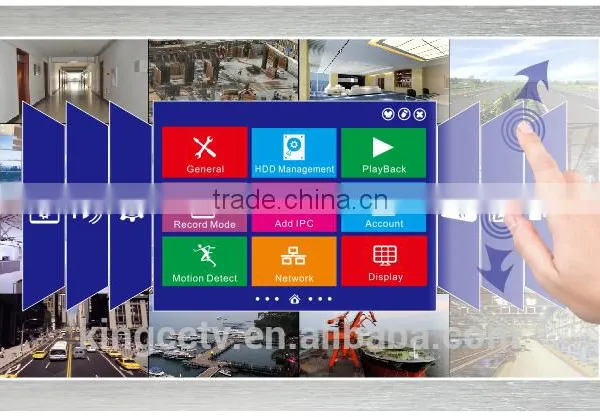

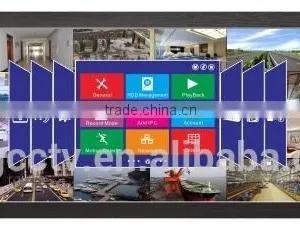

• 21.5'' 1080P LED monitor, Multi-touch, Electronic zoom, Easy to operate
AHD DVR NVR 3 in 1
• Multi-mode switch:
AHD: 8CH*720P(compatible with 960H analog);
AHD+IP: 4CH*720P+4CH*IPC1080P; IP: 9CH*1080P; 9CH*3MP; 4CH*5MP
| TS2108MT | |
| Video/Audio Input | |
| Video compression | H.264 |
| Analog video input | 8PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω) |
| Audio compression | ADPCM |
| Audio input | 4PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ) |
| Two-way audio input | 1PCS RCA Port( line level , impedance : 1kΩ) |
| Video/Audio Output | |
| Multi-mode switch | AHD: 8CH*720P(compatible with 960H analog); AHD+IP: 4CH*720P+4CH*IPC1080P; IP: 9CH*1080P; 9CH*3MP; 4CH*5MP |
| HDMI/VGA output | 800x600,1024x768,1280x1024,1440x900,720P,1080P |
| CVBS output | No |
| Encoding resolution | CIF/D1/960H/720P/960P/1080P/3M/5M |
| Frame rate | NTSC:1~30FPS/S;PAL:1~25FPS/S |
| Video bit rate |
256kps/384Kbps/512Kbps/640kbps/768Kbps/1M/1.5M/2M/ 2.5M/3M/4M/5M/6M/8M |
| Audio output | 1PCS RCA Port( line level , impedance : 1kΩ) |
| Audio bit rate | 16kpbs |
| Dual-stream | Yes |
| Stream type | combine streams/ video stream |
| Playback resolution | AHD: 8CH 720P 1CH@25FPS or 4CH 720P 4CH@100FPS; AHD+IP: 4CH 720P+4CH 1080P 720P 4CH@100FPS or 1080P 4CH@100FPS; IP:4CH 3MP 4CH@40FPS |
| Synchronous palyback | 1/4/9CH |
| Hard Disk | |
| SATA | 1*SATA |
| eSATA | No |
| Capacity | each port support max 4TB HDD |
| External Interface | |
| Network interface | 1PCS RJ45 10M / 100M adaptive Ethernet port |
| Serial interface | 1PCS RS485 |
| USB interface | 2*USB2.0 |
| Alarm in/out | No |
| General | |
| Power supply | DC 12V |
| Comsumption | ≤20W |
| Working temperature | -10℃--+55℃ |
| Working humidity | 10%--90% |

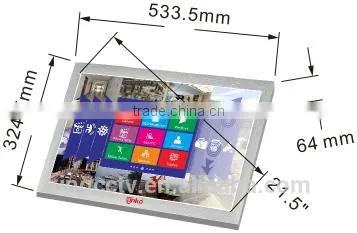

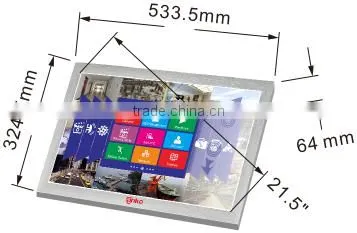

| Dmensions(W×D×H) | 59*12*38cm |
| Weight | ≤10KG |
| Touch Screen Size | |
| diagonal size | 21.5 inch |
| Optical glass parameters | |
| Material | Tempered glass |
| Thickness | 3MM |
| Surface abrasion resistance | Strong |
| Translucency | >88% |
| homogeneity | Good |
| Electric Parameter | |
| Working Voltage | 4.5~5.5Vdc |
| Working current | <100mA |
| Sleep mode | Support |
| Sleep time | sleep without touching within 1 minute |
| Wake up time | Continuous touch 50ms |
| Sleep working current | <50mA |
| Touch screen specification | |
| Touch accuracy | 5mm |
| service life | more than 3 years |
| the fastest response speed | 17ms |
| the average response speed | 18ms |
| Resolution | 4096*4096 |
| Data Correction Technology | Support |
| Compensation Technology | Support |
| self-inspection | Support |
| Anti-electromagnetic interference | Support |
| LCD screen: AUO or BOE Original screen | |
| Display size | 21.5" TFT LCD |
| Aspect Ratio | 16:9 |
| Max. Resolution | 1920*1080 |
| Contrast Ratio | 1900/2/10 16:01:00 |
| Brightness(cd/m2) | 250cd//m2 |
| Viewing Angle | 89/89/89/89(left/righ/up/down) |
| Adapter | Pin:100~240V/50~60Hz, Pout: 12V/5Adc |
| Manual | WIN10 interface manual |
| mouse | USB2.0 mouse |
| Disk | Disk |
|
1. Video input 2. Video output 3. HDMI interface 4. Audio in 5. USB interface 6. RS-485 7. DC 12V 8. LAN network interface 9. USB interface 10. RS-485 11. DC 12V |
