Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Dahua | Model Number: | SD6AW320-HN |
Type: | IP Camera | Style: | Dome Camera | Sensor: | CMOS |
Technology: | Pan / Tilt / Zoom | Special Features: | Waterproof / Weatherproof |
Product Description
Most Innovative Dahua 3MP 20X Network IR PTZ Support Wipe HD IP PTZ Camera
HD IP PTZ Camera
Specification-- HD IP PTZ Camera
Model | DH-SD6AW320-HN | |
Camera | ||
Image Sensor | 1/3" CMOS | |
Effective Pixels | 2048(H) x 1536(V), 3 Megapixels | |
Scanning System | Progressive | |
Electronic Shutter Speed | 1/1 ~ 1/30,000s | |
Min. Illumination | Color: 0.05LuxF1.6; B/W: 0.005LuxF1.6 | |
S/N Ratio | More than 50dB | |
Video Output | BNC(1.0Vp-p/75Ω), PAL / NTSC | |
Camera Features | ||
Day/Night | Auto(ICR) / Color / B/W | |
Backlight Compensation | BLC / HLC / WDR(120dB) | |
White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
Gain Control | Auto / Manual | |
Noise Reduction | Ultra DNR (2D/3D) | |
Privacy Masking | Up to 24 areas | |
Digital Zoom | 16x | |
Defog | N/A | |
Wipe | Support | |
Lens | ||
Focal Length | 4.7mm~94.0mm(20x Optical zoom) | |
Max Aperture | F1.6 ~ F3.5 | |
Focus Control | Auto / Manual | |
Angle of View | H: 55.4° ~ 2.9° | |
Close Focus Distance | 10mm~ 1000mm | |
PTZ | ||
Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -10° ~ 90°, auto flip 180° | |
Manual Control Speed | Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s | |
Preset Speed | Pan: 240° /s; Tilt: 200° /s | |
Preset | 80(DH-SD), 255(Pelco-P/D) | |
PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |
Speed Setup | Human-oriented focal length/ speed adaptation | |
Power up Action | Auto restore to previous PTZ and lens status after power failure | |
Idle Motion | Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period | |
Time Task | Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time | |
Protocol | DH-SD, Pelco-P/D (Auto recognition) | |
IR Distance | 150m (2 near IR LED+ 8 far IR LED) | |
Video | ||
Compression | H.264 / MJPEG | |
Resolution | 3M(2048´1536)/1080P(1920×1080) /720P(1280×720) / D1(704×576/704×480)/ CIF(352×288/352×240) | |
Frame Rate | Main Stream | 3M(1~15fps)/1080P/720P(1 ~ 25/30fps) |
Sub Stream | D1/CIF(1 ~ 25/30fps) | |
Bit Rate | H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps | |
Audio | ||
Compression | G.711a / G.711u(32kbps)/ PCM(128kbps) | |
Interface | 1/1 channel In/Out | |
Network | ||
Ethernet | RJ-45 (10/100Base-T) | |
Protocol | IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x | |
ONVIF | ONVIF Profile S | |
Max. User Access | 20 users | |
Smart Phone | iPhone, iPad, Android, Windows Phone | |
Auxiliary Interface | ||
Memory Slot | Micro SD, Max 64GB | |
RS485 | 1 | |
Alarm | 7/2 channel In/Out | |
General | ||
Power Supply | AC24V/3A(±16%) | |
Power Consumption | 20W, 43W (IR on, Heater on) | |
Working Environment | -40ºC ~ 70ºC / Less than 90% RH | |
Ingress Protection | IP66 | |

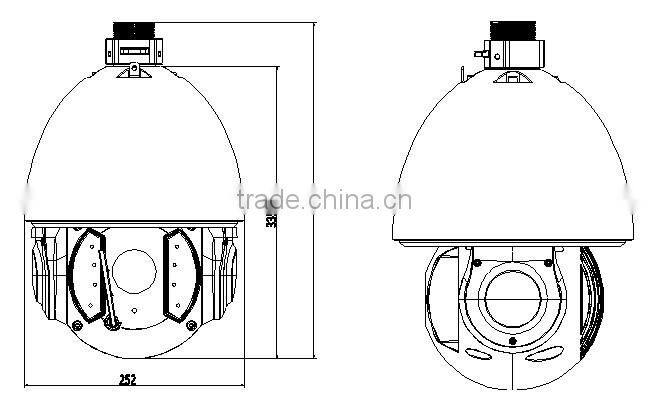

Dimensions | Φ252(mm) x 385 (mm) | |
Weight | 6.75kg |
Features-- HD IP PTZ Camera
>Powerful 20x optical zoom
>H.264 & MJPEG dual-stream encoding
>Max. 15fps@3Mp, 25/30fps@1080p resolution
>WDR, Day/Night(ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC,BLC
>Support Wipe
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>Max 240°/s pan speed, 360° endless pan rotation
>Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
>Built-in 7/2 alarm in/out
>Support intelligent 3D positioning with DH-SD protocol
>Micro SD memory, IP66
>IR Distance up to 150m

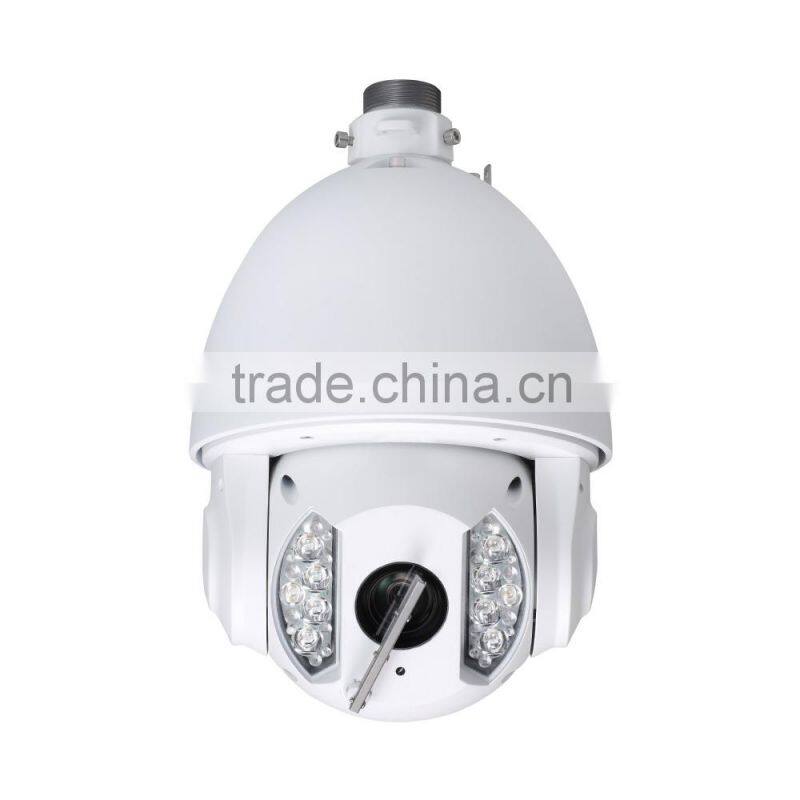

Real shot of HD IP PTZ Camera
Considerate Service-- HD IP PTZ Camera
OEM and ODM are both acceptable
Sample order is acceptable
Payment terms: Paypal, T/T, Western Union
Warranty: 2 YEARS
Certification: CE, FCC, RoHS
Lead time: 3-25 days since purchasing date
