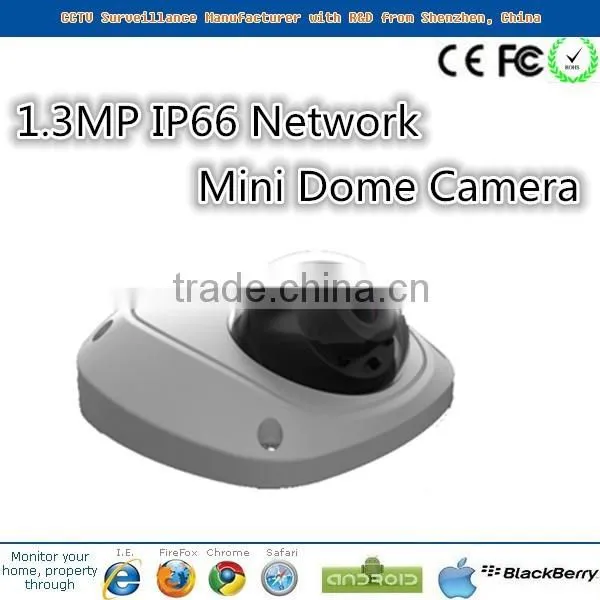

1.3MP IP66 Network Mini Dome Camera HD720p Hikvision Camera DS-2CD2512F-I

Name: 1.3MP IP66 Network Mini Dome Camera HD720p Hikvision Camera DS-2CD2512F-I
Brand: Hikvision
Price: Negotiable

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	Hikvision	Model Number:	DS-2CD2512F-I
Type:	IP Camera	Style:	Dome Camera	Sensor:	CMOS
Technology:	Infrared	Special Features:	Waterproof / Weatherproof

Product Description

1.3MP IP66 Network Mini Dome Camera HD720p Hikvision Camera DS-2CD2512F-I

Product Features

>HD720p Video

>Up to 10m IR
>DWDR/3D DNR/BLC
>Support On-board Storage, up to 64GB
>Built-in Mic
>Audio/Alarm IO optional (-S)

>EN50155, EN50102, IK08

Specifications

Camera
Image Sensor:	\|	1/3" Progressive Scan CMOS
Min. Illumination:	\|	0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
Shutter time:	\|	1/3 s to 1/100,000 s
Lens:	\|	4mm@ F2.0 (2.8mm, 6mm optional) Angle of view: 92.5°(2.8mm), 73.1°(4mm), 46°(6mm)
Lens Mount:	\|	M12
Adjustment Range:	\|	Pan: -30°-30°, Tilt: 0~80°, Rotation: 0-360°
Day& Night:	\|	IR cut filter with auto switch
Wide Dynamic Range:	\|	Digital WDR
Digital noise reduction:	\|	3D DNR
Compression Standard
Video Compression:	\|	H.264/MJPEG
Video bit rate:	\|	32Kbps~12Mbps
Audio Compression:	\|	-S: G.711/G.722.1/G.726/MP2L2
Dual Stream:	\|	Yes
Max. Image Resolution:	\|	1280x960
Frame Rate:	\|	50 Hz: 25 fps (1280 × 960), 25 fps (1280 x 720), 25 fps (704 x 576), 25 fps (640 x 480) 60 Hz: 30 fps (1280 × 960), 30 fps (1280 x 720), 30 fps (704 x 576), 30 fps (640 x 480)
Image Settings:	\|	Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC:	\|	Yes, zone configurable
ROI:	\|	Support
Network
Network Storage:	\|	NAS (Support NFS,SMB/CIFS)
Alarm Trigger:	\|	Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols:	\|	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Security:	\|	User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask
System Compatibility:	\|	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Communication Interface:	\|	1 RJ45 10M / 100M Ethernet interface
On-board storage:	\|	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:	\|	Yes
General
Operating Conditions:	\|	-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply:	\|	12 VDC ± 10%, PoE (802.3af)
Power Consumption:	\|	Max. 5 W
Impact Protection:	\|	IK08 Protection Level
Weather Proof:	\|	IP66
IR Range:	\|	10 meters
Dimensions:	\|	99.3×96.7×52.8mm
Weight:	\|	600g (1.32 lbs)
