Specifications
cctv camera and dvr kitHD Network Mini Dome Cam
IPC-HD2100, 1.3MP
8chs D1 1080P NVR
NVR3208, ONVIF

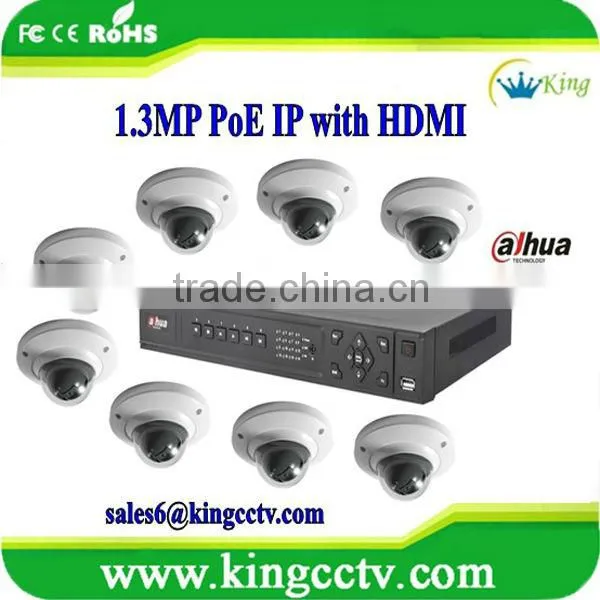

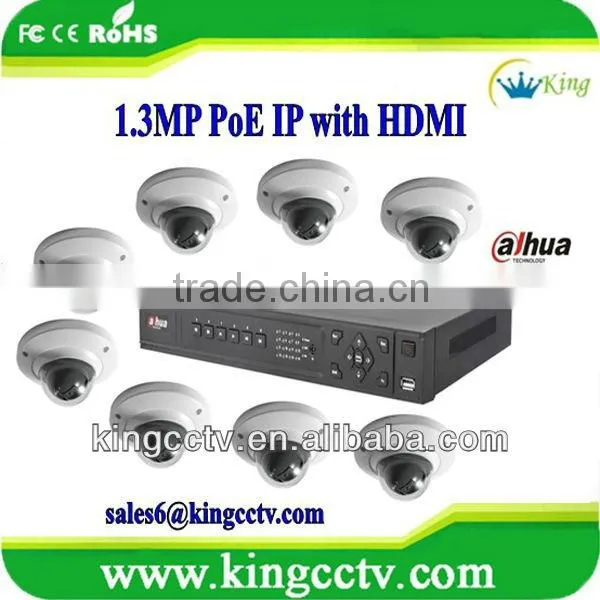

cctv camera and dvr kit : IPC-HD2100 & NVR3208
IPC-HD2100*8
Specifications
Model |
DH-IPC-HD2100P |
DH-IPC-HD2100N |
General | ||
Processor |
TI DaVinci Series DSP |
|
Operating System |
Embedded LINUX |
|
Resource |
Simultaneous remote monitoring, local recording and remote control |
|
User Interface |
WEB, CMS(DSS/ PSS), DMSS, NVR |
|
Camera | ||
Image Sensor |
1/3” 1.3 Megapixel Aptina CMOS |
|
Effective Pixels |
1280 (H)×960(V) |
|
Electronic Shutter |
Auto/Manual, 1/3~1/10000s |
Auto/Manual, 1/4~1/10000s |
Mini. Illumination |
0.1LUX/F1.2(Color), 0.05LUX/F1.2(B/W) |
|
Signal Noise Ratio |
>50dB |
|
Gain Control |
Auto/Manual |
|
White Balance |
Auto/Manual |
|
Day/Night |
Electrical Day/Night |
|
Lens Mount |
M12 |
|
Lens |
3.6mm (2.8mm/6mm/8mm optional) |
|
Video | ||
Video Compression |
H.264/MJPEG/JPEG |
|
Image Resolution |
1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) |
|
Encoding Speed |
1.3M (1~15fps)+ D1(1~15fps) |
1.3M (1~15fps)+ D1(1~15fps) |
720P(1~25fps)+ D1(1~25fps) |
720P(1~30fps)+ D1(1~30fps) |
|
Bit Rate |
128K~8192Kbps |
|
Snapshot |
Fastest 1fps JPEG capture |
|
Video Format |
PAL |
NTSC |
Network | ||
Ethernet |
RJ-45 (10/100Base-T) |
|
Network Functions |
HTTP, TCP/IP, IPv4/IPv6, ARP, IGMP, ICMP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, UPNP, NTP, Bonjour, SNMP, Onvif |
|
Remote Operation |
Monitor, PTZ control, Playback, System setting, File download, Log information, Maintenance & Upgrade |
|
Environmental | ||
Power Supply |
DC12V, PoE |
|
Power Consumption |
Max.1.5W |
|
Operating Environment |
-10°C~+50°C, 10%~90% |
|
Dimension |
54mm x ¢110mm |
|
Weight |
0.25kg |
|
NVR3208*1
Specifications
Model |
DH-NVR3204 |
DH-NVR3208 |
DH-NVR3216 |
System | |||
Main Processor |
High performance Dual-core embedded microprocessor |
||
Operating System |
Embedded LINUX |
||
System Resources |
Pentaplex function: live, recording, playback, backup & remote access |
||
Control Mode |
Front panel, USB mouse, IR remote control, Keyboard, Network |
||
Video | |||
IP Camera Input |
4ch@D1 / 2ch@720P /1ch@1080P |
8ch@D1 / 4ch@720P / 2ch@1080P |
16ch@D1 / 8ch@720P / 4ch@1080P |
IP Camera Supported List |
Dahua, Arecont Vision, AXIS, Canon, Dynacolor, Panasonic, SAMSUNG, SANYO, SONY, ONVIF |
||
Output |
1 HDMI(video & audio), 1 VGA |
||
Display | |||
Display Split |
1/4 |
1/4/8/9 |
1/4/8/9/16 |
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 |
||
Tour Display |
Support |
||
Privacy Masking |
4 self-defined four-sided zones for privacy masking for each camera |
||
OSD |
Camera title, time, video loss, camera lock, motion detection, recording |
||
Recording | |||
Compression |
H.264 / MPEG4 |
||
Recording Resolution |
1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480) |
||
Max Recording Speed |
100/120fps@D1, 50/60fps@720P , 25/30fps@1080P |
200/240fps@D1, 100/120fps@720P , 50/60fps@1080P |
400/480fps@D1, 200/240fps@720P , 100/120fps@1080P |
Recording Bit Rate |
Up to 8Mbps |
Up to 16Mbps |
Up to 32Mbps |
Recording Quality |
CBR, VBR(1~6 level, level 6 is the best) |
||
Recording Mode |
Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop |
||
Recording Priority |
Manual >Alarm >MD >Regular |
||
Recording Interval |
1~120 min (default: 60 min) |
||
Video Detection & Alarm | |||
Trigger Events |
Recording, PTZ movement, Tour, Alarm, Email, FTP, Buzzer & Screen tips |
||
Motion Detection |
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest) |
||
Video Loss & Camera Blank |
Support |
||
Alarm Input |
4 channel |
8 channel |
16 channel |
Relay Output |
3 channel |
||
