Specifications
4 Channel camera security dvr Full D1 1U Standalone DVR0404HE-AN1)4chs Net DVR
2)400fps(P)/480fps(N)
3)Network Support
4)Ca

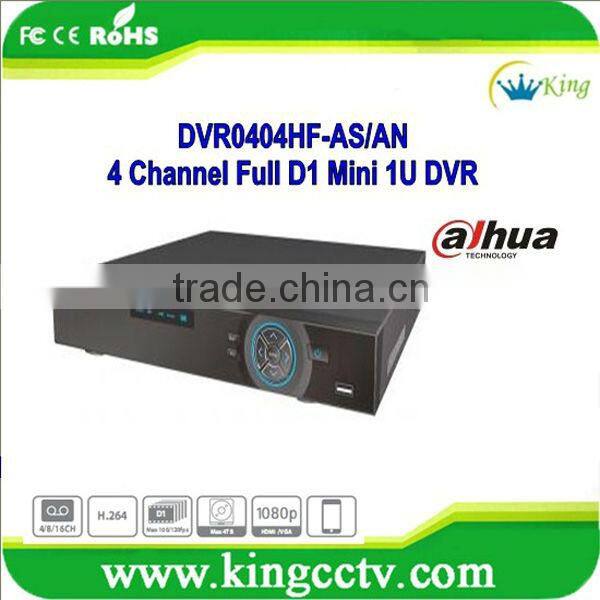

4 Channel camera security dvr Full D1 1U Standalone DVR0404HE-AN
Main Features of Standalone DVR:
(1) The video compression is H. 264, supports VBR as well as CBR
(2) Can set up video picture quality and compression yard
(3) Adopt high performance criterion of embedded real-time multiple operating system (RTOS) and embedded processor
(4) All the codes are embedded in FLASH that the system is steadier and will not be interfered by external factors such as virus etc.
(5) Audio and alarm inputs / outputs
(6) Support PAL/NTSC4. 43/NTSC3. 58 video signals
(7) Recording resolution:352x240 (NTSC),352x288 (PAL)
(8) 6 kinds of record image quality for choosing
(9) Support TCP/IP agreement (support ARP, RARP, IP, TCP, PPPOE, DHCP, etc.)
(10) Support PPPOE, dial automatically again at the same time and support domain name mapping
(11) Support Manual video, timing video, motion detection and warning video
(12) USB Port:USB function for H6008AL and H6016AL
(13) Client PC can record compressed data stream, support record audio and video signals into the computer directly through Internet
(14) No.16 host computer allocate to 4 IDE channel separately, can drive 8 IDE hard disk at the same time
(15) Port of SATA at a high speed, more convenient to join
Kits Cautions:
1. Check electricity at the place you want to install the DVR unit is stable and meets our electricity requirements. Unstable electricity will cause malfunction of the unit or give critical damage to the unit.
2. Several chips on the main board of the DVR unit and hard disk drive inside the unit generate heat, and it must be properly discharged. Do not put any objects just beside exhaust port on the left side of the unit and do not close up an opening on the right side of the unit.
3. Put the DVR unit at well-ventilated place and do not put heat-generating objects on the unit. When it is installed inside 19 inch mounting rack together with other devices, please check built-in ventlation fan of the rack is properly running.
Item Includes:
1 x 16chs H.264 Digital Video Recorder: DVR HK-S8016F
1 x Manual for S8016F
1 x Speed Instruction Manual for DVR HK-S8016F
1 x CD software for DVR HK-S8016F
1 x Remote Controller
8 x 1/3" inch Sony Chip, 420TVL, Security CCTV Wired CCD Color Dome Camera:HK-BG312
4 x 1/3" inch Sony Chip, 420TVL, Security CCTV Wired CCD Color IR Dome Camera:HK-S312
3 x 1/3" inch Sony Chip, 420TVL, Security CCTV Wired CCD Color 50M IR Camera:HK-H312
1 x 1/4" inch Sony Chip,480TVL,270 zoom function,High Speed Dome Cameras:HK-GV8272.
12 x 12V1A DC Power Supplier
3x 12V1.5A DC Power Supplier
1x 24V2A AC Power Supplier
DVR Specifications:
Model/Item |
HK-S8016F |
||
| Compression Format | H. 264, supports VBR as well as CBR |
||
| Operating system | Embedded real-time operating system (RTOS) |
||
| Video Input | BNC x 16,1.0VP-P,75¦¸ |
||
| Video Output | A composite video output,A VGA output |
||
| Audio Input | -8dB---22k, RCA x 16 |
||
| Audio Output | -8dB---92dB, RCA x 1 |
||
| Display Frame Rate | 704x576 (PAL), 704x480 (NTSC) |
||
| Record Resolution | 352*288(PAL) |
||
| Display Frame Rate | 400fps(PAL) 480fps(NTSC) |
||
| Recording Frame Rate | 400fps(PAL) 480fps(NTSC) |
||
| USB | YES |
||
| Alarm Input | NO or NC, 9CH |
||
| Alarm Output | NO or NC, 4CH |
||
| Recording Mode | manual video,timing video,motion detection video and warning video |
||
| Network Interface | RJ45 10M/100M(LAN, Internet),Support TCP/IP agreement,PPPOE |
||
| PTZ Control | RS485 |
||
| HDD | Support 8 SATA |
||
| Backup | SATA,Network |
||
| Storage Temperature& Humidity | -20--65 °C; / 20-95% RH (No Condenser) |
||
| Operation Temperature& Humidity | -10--55 °C; / 20-80% RH (No Condenser) |
||
| Power Adapter | 220/110V, 50/60HZ |
||
| Dimension (L x W x H) | 440x435x97 mm |
||
| Weight | Gross weight:10kg ; Net weight:8kg |
||
