Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car DVR > Complete Cctv System H.264 4CH LCD DVR Combo HK-S1504M

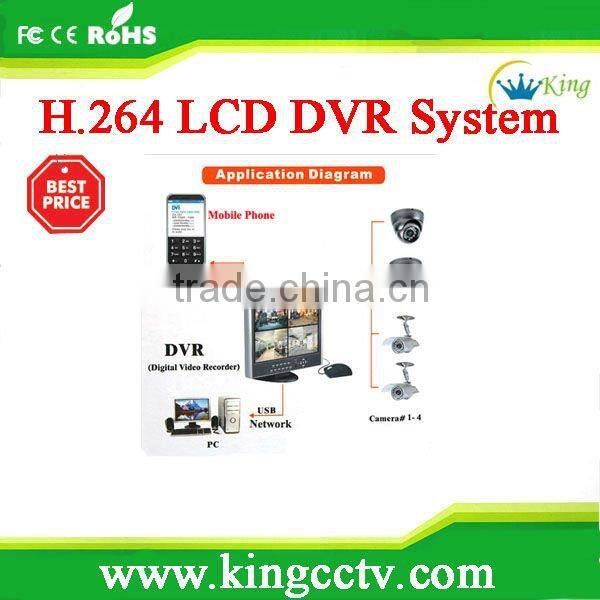

Complete Cctv System H.264 4CH LCD DVR Combo HK-S1504M

Name: Complete Cctv System H.264 4CH LCD DVR Combo HK-S1504M
Brand: Hyking
SKU: 127989667

Complete Cctv System H.264 4CH LCD DVR Combo HK-S1504M thumbnail-1

Complete Cctv System H.264 4CH LCD DVR Combo HK-S1504M photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Hyking

Model Number:

HK-S1504M+IR Camera

Contact Supplier Request Quote Chat Now

Shenzhen KingCCTV Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Hyking

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Hyking

Model Number HK-S1504M+IR Camera

Specifications

1).complete cctv system
2).Support 3G Mobile phone
3).15" LCD with in-built DVR function.
4).4 Channel CCTV DVR System

complete cctv system H.264 4CH LCD DVR Combo HK-S1504M

Main Functions:

1. Ideal for business, office & home.
2. Do-it-Yourself protection, safety&security Kit.
3. Motion detection feature only records when there is movement.
4. USB connection for backup feature to record PC used files.
5. State of the art DVR with complete functionality.
6. 4 IR Camera's give complete coverage for monitor.
7. 15" LCD with in-built DVR function.

Main Features:

1. 4CH 15" LCD H.264 triplex real time Economical DVR
2. H.264 compression.
3. Graphical interface, easy to use.
4. Support USB mouse.
5. Support 3G mobile phone surveillance and E-mail function.
6. Backup file supports windows media player.
7. Support network file share function.
8. Motion Detection with area setting.
9. Support 4CH simultaneous playback
10. Support dual coding stream.
11. PC playback & backup via built-in USB 2.0 port.
12. Time Schedule Record /Motion triggered record.
13. IR remote control included.
14. Password protection.

Kits Cautions:

1. When install Hard Disk, make sure the HDD is set to MASTER.
2. Do not pull out HDD when DVR is running.
3. To reduce the risk of electrical shock, do not open covers, no users serviceable pars inside. Refer servicing to qualified service personnel.
4. To prevent fire or shock hazard, do not expose units not specifically designed for outdoor use to rain or moisture.

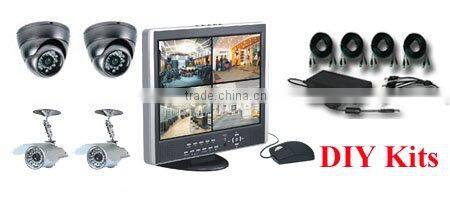

Item Includes:

1 x 4CH H.264 Standalone DVR With LCD Monitor
4 x 1/3" inch Sony Chip, 420TVL, Security CCTV CCD IR Color Camera
2 x Special Camera Bracket
1 x 12V5A Special Camera Power
1 x 5CH Power Distribution Wire
1 x Power Adapter 12V5A for LCD DVR
1 x Software CD
1 x User' s Manual and warranty card
1 x USB mouse
1 x IR Controller
1 x USB Cable
4 x 18m BNC Wire

DVR Specifications:

Model/Item	HK-S1504M
Compression Format	H. 264
Operation System	Embedded real-time operating system (RTOS)
Video Input	NTSC / PAL /SECAM: BNC 4CH In / 1CH Out
Audio Input	In: RCA 1CH Out: RCA 1CH
LCD Display	15" color LCD ,4:3,CCFL
Display Resolution	NTSC : 720 x 480; PAL: 720 x 576
Recording Resolution & Frame Rate	NTSC: 120fps@CIF PAL: 100fps@CIF
Playback Resolution & Frame Rate	NTSC: 120fps/4CH(CIF) PAL: 100fps/4CH(CIF)
Compression Format	Video:H.264 Baseline Profile, Audio: ADPCM
Hard Disk Capacity	Up to 1TB, SATA interface HDDx1
Recording Mode	Manual/ schedule/sensor activated/motion detection
Sensors, Alarm	4 Input, 1 Output
USB	USB2.0
Network Interface	1 RJ45 10/100Mbps Ethernet Connector
Media Backup	1 USB 2.0 port for USB flash disk, HD
PTZ Control	RS-485
IR Remote Control Unit	YES
USB Mouse	YES
Backup	USB2.0 / Remote Backup
Operation Temperature& Humidity	-0--40 °C; / 10-90% RH (No Condenser)
Power Adapter	DC 12V5A
Dimension (L x W x H)	359.4x312x52mm
Weight	Gross weight:5kg ; Net weight:4kg
