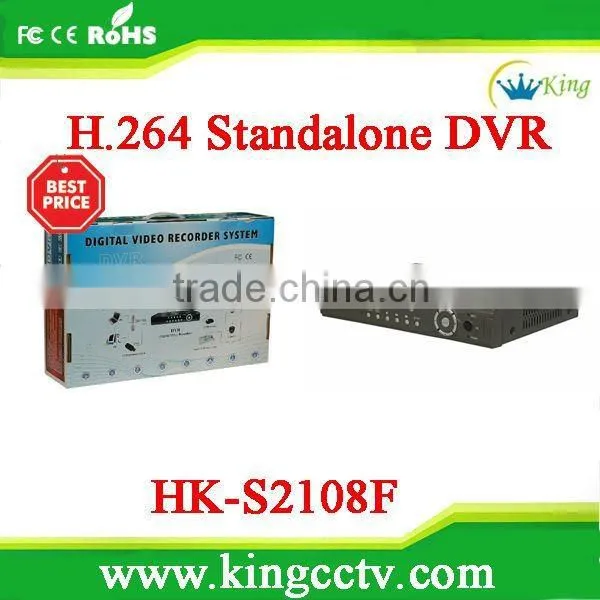

Hyking Dvr h 264 Realtime DVR Standalone DVR 8Ch H.264 Network DVR 3G HK-S2108F

Hyking Dvr h 264 Realtime DVR Standalone DVR 8Ch H.264 Network DVR 3G HK-S2108F thumbnail-1
Hyking Dvr h 264 Realtime DVR Standalone DVR 8Ch H.264 Network DVR 3G HK-S2108F photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hyking
Model Number:
HK-S2108F
Contact Supplier Request Quote Chat Now
Shenzhen KingCCTV Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Hyking
Model Number HK-S2108F

Specifications

Stand alone DVR 8 Ch H.264 Embedded DVR
1)Support 3G Mobile
2)CIF,Half D1,D1 DVR
3)Low lost DVR



Hyking dvr h 264 realtime DVR standalone DVR 8Ch H.264 Network DVR HK-S2108F

Hyking dvr h 264 realtime DVR standalone DVR 8Ch H.264 Network DVR 3G HK-S2108F


 Features

 (1) H.264 compression algorithm ideal for standalone DVR
(2) Support Multi-language: English,Italian,Turkish,Russian,French,Portuguese,Spanish, Polish, Hebrew, Thai,Traditional Chinese,Japanese.
(3) New standard for professional DVR with high performance and competitive price.
(4) Support 3G Mobilephone Surveillance with Symbian , Windows CE,Iphone , Google Android
(5) Realtime live display up to 4/8/16 camera with 720P high definition.
(6) 1,2,4,8,16 channel simultaneous realtime playback
(7) Support CIF realtime recording, support HD1,D1 non realtime.
(8) Dual encoding streams flexible for network transmission and mobile phone monitoring.
(9) Multiple function: Live, Recording, Playback, Backup & Remote access.
(10) Smart video detection: motion detection, camera blank, video loss.
(11) Powerful network software:built-in web server, multi-DVR client, MSS(mobile phone surveillance software) & CMS.
(12) Supports SATA HDD (maximal value of each hard disk is up to 2TB)

Specifications

Model/Item
HK-S2104F
 HK-S2108F HK-S2116F
Compression Format
H.264 / G.711
Operating system
Embedded LINUX
Main Processor
High-performance embedded microcontroller
Control Mode
Front panel, USB mouse, IR remote control, Keyboard,Network
System Resources
Pentaplex function: live, recording, playback, backup & remote access
Video Input

BNC x 4
1.0VP-P,75Ω
BNC x 8
1.0VP-P,75Ω
BNC x 16
1.0VP-P,75Ω
Video Output
1 TV, BNC(1.0Vp-p, 75Ω), 1 VGA
Video Standards
PAL(100f/s)
NTSC(120f/s)
PAL(200f/s),
NTSC(240f/s)
PAL(400f/s),
NTSC(480f/s)
Video Resolution
D1/4CIF(704*576/704*480),HD1(704*288/640*240), CIF(352*288/352*240)
Main Stream Record Speed
CIF:(1-25/30f/s)
HD1:(1-12/15f/s)
D1:(1-5f/s/ch)
CIF(1-25/30f/s)
HD1(1-12/15f/s)
D1(1-5f/s/ch)
CIF(1-25/30f/s/ch)
Extra Stream Speed
QCIF(1~25/30fps)
Video Image Quality
Super Best, Well, Good,Medium, Normal and bad
Recording Mode
Manual / Timer / Motion
Audio Input/Output
4 audio input, 1 audio output (RCA)
 2 audio input, 1 audio output
Hard Disk Storage
1 SATA HDD (capacity up to 2TB)
 2 SATA HDD
Alarm Input/Output
4 alarm input,1alarm output
Multiplex Operation
Live display / record / playback / backup / network operations
Playback mode
Multiple slow and rapid play speeds, manual and single-frame play modes,and support positioning the time by driving the sliding bar
Backup Device
USB 2.0 flash drive / USB moving Hard disk / Network
Pre-alarm Recording
recording for 5 seconds before alarming
Network Protocol
TCP/IP, PPPOE and DDNS
Ethernet
10/100 Base-T. Supports remote control and live view via Ethernet
Web Interface
Internet Explorer (5 users access simultaneously)
Operating System: Windows Vista / XP / 2000
VGA Interface
Built-in (optional)
IR Remote Control
YES (IR receiver built-in)
Video Loss Detection
YES
Video Adjustable
Hue / Saturation / Contrast / Brightness
PTZ Control
YES
USB Mouse
YES
Power Source
12V DC(¡À10%)
Key Lock (Password Protection)
YES
System Recovery
System auto recovery after power failure
Dimensions (mm)
1U,315mm(W)x52mm(H)x224mm(D)
2U, 440mmx460mmx89mm
Working Temperature
-10~+55 degree
Working Humidity
10%- 90%
Weight
Gross weight:3.0kg(without HDD)



 Application

DVS real host,super-network functions,Support IE browser centralized monitoring and CMS Software for multiple DVR from diferent place (up to 64 DVR view per screen) simultaneously, per screen can monitoring and playback from multiple DVR images, thorough solve most of the DVR can only manage a single DVR,as well as monitoring and playback can not be a problem at the same time





More details about PTZ camera, CCTV camera, IP camera, DVRs , Standalone DVR, DVR board and DVR card

,please contact us.
