Dvr H.264 960H HD H.264 3G Network DVR With Loop Out: HK-S8608F hd Dvr Manual

Dvr H.264 960H HD H.264 3G Network DVR With Loop Out: HK-S8608F hd Dvr Manual thumbnail-1
Dvr H.264 960H HD H.264 3G Network DVR With Loop Out: HK-S8608F hd Dvr Manual photo-1
US$ 400 - 470 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hyking
Model Number:
HK-S8608F
Contact Supplier Request Quote Chat Now
Shenzhen KingCCTV Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Hyking
Model Number HK-S8608F

Specifications

cctv dvr: HK-S8608F

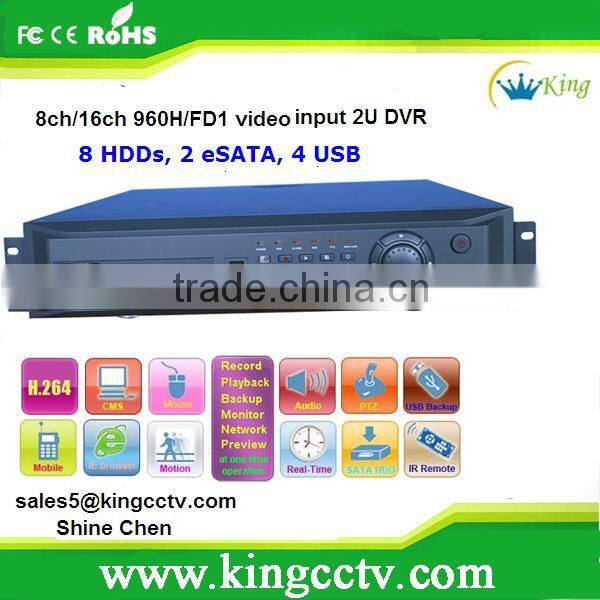

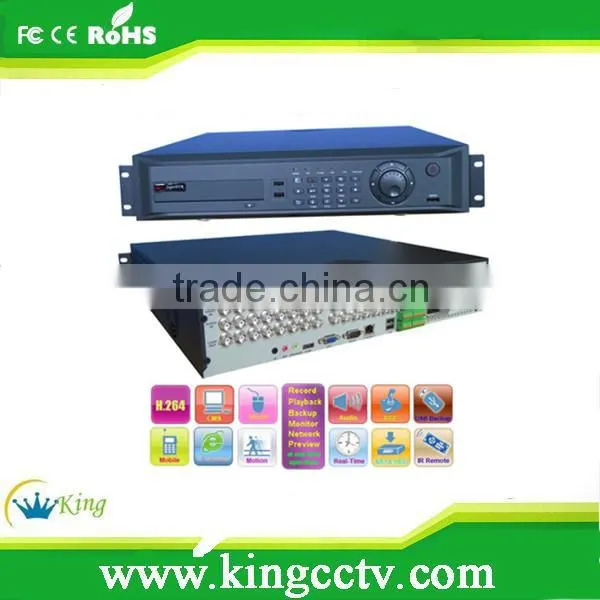

-8/16 channel 960H/FD1 video input 2U DVR
-Support 8 HDDs, 2 eSATA
-8CH/16CH Loop out
-3G Network Access

dvr H.264 960H HD H.264 3G network DVR with Loop out: HK-S8608F hd dvr manual

dvr H.264 960H HD H.264 3G network DVR with Loop out: HK-S8608F hd dvr manual





Features:

  1. The video compression is H.264, supports VBR as well as CBR, selectable video picture quality
  2. 8/16 channel 960H/FD1 video input 2U DVR
  3. Support 8 HDDs, 2 eSATA, 4 USB Interfaces
  4. Support Icon Interface, User Friendly & Easy-Operate
  5. Support AVI Backup, Snapshot, Record Lock, Record Cutting
  6. Quick Backup when Playback
  7. Support 3G Network Access
  8. Max 8 Network Accessing Users
  9. Support Eliminating Bad Disk, HDD Record Storage Group, HDD R/W Control
  10. Support HDMI/VGA/BNC/SPOT/Loop Simultaneous Output
  11. Support PTZ, Manual Alarm, Alarm In/Out
  12. Support CMS, Web View and Mobile View(IPAD, Iphone & Android)
  13. IR Remote Extension Cord
  14. Support Multiple Browsers: FireFox, Chrome, Internet Exploerer, Safari
  15. Build-in CD/DVD RW
  16. With 8CH/16CH Loop out

Spcifications:





Model No. HK-S8608F HK-S8616F
Compression Format H. 264, supports VBR as well as CBR
Operating system Embedded LINUX
Video Input 8CH BNC(1.0VP-P,75Ω) 16CH BNC(1.0VP-P,75Ω)
Video Output 1 BNC, 1 VGA,1 HDMI,1 SPOT,8/16 Loop Support
Audio Input 8CH BNC 16CH BNC
Audio Output 1ch BNC
Audio Compression G.711A
Audio Bidirectional Talk 3.5mm MIC Input Interface
Alarm Input 8CH 16CH
Alarm Output 4ch
Preview Resolution 960H: PAL(960*576), NTSC(960*480); FD1: PAL(704*576), NTSC(704*480); VGA/HDMI: 1920*1080
Preview Display 1ch/ 4ch/ 8ch/ 9ch 1ch/ 4ch/ 8ch/ 9ch/ 12ch/ 16ch
Preview Privacy Masking 4 zones Maximum, On DVR
Recording Resolution 8ch FD1/CIF/960H/Q960H 16ch FD1/CIF/960H/Q960H
Record Mode Manual, Schedule, Motion, Alarm
Record Interval Pre-record: 5~30 sec., Post-record: 0~180sec.
Playback Channel 8ch/16ch 960H Full Channels Realtime Playback
Playback Search Mode Time, Date, Record Mode, Smart Search,Quick Playback
Playback Privacy Masking 4 Zones Maximum, On DVR and PC
3G Network Support 3G Modem

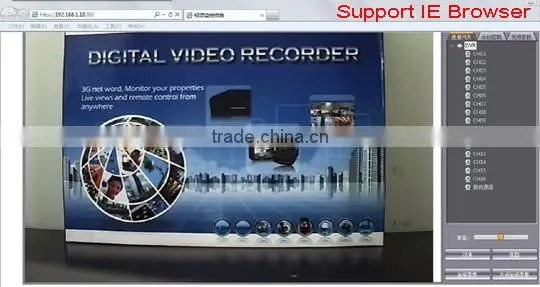

Remote Operation WEB( FireFox, Chrome, Internet Exploerer, Safari)
Mobile Support Support (IPhone, Andorid, Ipad)
Backup USB Disk/ USB HDD/ USB CD&DVD-RW / eSATA / Internal SATA burner / Network Download
HDD 8 HDD(Max support 4TB each), 2 eSATA(Front 1,Back 1)
Network Interface 1 RJ-45 10/100M/1000M adaptive Ethernet Interface
USB Interface 4 Interfaces( Front 2 & Back 2)
Auxiliary Interface 1 RS-485(FDX), 1 RS232, 1 IR Extension Cord
Storage Temperature& Humidity -20~65°C/ 10~90% RH (No Condenser)
Operation Temperature& Humidity -10~45°C / 15~85% RH
Power Adapter 220/110V, 50/60HZ
Power 67W 71W
Dimension(L*W*H) 440 * 440 * 88mm
Weight Gross weight, 10kg; Net weight, 7.3kg



Applications

    • 960H DVR, H.264 compression, can display up to 16 Cameras, support 8ch/16ch 960H Full Channels Realtime Playback, Recommended installation areas are Securities Companies, Change Booths, Pawnshops, Jewerlers, Galleries, Exhibition Halls, Department Stores, Convenience Stores, Discount Offices, Hospitals, Police Stations, Subway Stations, Airports, Banks, etc
  • Support Google Chrome browser

dvr H.264 960H HD H.264 3G network DVR with Loop out: HK-S8608F hd dvr manual

dvr H.264 960H HD H.264 3G network DVR with Loop out: HK-S8608F hd dvr manual
