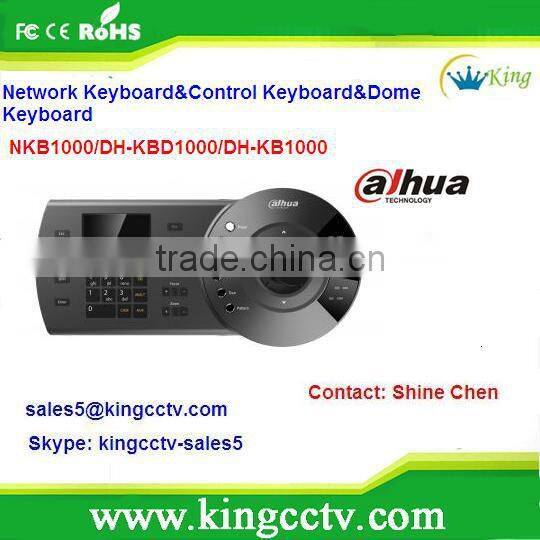

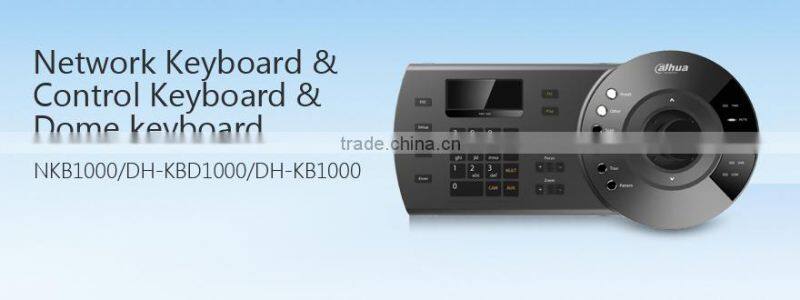

Dahua Network Keyboard&Control Keyboard&Dome Keyboard for PTZ Camera: DH-KBD1000
Dahua Network Keyboard& Keyboard Controller&Dome Keyboard for PTZ Camera: DH-KBD1000
Features: Dahua Control Keyboard
>Keyboard to Control
-Dahua High Speed Dome (all models)
-Dahua Standalone DVR (KBD1000 & NKB1000 only)
-Dahua Network High Speed Dome (NKB1000 only)
-Network Video Server (NKB1000 only)
>Connection
-NKB1000: RS485, RS422, USB, RS232 & Network
-KBD1000: RS485, RS422, USB & RS232
-KB1000 : RS485, RS422 & USB
>Three Dimensional Joystick Control of PTZ Functions
>Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Control
>Auxiliary Functions
>On-Screen Menu & User Operation Procedure Tips
>Connect to SmartPSS via USB (NKB1000 only)
Specification: Keyboard Controller
| Model | DH-NKB1000 | DH-KBD1000 | DH-KB1000 |
| General | |||
| Keyboard Keypanel | Electromechanical | ||
| Joystick | vector-solving, with twisting, return to-center head | ||
| Keyboard Connector | RJ-45,RS232,RS485,RS422,USB, | RS232,RS485,RS422 | RS485,RS422 |
| Keyboard Communication | Direct Mode, Network Mode | Direct Mode | Direct Mode |
| Direct Mode | Interface: RS232/RS485 DVR Protocol: DH2 Dome Protocol: DH-SD/PELCO-D/PELCO-P/PELCO-D1/PELCO-P1…… | ||
| Network Mode | Interface: RJ45 DVR/Network Dome: IP Address/Port/Protocol | N/A | N/A |
| Display | LCD, 75.2mm x 33.85mm | ||
| Environmental | |||
| Power Supply | Power adapter, input 100V~240V 50Hz / 60Hz,output DC12V/1000mA | ||
| Power Consumption | 5W | ||
| Working Temperature | -10℃~+55℃ | ||
| Working Humidity | 10%~90% | ||
| Atmosphere Pressure | 86kpa~106kpa | ||
| Dimension | 330mmx160(140)mmx37.5(21)mm (W×D×H) (height: 100mm including joystick) | ||
| Weight | 2.5KG | ||
