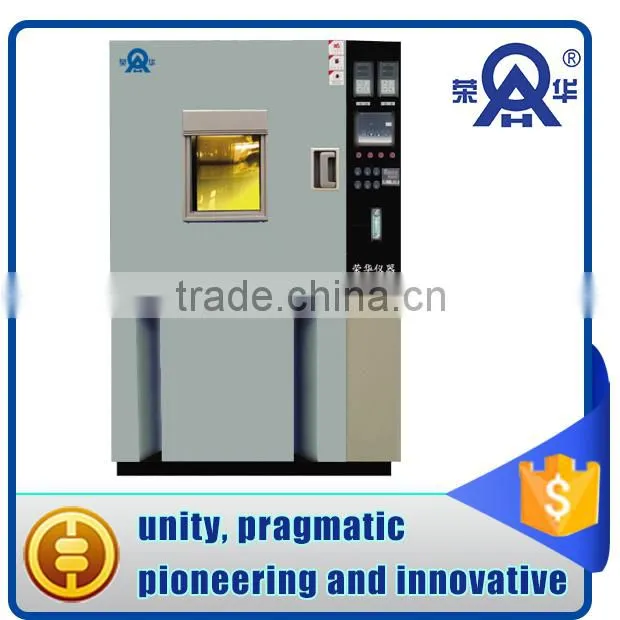

Help CenterLaboratory or Industrial Ozone Aging Test Box With High Quality for Cheap Price
Related Products
-
Laboratory or Industrial Alternating High and Low Temperature Test Box With High Quality for Cheap PriceUS$ 4,571 - 6,253MOQ: 10 Sets -
Laboratory or Industrial High and Low Temperature Test Box With High Quality for Cheap PriceUS$ 3,042 - 4,724MOQ: 10 Sets
-
Laboratory or Industrial High and Low Temperature Test Box Chamber With High Quality for Cheap PriceUS$ 2,260 - 5,106MOQ: 10 Sets
-
Electric High and Low Temperature Test Box With High Quality for Cheap PriceUS$ 2,431 - 4,801MOQ: 10 Sets
-
Laboratory or Industrial Salt Spray Test Box With High Quality for Cheap PriceUS$ 900 - 5,176MOQ: 10 Sets
General Introduction
Product use
Aging cracking test this series of products applicable to non-metallic materials and rubber products.
Box Structure
Adopting the NC machine tool processing molding, beautiful appearance, no reaction handle, easy to operate.
The bladder imported advanced stainless steel plate, outer box using A3 steel plate coating, increase the appearance and cleanliness.
Heating for heating type heating, heating speed, uniform temperature distribution.
The built-in 360 degree rotating sample holder.
Control system
The inlet of the ozone concentration control analyzer, with standard signal output and sampling.
Silent discharge tube type ozone generator (with the characteristics of low noise, high purity).
Temperature and humidity controller using imported digital display touch button, PID SSR microcomputer temperature controller.
Standard
GB/T7762-2003,
GB/T13642-92
Technical Parameters
model |
QL-l00 |
QL-250 |
QL-500 |
QL-010 |
|
Studio size D×W×H |
450x450x500 |
500x500x750 |
700x800x900 |
1000X1000XlOOO |
|
Size D×W×H |
1050x870xl560 |
ll20x1020x1810 |
1320xl250x1950 |
1600x1450x2080 |
|
|
performance index
|
temperature range |
0℃- 70℃ |
|||
|
Humidity range |
50% R . H-93% R . H |
|||
|
Ozone density |
0 - 500PPHm. 0 - 500PPm. 0 - l000PPm. |
|||
|
Temperature fluctuation |
±0.5℃ |
|||
Operation Control System |
Test device |
Dynamic and static (optional) |
|||
|
Frame speed |
360 degree rotating sample holder (speed: L / min) |
|||
|
The gas flow rate |
12 - 16rmm/S |
|||
|
Frame stretching rate |
5% - 80% |
|||
|
Frame stretching frequency |
0.5 -2Hz |
|||
|
temperature controller |
The import of LED digital P, I, D+S, S, R. integrated microcomputer controller |
|||
|
Time controller |
The high precision of hours, minutes, seconds time controller |
|||
|
Ozone concentration analysis |
Analysis of the inlet concentration regulator 4 - 20mA output, RS232 communication port |
|||
|
Ozone generator |
The import of silent discharge tube |
|||
|
safeguard
|
Leakage, short circuit, over temperature, motor overheating, overcurrent protection
|
||||
Why do you choose us?
12 months guarantee period from machine arriving date.
Aboudant spare parts in stock are available to provide.
Our technicians could be dispatched for overseas.
packing:wooden
Factory Overview
Chang Zhou rong hua Instrument Manufacturing Co., Ltd., is the larger instrument manufacturing company. Enterprises through the ISO9001 quality system certification, won the Jiang su Province quality credit
Enterprises (products) title. In recent years, gradually expand the scale of enterprises, technical force is abundant, believe in science and technology development and innovation is the survival and development of enterprises
Life force. The products are sold throughout the country, many times in the Ministry of health, the State Education Commission, the Ministry of agriculture and the world bank loan project bidding. And a large number of exports in Southeast Asia, Europe and America etc.
Country. All the staff always adhere to the "unity, pragmatic, pioneering and innovative" spirit of enterprise, based on the user oriented, scientific research institutions, national universities in China, China
International market, quality and efficiency, reputation and market share.
The main products are: Changzhou salt fog test box Changzhou constant temperature and humidity box of high and low temperature box at low temperature and high humidity test chamber high low temperature test box price salt fog test box
, high and low temperature test box, high-temperature oven, oven, high and low temperature heat test box, low temperature test box, constant temperature and humidity test chamber, temperature shock test chamber, fungus test box,
Fungal alternating test box, aging test box, ventilation aging test box, UV resistant climate chamber, xenon lamp weather resistance test box, swing pipe rain test device, waterproof
Test box, dust test chamber, antirust oil damp heat test box, ozone aging test box, alternating high and low temperature test chamber, incubators, oscillator, constant temperature water bath
Analysis, blender, electric sets, centrifuge, laboratory, environmental protection equipment and so on.
The company in line with high quality, high efficiency, the spirit of development, follow the "quality of survival, technology and development, market-oriented, service for the purpose of" business
The concept, to high-quality products, reasonable price, considerate service to every customer.
Is willing to cooperate wholeheartedly with the community, common development!
Parts In Line
1,Are you a factory or trading company?
A:We are a factory.
2,How can I get some samples?
A:We are honored to offer samples for your evaluation.
3,Where is your company location?
A:Our company is in Changzhou,Jiangsu province,China ,near Shanghai.We are happy to invite you to our company.
