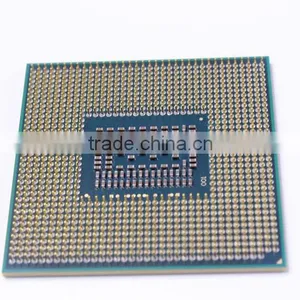

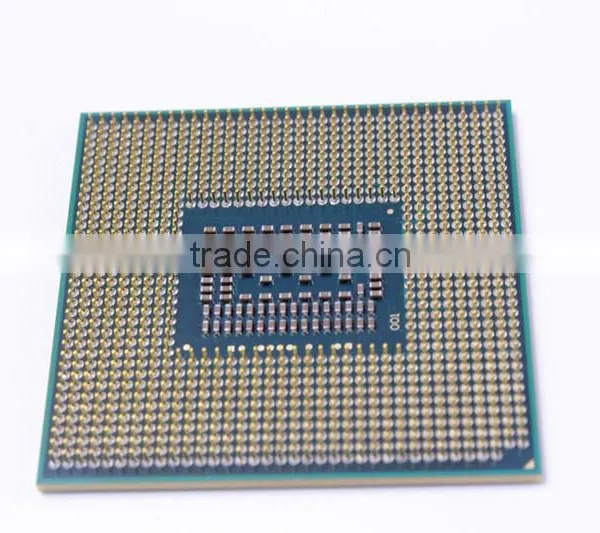

Help Center2015 Latest Intel Core I3-3110M Bga 2.40GHz CPU Processor
US$ 162 - 225
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Products Status:
Stock, Used
Application:
Laptop
Processor Brand:
Intel
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
INTEL I3-3217u Turn SR0N9 AV8063801058401 BGA Notebook CPU Full StockUS$ 89 - 92MOQ: 1 Piece -
Shenzhen in Stock New Pull CPU Original Official Version T5470 1.6 2 m 800 SLAEBIntel Notebook CPUNegotiableMOQ: 1000 Pieces
-
Formal AMD SI40 Needle S1 Laptop CPU SMSI40SAM12GG General QL60 62 64 638NegotiableMOQ: 1
-
New AMD P320 AMP320SGR22GM Notebook AMD CPU General P340 P360 M320US$ 2.4 - 2.4MOQ: 1
-
AMD TL60 TMDTL60HAX5DM Notebook CPU General TL64 MK38 TL56 TK53 TK57NegotiableMOQ: 1
Products Status
Stock, Used
Application
Laptop
Processor Brand
Intel
Type
Dual-Core
Processor Type
Intel Core
L2 Cache
3MB
Socket Type
Other, BGA1023
Main Frequency
2.4GHz
Brand Name
Intel
Model Number
3110M
Place of Origin
Guangdong, China
2015 latest Intel Core i3-3110M bga 2.40GHz CPU processor
Intel Core i3-3110M specifications
| General information | |
| Type | CPU / Microprocessor |
| Market segment | Mobile |
| Family |
|
| Model number ? |
|
| CPU part number |
|
| Frequency ? | 2400 MHz |
| Bus speed ? | 5 GT/s DMI |
| Clock multiplier ? | 24 |
| Package | 1023-ball micro-BGA (BGA1023) |
| Socket | BGA1023 |
| Size | 1.22" x 0.94" / 3.1cm x 2.4cm |
| Introduction date | June 24, 2012 |
| End-of-Life date | Last order date for tray processors is November 21, 2014 Last shipment date for tray processors is May 22, 2015 |
| S-spec numbers | ||||||||||
| ||||||||||
| Architecture / Microarchitecture | ||||||||||
| Microarchitecture | Ivy Bridge | |||||||||
| Processor core ? | Ivy Bridge | |||||||||
| Core stepping ? | L1 (SR0N2) | |||||||||
| CPUID | 306A9 (SR0N2) | |||||||||
| Manufacturing process | 0.022 micron 970 million transistors | |||||||||
| Die size | 116.23mm2 | |||||||||
| Data width | 64 bit | |||||||||
| The number of cores | 2 | |||||||||
| The number of threads | 4 | |||||||||
| Floating Point Unit | Integrated | |||||||||
| Level 1 cache size ? | 2 x 32 KB 8-way set associative instruction caches 2 x 32 KB 8-way set associative data caches | |||||||||
| Level 2 cache size ? | 2 x 256 KB 8-way set associative caches | |||||||||
| Level 3 cache size | 3 MB 12-way set associative shared cache | |||||||||
| Physical memory | 32 GB | |||||||||
| Multiprocessing | Not supported | |||||||||
| Features |
|
|||||||||
| Low power features | Enhanced SpeedStep technology ? | |||||||||
| Integrated peripherals / components | ||||||||||
| Integrated graphics | GPU Type: HD 4000 Base frequency (MHz): 650 Maximum frequency (MHz): 1000 The number of supported displays: 3 | |||||||||
| Memory controller | The number of controllers: 1 Memory channels: 2 Supported memory: DDR3-1333, DDR3-1600, DDR3L-1333, DDR3L-1600, DDR3L-RS 1333, DDR3L-RS 1600 Maximum memory bandwidth (GB/s): 25.6 | |||||||||
| Other peripherals |
|
|||||||||
| Electrical / Thermal parameters | ||||||||||
| Maximum operating temperature ? | 105°C | |||||||||
| Thermal Design Power ? | 35 Watt | |||||||||
| Notes on Intel Core i3-3110M | ||||||||||
| ||||||||||
CPU ID information for the Core i3-3110M
Our CPUID database contains 5 records for this microprocessor. See all submitted records.
Use our CPU identification tool to check features of your processor.
NOTE: The CPU ID information below was taken from one chip and may include features that are not present in all different steppings of the Intel Core i3 Mobile i3-3110M microprocessor.
| Manufacturer: | Intel | Measured frequency: | 2394 MHz |
| CPU Family: | Core i3 Mobile | Comment: | |
| Processor Number: | i3-3110M | ||
| Part number (supplied): | AW8063801032700 | Submitted by: | CPU-World |
| Part number (guessed): | AV8063801032800 / AW8063801032700 |
Submitted on: | |
| S-Spec Number: | SR0N1 | CWID version: | 0.5 |
| General information | |
|---|---|
| Vendor: | GenuineIntel |
| Processor name (BIOS): | Intel(R) Core(TM) i3-3110M CPU @ 2.40GHz |
| Cores: | 2 |
| Logical processors: | 4 |
| Processor type: | Original OEM Processor |
| CPUID signature: | 306A9 |
| Family: | 6 (06h) |
| Model: | 58 (03Ah) |
| Stepping: | 9 (09h) |
| TLB/Cache details: | 64-byte Prefetching Data TLB0: 2-MB or 4-MB pages, 4-way set associative, 32 entries Data TLB: 4-KB Pages, 4-way set associative, 64 entries Instruction TLB: 4-KB pages, 4-way set associative, 64 entries L2 TLB: 1-MB, 4-way set associative, 64-byte line size Shared 2nd-level TLB: 4 KB pages, 4-way set associative, 512 entries |
| Cache: | L1 data | L1 instruction | L2 | L3 |
|---|---|---|---|---|
| Size: | 2 x 32 KB | 2 x 32 KB | 2 x 256 KB | 3 MB |
| Associativity: | 8-way set associative | 8-way set associative | 8-way set associative | 12-way set associative |
| Line size: | 64 bytes | 64 bytes | 64 bytes | 64 bytes |
| Comments: | Direct-mapped | Direct-mapped | Non-inclusive Direct-mapped | Inclusive Shared between all cores |
| Instruction set extensions | Additional instructions | ||
|---|---|---|---|
| MMX | CLFLUSH | ||
| SSE | CMOV | ||
| SSE2 | CMPXCHG16B | ||
| SSE3 | CMPXCHG8B | ||
| SSSE3 | Enhanced REP MOVSB/STOSB | ||
| SSE4.1 | FXSAVE/FXRSTORE | ||
| SSE4.2 | MONITOR/MWAIT | ||
| AVX | PCLMULDQ | ||
| F16C | POPCNT | ||
| RD/WR FSGSBASE instructions | |||
| RDTSCP | |||
| SYSENTER/SYSEXIT | |||
| XSAVE/XRESTORE states | |||
| Major features | Other features | ||
| On-chip Floating Point Unit | 36-bit page-size extensions | ||
| 64-bit / Intel 64 | 64-bit debug store | ||
| NX bit/XD-bit | Advanced programmable interrupt controller | ||
| Hyper-Threading Technology | CPL qualified debug store | ||
| Intel Virtualization | Clock modulation duty cycle extension | ||
| Enhanced SpeedStep | Debug store | ||
| Debugging extensions | |||
| Digital Thermal Sensor capability | |||
| Extended xAPIC support | |||
| LAHF/SAHF support in 64-bit mode | |||
| Machine check architecture | |||
| Machine check exception | |||
| Memory-type range registers | |||
| Model-specific registers | |||
| Package thermal management | |||
| Page attribute table | |||
| Page global extension | |||
| Page-size extensions (4MB pages) | |||
| Pending break enable | |||
| Perfmon and Debug capability | |||
| Physical address extensions | |||
| Power Limit Notification capability | |||
| Process context identifiers | |||
| Self-snoop | |||
| Supervisor Mode Execution Protection | |||
| TSC rate is ensured to be invariant across all states | |||
| Thermal monitor | |||
| Thermal monitor 2 | |||
| Thermal monitor and software controlled clock facilities | |||
| Time stamp counter | |||
| Timestamp counter deadline | |||
| Virtual 8086-mode enhancements | |||
| xTPR Update Control | |||
CPUs, related to Intel Core i3-3110M (BGA)
The list of related CPUs does not include all models. For the complete list, please see the related "Ivy Bridge" processors for socket BGA1023 page.
| Model | Cores / Threads | Frequency | Turbo frequency | L3 cache | TDP | Features | |
|---|---|---|---|---|---|---|---|
| Intel Core i3 Mobile family, BGA1023 | |||||||
| Core i3-2357M | 2 / 4 | 1.3 GHz | 3 MB | 17W | AVX, HT | > | |
| Core i3-2365M | 2 / 4 | 1.4 GHz | 3 MB | 17W | AVX, HT | > | |
| Core i3-2367M | 2 / 4 | 1.4 GHz | 3 MB | 17W | AVX, HT | > | |
| Core i3-3229Y | 2 / 4 | 1.4 GHz | 3 MB | 13W | AVX, HT | > | |
| Core i3-2375M | 2 / 4 | 1.5 GHz | 3 MB | 17W | AVX, HT | > | |
| Core i3-2377M | 2 / 4 | 1.5 GHz | 3 MB | 17W | AVX, HT | > | |
| Core i3-3217U | 2 / 4 | 1.8 GHz | 3 MB | 17W | AVX, HT | > | |
| Core i3-3227U | 2 / 4 | 1.9 GHz | 3 MB | 17W | AVX, HT | > | |
| Core i3-2310M (BGA) | 2 / 4 | 2.1 GHz | 3 MB | 35W | AVX, HT | > | |
| Core i3-2330M (BGA) | 2 / 4 | 2.2 GHz | 3 MB | 35W | AVX, HT | > | |
| Core i3-2350M (BGA) | 2 / 4 | 2.3 GHz | 3 MB | 35W | AVX, HT | > | |
| Core i3-2370M (BGA) | 2 / 4 | 2.4 GHz | 3 MB | 35W | AVX, HT | > | |
| Core i3-3110M (BGA) | 2 / 4 | 2.4 GHz | 3 MB | 35W | AVX, HT | ||
| Core i3-3120M (BGA) | 2 / 4 | 2.5 GHz | 3 MB | 35W | AVX, HT | > | |
| Core i3-3130M (BGA) | 2 / 4 | 2.6 GHz | 3 MB | 35W | AVX, HT | > | |
| Intel Core i3 Mobile family, Ivy Bridge micro-architecture, Other sockets | |||||||
| Core i3-3110M (PGA) | 2 / 4 | 2.4 GHz | 3 MB | 35W | AVX, HT | > | |
| Core i3-3120M (PGA) | 2 / 4 | 2.5 GHz | 3 MB | 35W | AVX, HT | > | |
| Core i3-3130M (PGA) | 2 / 4 | 2.6 GHz | 3 MB | 35W | AVX, HT | > | |
| Other families, Ivy Bridge micro-architecture, BGA1023 | |||||||
| Celeron 1017U | 2 / 2 | 1.6 GHz | 2 MB | 17W | AVX, HT | > | |
| Celeron 1037U | 2 / 2 | 1.8 GHz | 2 MB | 17W | AVX, HT | > | |
| Pentium 2127U | 2 / 2 | 1.9 GHz | 2 MB | 17W | AVX, HT | > | |
| Core i5-3360M (BGA) | 2 / 4 | 2.8 GHz | 3.5 GHz | 3 MB | 35W | AES, AVX, HT, TXT, TBT | > |
| Core i5-3380M (BGA) | 2 / 4 | 2.9 GHz | 3.6 GHz | 3 MB | 35W | AES, AVX, HT, TXT, TBT | > |
| Core i7-3540M (BGA) | 2 / 4 | 3 GHz | 3.7 GHz | 4 MB | 35W | AES, AVX, HT, TXT, TBT | > |
• Within each category, the CPUs are sorted from slower (at the top) to faster (at the bottom)
• Background color of specs and features indicate whether they are better or worse than similar spec/feature of the Core i3-3110M (BGA)
• Click on the > icon to compare any CPU in the table with the Intel Core i3-3110M (BGA) (Javascript required).
• Features abbreviations:
AES - AES instructions AVX - AVX instructions HT - Hyper-Threading TXT - Trusted Execution TBT - Dynamic Acceleration / Turbo Boost
