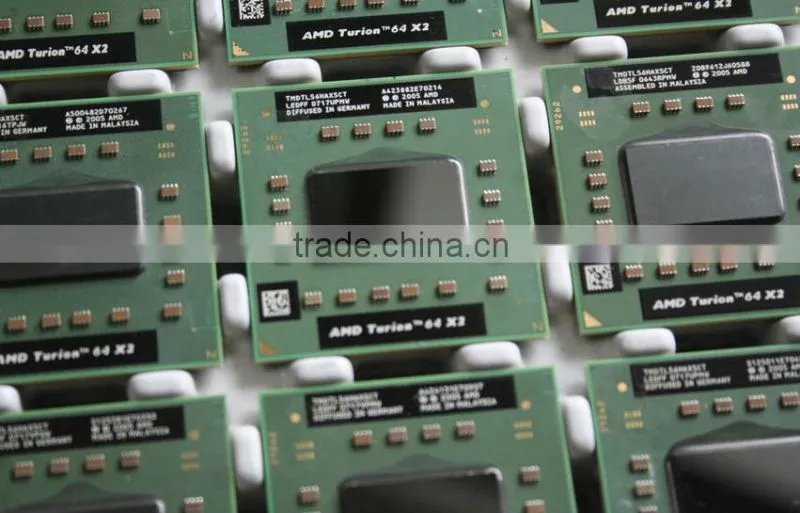

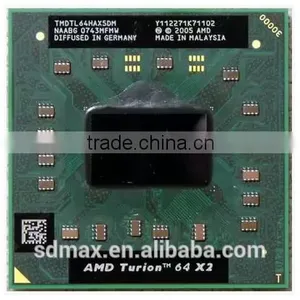

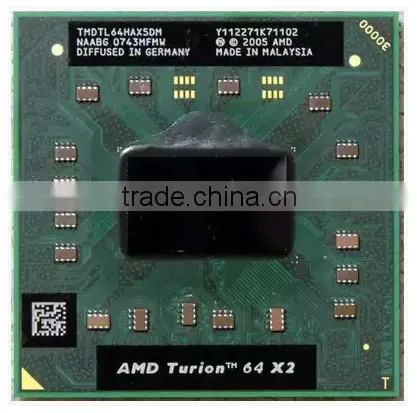

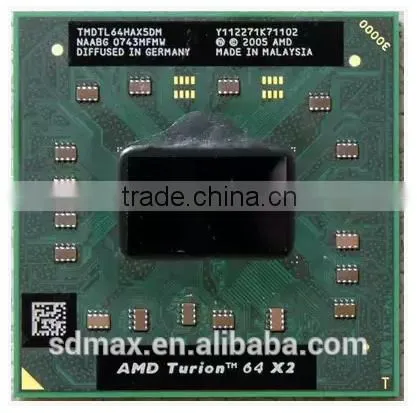

AMD TL60 TMDTL60HAX5DM Notebook CPU General TL64 MK38 TL56 TK53 TK57
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Used
Application:
Laptop
Processor Brand:
AMD
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
I3-4000 m SR1HC Notebook CPU 2.3 G HM86US$ 85 - 100MOQ: 1 Piece -
AMD P820 HMP820SGR32GM Notebook CPU Original Version 3 Core Upgrade PreferredNegotiableMOQ: 1
-
Notebook Dedicated CPU EM3000DDX22HX E2-3000 - m Official VersionNegotiableMOQ: 1
-
Original PGA Formal Version of the Core 2 Duo T5670 1.8 G 2 m 800 Laptop CPU SLAJ5NegotiableMOQ: 10 Pieces
-
Original Intel Celeron CPU CM370 SL8MM/SL86J CPU Original PGA QuantitiesNegotiableMOQ: 1 Piece
Products Status
Used
Application
Laptop
Processor Brand
AMD
Type
Dual-Core
Processor Type
Other
L2 Cache
Other
Socket Type
Other, Socket 604
Main Frequency
2.0GHz
Brand Name
AMD
Model Number
TL-60
Place of Origin
Guangdong, China
AMD Turion 64 X2 TL-60 specifications
| General information | |
| Type | CPU / Microprocessor |
| Market segment | Mobile |
| Family | AMD Turion 64 X2 Mobile technology |
| Model number ? | TL-60 |
| CPU part number |
|
| Stepping codes | CAAEG NAABG NAAEG NAAZG |
| Frequency ? | 2000 MHz |
| Bus speed ? | One 800 MHz 16-bit HyperTransport link |
| Clock multiplier ? | 10 |
| Package | 638-pin lidless micro-PGA |
| AMD Package number | 30000 |
| Socket | Socket S1 (S1g1) |
| Size | 1.38" x 1.38" / 3.5cm x 3.5cm |
| Weight | 0.2oz / 5.7g |
| Architecture / Microarchitecture | |
| Microarchitecture | K8 |
| Processor core ? | Tyler |
| Core stepping ? | BH-G2 |
| CPUID | 60F82 |
| Manufacturing process | 0.065 micron |
| Data width | 64 bit |
| The number of cores | 2 |
| The number of threads | 2 |
| Floating Point Unit | Integrated |
| Level 1 cache size ? | 2 x 64 KB 2-way set associative instruction caches 2 x 64 KB 2-way set associative data caches |
| Level 2 cache size ? | 2 x 512 KB 16-way set associative exclusive caches |
| Cache latency | 3 (L1 cache) |
| Physical memory | 1 TB |
| Virtual memory | 256 TB |
| Multiprocessing | Uniprocessor |
| Features |
|
| Low power features |
|
| Integrated peripherals / components | |
| Integrated graphics | None |
| Memory controller | The number of controllers: 1 Memory channels: 2 Channel width (bits): 64 Supported memory: DDR2-400, DDR2-533, DDR2-667, DDR2-800 Maximum memory bandwidth (GB/s): 12.8 |
| Other peripherals | HyperTransport interface (1 link) |
| Electrical / Thermal parameters | |
| Maximum operating temperature ? | 95°C |
| Thermal Design Power ? | 35 Watt |
Historical price chart
The chart below shows official prices of AMD Turion 64 X2 TL-58, TL-60 and TL-62 processors:
FAQ
Q: Is it possible to upgrade my AMD TL-60 processor?
A: Probably yes. CPU compatibility is determined by your motherboard. Please check website for CPU support list for your board.
Turion 64 X2 TL-60 Overclocking
Sorry, overclocking information is not available at this time.
CPUs, related to AMD Turion 64 X2 TL-60 (rev. G2)
| Model | Cores / Threads |
Frequency | L2 cache |
TDP | Features | |
|---|---|---|---|---|---|---|
| AMD Turion 64 X2 Mobile technology family, Socket S1 (S1g1) | ||||||
| Turion 64 X2 TL-56 (rev. G2) | 2 / 2 | 1.8 GHz | 1 MB | 31W | VT | > |
| Turion 64 X2 TL-58 (rev. G1) | 2 / 2 | 1.9 GHz | 1 MB | 31W | VT | > |
| Turion 64 X2 TL-58 (rev. F2) | 2 / 2 | 1.9 GHz | 1 MB | 35W | VT | > |
| Turion 64 X2 TL-58 (rev. G2) | 2 / 2 | 1.9 GHz | 1 MB | 35W | VT | > |
| Turion 64 X2 TL-60 (rev. F2) | 2 / 2 | 2 GHz | 1 MB | 35W | VT | > |
| Turion 64 X2 TL-60 (rev. G2) | 2 / 2 | 2 GHz | 1 MB | 35W | VT | |
| Turion 64 X2 TL-60 (rev. G1) | 2 / 2 | 2 GHz | 1 MB | 31W | VT | > |
| Turion 64 X2 TL-62 (rev. F2) | 2 / 2 | 2.1 GHz | 1 MB | 35W | VT | > |
| Turion 64 X2 TL-62 (rev. G2) | 2 / 2 | 2.1 GHz | 1 MB | 35W | VT | > |
| Turion 64 X2 TL-64 (rev. G2) | 2 / 2 | 2.2 GHz | 1 MB | 35W | VT | > |
| Turion 64 X2 TL-64 (rev. G1) | 2 / 2 | 2.2 GHz | 1 MB | 35W | VT | > |
| Turion 64 X2 TL-64 (rev. F2) | 2 / 2 | 2.2 GHz | 1 MB | 35W | VT | > |
| Turion 64 X2 TL-66 (rev. G2) | 2 / 2 | 2.3 GHz | 1 MB | 35W | VT | > |
| Turion 64 X2 TL-66 (rev. G1) | 2 / 2 | 2.3 GHz | 1 MB | 35W | VT | > |
| Turion 64 X2 TL-68 | 2 / 2 | 2.4 GHz | 1 MB | 35W | VT | > |
| AMD Turion 64 X2 Mobile technology family, K8 micro-architecture, Other sockets | ||||||
| Turion 64 X2 RM-75 | 2 / 2 | 2.2 GHz | 1 MB | 35W | VT | > |
| Turion 64 X2 RM-76 | 2 / 2 | 2.3 GHz | 1 MB | 35W | VT | > |
| Turion 64 X2 RM-77 | 2 / 2 | 2.3 GHz | 1 MB | 35W | VT | > |
| Other families, K8 micro-architecture, Socket S1 (S1g1) | ||||||
| Athlon 64 TF-38 | 1 / 1 | 2.2 GHz | 256 KB | 31W | VT | > |
| Mobile Sempron 3800+ (rev. G2) | 1 / 1 | 2.2 GHz | 256 KB | 31W | VT | > |
| Mobile Sempron 4000+ | 1 / 1 | 2.2 GHz | 512 KB | 31W | VT | > |
| Turion 64 MK-38 | 1 / 1 | 2.2 GHz | 512 KB | 31W | VT | > |
| Athlon 64 X2 TK-55 (rev. G1) | 2 / 2 | 1.8 GHz | 512 KB | 31W | VT | > |
| Athlon 64 X2 TK-57 | 2 / 2 | 1.9 GHz | 512 KB | 31W | VT | > |
