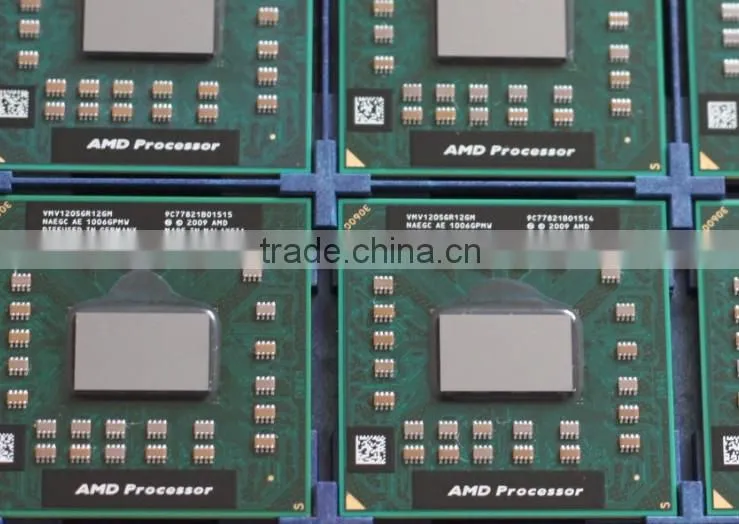

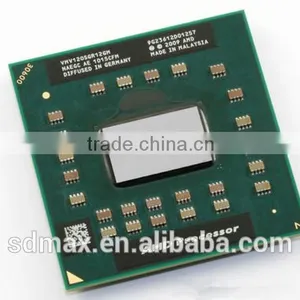

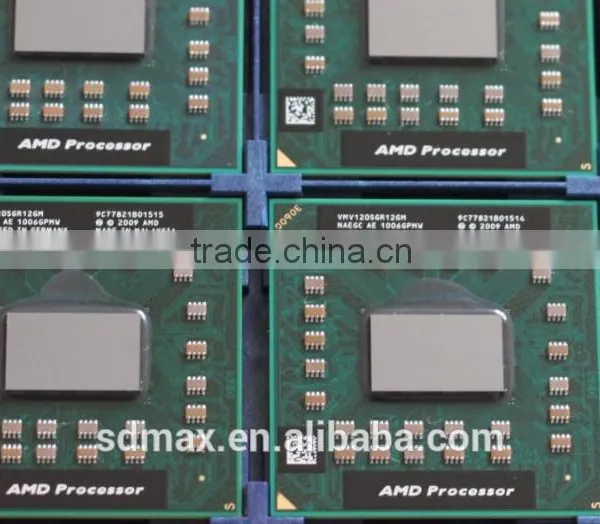

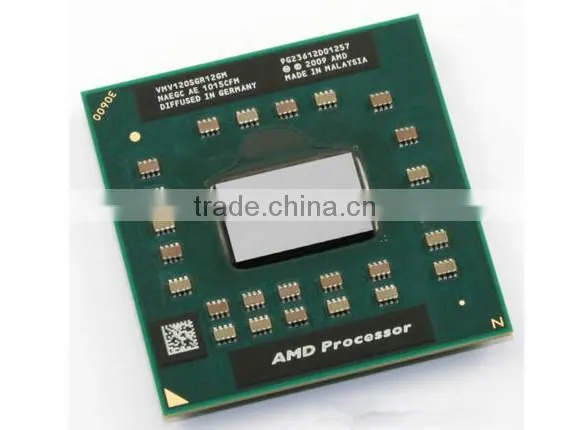

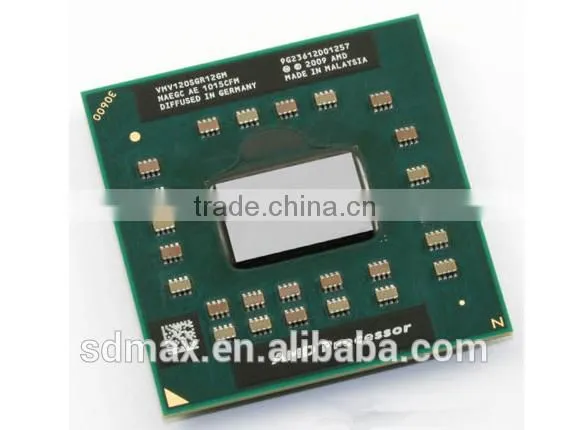

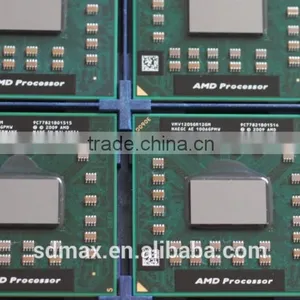

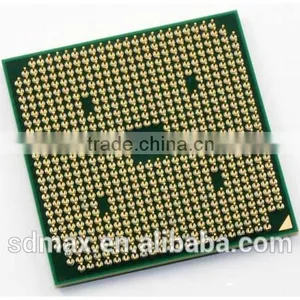

Help CenterAMD V120 VMV120SGR12GM General CPU V140 Notebook CPU!
US$ 1 - 159
MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Used
Application:
Laptop
Processor Brand:
AMD
Payment & Shipping
Payment Methods:
Port of Shipment:
hk
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Used Dual Core 3 MB Level 3 Cache Intel Core I5-3380M Mobile ProcessorUS$ 125 - 152MOQ: 10 Pieces -
AMD Athlon 64 X2 QL-64 AMQL64DAM22GG Dual Core S1g2 Mobile CPUNegotiableMOQ: 1 Piece
-
Intel I3-4005u 1.7 G SR1EK G81364 BGA New and Original The Fourth Generation Notebook CPUNegotiableMOQ: 10 Pieces
-
I3-4010 SR16Q Quality Goods From Stock Four Generations Notebook CPUNegotiableMOQ: 10 Pieces
-
Intel Core I3-4005U SR1EK Mobile Processor CL8064701478404 BGA 1.7ghZ HASWELL Dual Core CPUUS$ 104 - 110MOQ: 1 Piece
Products Status
Used
Application
Laptop
Processor Brand
AMD
Type
Single-Core
Processor Type
Other
L2 Cache
Other, ≤ 1MB
Socket Type
Socket AM3
Main Frequency
2.2GHz
Brand Name
AMD
Model Number
Athlon II X2 245
Place of Origin
Guangdong, China
AMD V Series V120 specifications
| General information | |
| Type | CPU / Microprocessor |
| Market segment | Mobile |
| Family | AMD V Series for Notebook PCs |
| Model number ? | V120 |
| CPU part number |
|
| Stepping code | NAEGC AE |
| Frequency ? | 2200 MHz |
| Bus speed ? | One 1600 MHz 16-bit HyperTransport link (3.2 GT/s) |
| Clock multiplier ? | 11 |

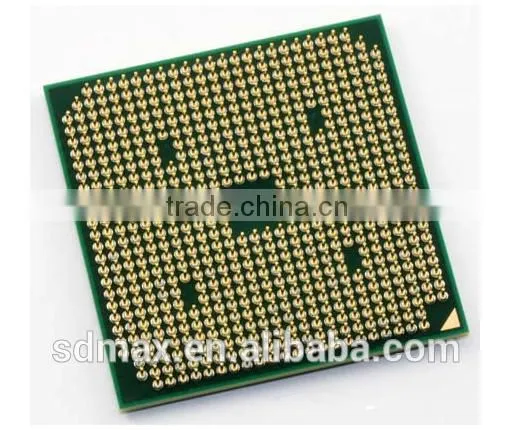

| Package | 638-pin lidless organic micro Pin Grid Array (UOL638) |
| AMD Package number | 30600 |
| Socket | Socket S1 (S1g4) |
| Size | 1.38" x 1.38" / 3.5cm x 3.5cm |
| Weight | 0.2oz / 6.5g (by specifications) |
| Introduction date | May 12, 2010 |
| End-of-Life date | Last order date is end of 1st quarter 2011 [1] |
| Architecture / Microarchitecture | |
| Microarchitecture | K10 |
| Platform | Danube |
| Processor core ? | Champlain |
| Core stepping ? | DA-C3 |
| CPUID | 100F63 |
| Manufacturing process | 0.045 micron silicon-on-insulator (SOI) technology |
| Data width | 64 bit |
| The number of cores | 1 |
| The number of threads | 1 |
| Floating Point Unit | Integrated, 64-bit wide |
| Level 1 cache size ? | 64 KB 2-way set associative instruction cache 64 KB 2-way set associative data cache |
| Level 2 cache size ? | 512 KB 16-way set associative cache |
| Level 3 cache size | None |
| Cache latency [2] | 3 (L1 cache) 15 (L2 cache) |
| Multiprocessing | Uniprocessor |
| Features |
|
| Low power features | PowerNow! |
| Integrated peripherals / components | |
| Integrated graphics | None |
| Memory controller | The number of controllers: 1 Memory channels: 2 Supported memory: DDR3-1066, DDR3L-1066 Maximum memory bandwidth (GB/s): 17.1 |
| Other peripherals | HyperTransport technology 3.0 |
| Electrical / Thermal parameters | |
| Thermal Design Power ? | 25 Watt |
FAQ
Q: I have an AMD V Series V120 processor. Can I upgrade it?
A: Probably yes. CPU compatibility is determined by your motherboard. Please see website for CPU support list for your board.
V Series V120 Overclocking
Sorry, overclocking information for the microprocessor is not available at this time.
Integer performance
| Part number | Result | |
|---|---|---|
Intel Celeron M 575 ?
|
111.2% | |
Intel Celeron M 550 (Socket P) ?
|
111.2% | |
AMD V Series V160 ?
|
109.2% | |
AMD V Series V140 ?
|
104.6% | |
Intel Celeron M 540 ?
|
103.8% | |
AMD V Series V120 ?
|
100% | |
Intel Celeron M 530 (Socket M) ?
|
96.4% | |
Intel Celeron M 520 ?
|
89% | |
AMD Mobile Sempron 3600+ (rev. G2) ?
|
86.2% | |
Intel Pentium M 755 (Socket 479) ?
|
80% | |
Intel Core Solo T1350 ?
|
77.8% |
CPUs, related to AMD V Series V120
| Model | Cores / Threads |
Frequency | L2 cache |
TDP | Features | |
|---|---|---|---|---|---|---|
| AMD V Series for Notebook PCs family, Socket S1 (S1g4) | ||||||
| V Series V120 | 1 / 1 | 2.2 GHz | 512 KB | 25W | ||
| V Series V140 | 1 / 1 | 2.3 GHz | 512 KB | 25W | > | |
| V Series V160 | 1 / 1 | 2.4 GHz | 512 KB | 25W | > | |
| AMD V Series for Notebook PCs family, K10 micro-architecture, Other sockets | ||||||
| V Series V105 | 1 / 1 | 1.2 GHz | 512 KB | 9W | > | |
| Other families, K10 micro-architecture, Socket S1 (S1g4) | ||||||
| Sempron Mobile N120 | 1 / 1 | 2.2 GHz | 512 KB | 25W | > | |
| Athlon II N370 | 2 / 2 | 2.5 GHz | 1 MB | 35W | > | |
| Turion II N550 | 2 / 2 | 2.6 GHz | 2 MB | 35W | > | |
| Turion II N570 | 2 / 2 | 2.7 GHz | 2 MB | 35W | > | |
| Phenom II X620 | 2 / 2 | 3.1 GHz | 2 MB | 45W | Unlock | > |
| Phenom II N850 | 3 / 3 | 2.2 GHz | 1.5 MB | 35W | > | |
| Phenom II X640 | 2 / 2 | 3.2 GHz | 2 MB | 45W | Unlock | > |
| Phenom II N870 | 3 / 3 | 2.3 GHz | 1.5 MB | 35W | > | |
| Phenom II X920 | 4 / 4 | 2.3 GHz | 2 MB | 45W | Unlock | > |
| Phenom II X940 | 4 / 4 | 2.4 GHz | 2 MB | 45W | Unlock | > |

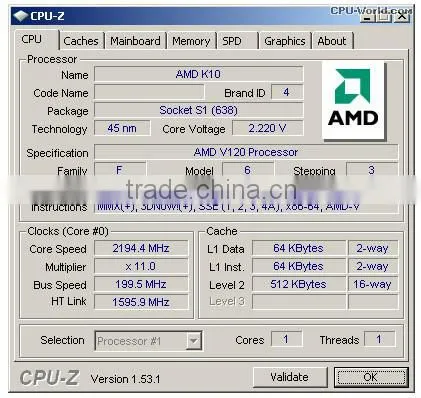

| CPUZ screenshot of the AMD V120 processor. | |
