I5-3340M (3M,3.40 GHz) SR0XA AW8063801110300 L1 Ivy Bridge Computer Processor

I5-3340M (3M,3.40 GHz) SR0XA AW8063801110300 L1 Ivy Bridge Computer Processor thumbnail-1
I5-3340M (3M,3.40 GHz) SR0XA AW8063801110300 L1 Ivy Bridge Computer Processor thumbnail-2

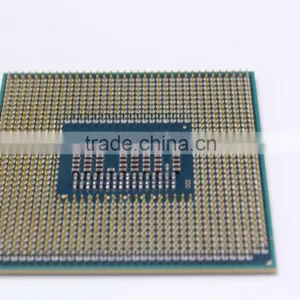

I5-3340M (3M,3.40 GHz) SR0XA AW8063801110300 L1 Ivy Bridge Computer Processor thumbnail-3
I5-3340M (3M,3.40 GHz) SR0XA AW8063801110300 L1 Ivy Bridge Computer Processor photo-1

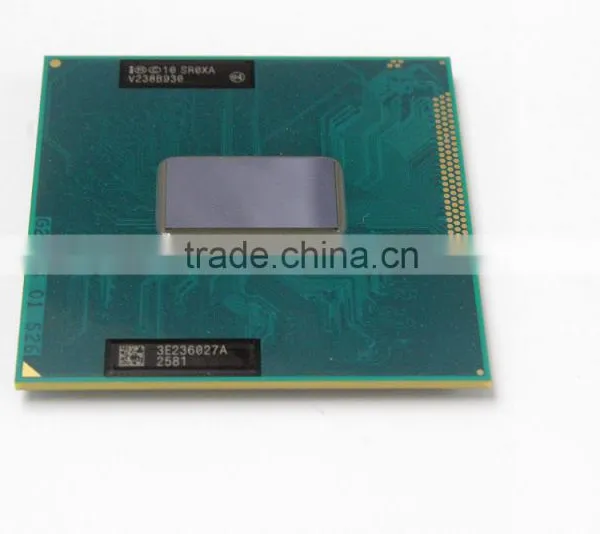

I5-3340M (3M,3.40 GHz) SR0XA AW8063801110300 L1 Ivy Bridge Computer Processor photo-2

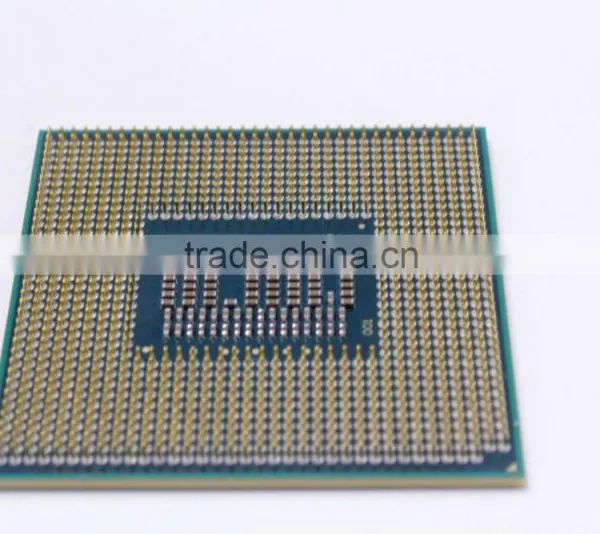

I5-3340M (3M,3.40 GHz) SR0XA AW8063801110300 L1 Ivy Bridge Computer Processor photo-3
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock, Used
Application:
Laptop
Processor Brand:
Intel
Contact Supplier Request Quote Chat Now
Shenzhen Shines Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock, Used
Application Laptop
Processor Brand Intel
Type Dual-Core
Processor Type Intel Core
L2 Cache 3MB
Socket Type Other, BGA1023
Main Frequency 2.7GHz
Brand Name intel core
Model Number i5-3340M
Place of Origin Guangdong, China

i5-3340M (3M,3.40 GHz) SR0XA AW8063801110300 L1 Ivy Bridge Computer Processor

Intel Core i5-3340M specifications

General information
Type CPU / Microprocessor
Market segment Mobile
Family

Intel Core i5 Mobile
Model number ?

i5-3340M
CPU part number

  • AV8063801110700 is an OEM/tray microprocessor
Frequency ? 2700 MHz
Turbo frequency 3400 MHz (1 core) 3200 MHz (2 cores)
Bus speed ? 5 GT/s DMI
Clock multiplier ? 27
Package 1023-ball micro-BGA (BGA1023)
Socket BGA1023
Size 1.22" x 0.94" / 3.1cm x 2.4cm
Introduction date January 20, 2013
End-of-Life date Last order date is July 25, 2014 Last shipment date is January 9, 2015



S-spec numbers
  Production processors
Part number SR0XB
AV8063801110700 +
Architecture / Microarchitecture
Microarchitecture Ivy Bridge
Processor core ? Ivy Bridge
Core stepping ? L1 (SR0XB)
CPUID 306A9 (SR0XB)
Manufacturing process 0.022 micron
Data width 64 bit
The number of cores 2
The number of threads 4
Floating Point Unit Integrated
Level 1 cache size ? 2 x 32 KB 8-way set associative instruction caches 2 x 32 KB 8-way set associative data caches
Level 2 cache size ? 2 x 256 KB 8-way set associative caches
Level 3 cache size 3 MB 12-way set associative shared cache
Physical memory 32 GB
Multiprocessing Not supported
Features
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ?
  • AES / Advanced Encryption Standard instructions
  • AVX / Advanced Vector Extensions
  • F16C / 16-bit Floating-Point conversion instructions
  • EM64T / Extended Memory 64 technology / Intel 64 ?
  • NX / XD / Execute disable bit ?
  • HT / Hyper-Threading technology ?
  • TBT 2.0 / Turbo Boost technology 2.0 ?
  • VT-x / Virtualization technology ?
  • VT-d / Virtualization for directed I/O
  • TXT / Trusted Execution technology
Low power features Enhanced SpeedStep technology ?
Integrated peripherals / components
Integrated graphics GPU Type: HD 4000 Base frequency (MHz): 650 Maximum frequency (MHz): 1250 The number of supported displays: 3
Memory controller The number of controllers: 1 Memory channels: 2 Supported memory: DDR3-1333, DDR3-1600, DDR3L-1333, DDR3L-1600, DDR3L-RS 1333, DDR3L-RS 1600 Maximum memory bandwidth (GB/s): 25.6
Other peripherals
  • Direct Media Interface 2.0
  • PCI Express 3.0 interface
Electrical / Thermal parameters
Maximum operating temperature ? 105°C
Thermal Design Power ? 35 Watt
Notes on Intel Core i5-3340M
  • The processor has the following security, data protection and/or software features: Intel Secure Key, vPro technology, Identity Protection technology and Anti-Theft technology.
  • The CPU is compatible with DirectX 11.0, OpenGL 4.0 and OpenCL 1.2 APIs.
  • The graphics unit has the following software features enabled: Intel Quick Sync Video, Wireless Display, Insider, InTru 3D technology and Clear Video HD technology.

CPU ID information for the Core i5-3340M

Our CPUID database contains 2 records for this microprocessor. See all submitted records.

Use our CPU identification tool to check features of your processor.

NOTE: The CPU ID information below was taken from one chip and may include features that are not present in all different steppings of the Intel Core i5 Mobile i5-3340M microprocessor.



Manufacturer: Intel Measured frequency: 2693 MHz
CPU Family: Core i5 Mobile Comment:
Processor Number: i5-3340M
Part number (supplied): AW8063801110300 Submitted by: CPU-World
Part number (guessed):
AV8063801110700 / AW8063801110300
 Submitted on:
S-Spec Number: SR0XA CWID version: 0.5
General information
Vendor: GenuineIntel
Processor name (BIOS): Intel(R) Core(TM) i5-3340M CPU @ 2.70GHz
Cores: 2
Logical processors: 4
Processor type: Original OEM Processor
CPUID signature: 306A9
Family: 6 (06h)
Model: 58 (03Ah)
Stepping: 9 (09h)
TLB/Cache details: 64-byte Prefetching Data TLB0: 2-MB or 4-MB pages, 4-way set associative, 32 entries Data TLB: 4-KB Pages, 4-way set associative, 64 entries Instruction TLB: 4-KB pages, 4-way set associative, 64 entries L2 TLB: 1-MB, 4-way set associative, 64-byte line size Shared 2nd-level TLB: 4 KB pages, 4-way set associative, 512 entries
Cache: L1 data L1 instruction L2 L3
Size: 2 x 32 KB 2 x 32 KB 2 x 256 KB 3 MB
Associativity: 8-way set associative 8-way set associative 8-way set associative 12-way set associative
Line size: 64 bytes 64 bytes 64 bytes 64 bytes
Comments: Direct-mapped Direct-mapped Non-inclusive Direct-mapped Inclusive Shared between all cores

Instruction set extensions Additional instructions
MMX CLFLUSH
SSE CMOV
SSE2 CMPXCHG16B
SSE3 CMPXCHG8B
SSSE3 Enhanced REP MOVSB/STOSB
SSE4.1 FXSAVE/FXRSTORE
SSE4.2 MONITOR/MWAIT
AES PCLMULDQ
AVX POPCNT
F16C RD/WR FSGSBASE instructions
  RDRAND
  RDTSCP
  SYSENTER/SYSEXIT
  XSAVE/XRESTORE states

Major features Other features
On-chip Floating Point Unit 36-bit page-size extensions
64-bit / Intel 64 64-bit debug store
NX bit/XD-bit Advanced programmable interrupt controller
Hyper-Threading Technology CPL qualified debug store
Intel Virtualization Clock modulation duty cycle extension
Intel Trusted Execution technology Debug store
Turbo Boost Debugging extensions
Enhanced SpeedStep Digital Thermal Sensor capability
  Extended xAPIC support
  LAHF/SAHF support in 64-bit mode
  Machine check architecture
  Machine check exception
  Memory-type range registers
  Model-specific registers
  Package thermal management
  Page attribute table
  Page global extension
  Page-size extensions (4MB pages)
  Pending break enable
  Perfmon and Debug capability
  Physical address extensions
  Power Limit Notification capability
  Process context identifiers
  Self-snoop
  Supervisor Mode Execution Protection
  TSC rate is ensured to be invariant across all states
  Thermal monitor
  Thermal monitor 2
  Thermal monitor and software controlled clock facilities
  Time stamp counter
  Timestamp counter deadline
  Virtual 8086-mode enhancements
  xTPR Update Control

CPUs, related to Intel Core i5-3340M (BGA)

The list of related CPUs does not include all models. For the complete list, please see the related "Ivy Bridge" processors for socket BGA1023 page.

Model Cores / Threads Frequency Turbo frequency L3 cache TDP Features
Intel Core i5 Mobile family, BGA1023
  Core i5-3427U 2 / 4 1.8 GHz 2.8 GHz 3 MB 17W AES, AVX, HT, TXT, TBT >
  Core i5-3437U 2 / 4 1.9 GHz 2.9 GHz 3 MB 17W AES, AVX, HT, TXT, TBT >
  Core i5-2410M (BGA) 2 / 4 2.3 GHz 2.9 GHz 3 MB 35W AES, AVX, HT, TXT, TBT >
  Core i5-2415M 2 / 4 2.3 GHz 2.9 GHz 3 MB 35W AES, AVX, HT, TXT, TBT >
  Core i5-2435M 2 / 4 2.4 GHz 3 GHz 3 MB 35W AES, AVX, HT, TXT, TBT >
  Core i5-2450M (BGA) 2 / 4 2.5 GHz 3.1 GHz 3 MB 35W AES, AVX, HT, TXT, TBT >
  Core i5-3210M (BGA) 2 / 4 2.5 GHz 3.1 GHz 3 MB 35W AES, AVX, HT, TXT, TBT >
  Core i5-2520M (BGA) 2 / 4 2.5 GHz 3.2 GHz 3 MB 35W AES, AVX, HT, TXT, TBT >
  Core i5-3230M (BGA) 2 / 4 2.6 GHz 3.2 GHz 3 MB 35W AES, AVX, HT, TXT, TBT >
  Core i5-2540M (BGA) 2 / 4 2.6 GHz 3.3 GHz 3 MB 35W AES, AVX, HT, TXT, TBT >
  Core i5-3320M (BGA) 2 / 4 2.6 GHz 3.3 GHz 3 MB 35W AES, AVX, HT, TXT, TBT >
   Core i5-3340M (BGA) 2 / 4 2.7 GHz 3.4 GHz 3 MB 35W AES, AVX, HT, TXT, TBT
  Core i5-3360M (BGA) 2 / 4 2.8 GHz 3.5 GHz 3 MB 35W AES, AVX, HT, TXT, TBT >
  Core i5-3365M 2 / 4 2.8 GHz 3.5 GHz 3 MB 35W AES, AVX, HT, TXT, TBT >
  Core i5-3380M (BGA) 2 / 4 2.9 GHz 3.6 GHz 3 MB 35W AES, AVX, HT, TXT, TBT >
Intel Core i5 Mobile family, Ivy Bridge micro-architecture, Other sockets
   Core i5-3340M (PGA) 2 / 4 2.7 GHz 3.4 GHz 3 MB 35W AES, AVX, HT, TXT, TBT >
  Core i5-3360M (PGA) 2 / 4 2.8 GHz 3.5 GHz 3 MB 35W AES, AVX, HT, TXT, TBT >
  Core i5-3380M (PGA) 2 / 4 2.9 GHz 3.6 GHz 3 MB 35W AES, AVX, HT, TXT, TBT >
Other families, Ivy Bridge micro-architecture, BGA1023
  Celeron 1017U 2 / 2 1.6 GHz   2 MB 17W AES, AVX, HT, TXT, TBT >
  Celeron 1037U 2 / 2 1.8 GHz   2 MB 17W AES, AVX, HT, TXT, TBT >
  Pentium 2117U 2 / 2 1.8 GHz   2 MB 17W AES, AVX, HT, TXT, TBT >
  Pentium 2127U 2 / 2 1.9 GHz   2 MB 17W AES, AVX, HT, TXT, TBT >
  Core i3-3130M (BGA) 2 / 4 2.6 GHz   3 MB 35W AES, AVX, HT, TXT, TBT >
  Core i7-3540M (BGA) 2 / 4 3 GHz 3.7 GHz 4 MB 35W AES, AVX, HT, TXT, TBT >
• Within each category, the CPUs are sorted from slower (at the top) to faster (at the bottom)
• Background color of specs and features indicate whether they are better or worse than similar spec/feature of the Core i5-3340M (BGA)
• Click on the >  icon to compare any CPU in the table with the Intel Core i5-3340M (BGA) (Javascript required).
• Features abbreviations:
AES - AES instructions AVX - AVX instructions HT - Hyper-Threading TXT - Trusted Execution TBT - Dynamic Acceleration / Turbo Boost
