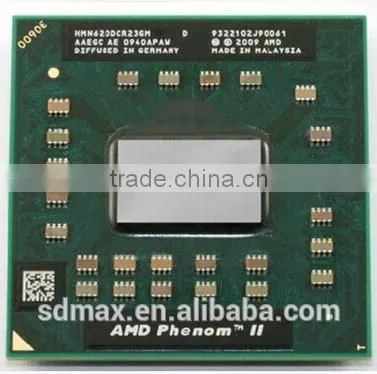

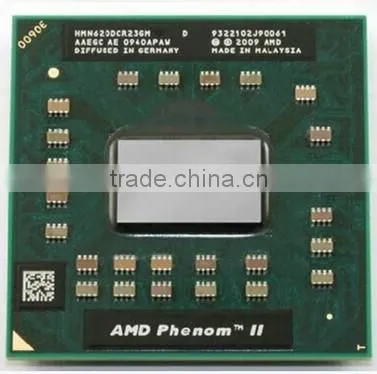

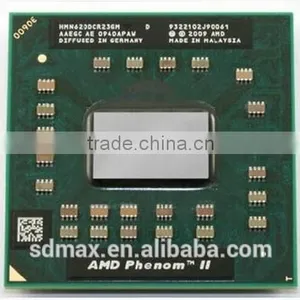

AMD N620 HMN620DCR23GM Notebook CPU General N530 N350 N830 N850 N970
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Used
Application:
Laptop
Processor Brand:
Intel
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
T7200 2.0/4 m / 667 Laptop CPU SL9SF Original PGA Official Version Support 945 PlatformNegotiableMOQ: 1 -
New Notebook Intel CPU I5-3320 m SR0MX Dual-core Intel CPUUS$ 105 - 108MOQ: 1 Piece
-
Intel Core 2 Duo Mobile INTEL T7400 SL9SK 2.16 G 4 m 667 New Original Official Version of the BGANegotiableMOQ: 1 Piece
-
Intel Core I7-5600U Mobile CPU FH8065801618304 Broadwell SR23V Bga Intel ProcessorUS$ 240 - 245MOQ: 1000 Pieces
-
INTEL I3-2310m SR04R PGA 2.1 G / 3 m The Second Generation Notebook CPUUS$ 40 - 42MOQ: 1 Piece
Products Status
Used
Application
Laptop
Processor Brand
Intel
Type
Dual-Core
L2 Cache
Other
Socket Type
Socket AM2
Main Frequency
2.8GHz
Brand Name
AMD
Place of Origin
China
AMD Phenom II N620 specifications
| General information | |
| Type | CPU / Microprocessor |
| Market segment | Mobile |
| Family | AMD Phenom II Dual-Core Mobile |
| Model number ? | N620 |
| CPU part number |
|
| Stepping codes | AAEGC AE NAEGC AE |
| Frequency ? | 2800 MHz |
| Bus speed ? | One 1800 MHz 16-bit HyperTransport link (3.6 GT/s) |
| Clock multiplier ? | 14 |
| Package | 638-pin lidless organic micro Pin Grid Array (UOL638) |
| AMD Package number | 30600 |
| Socket | Socket S1 (S1g4) |
| Size | 1.38" x 1.38" / 3.5cm x 3.5cm |
| Weight | 0.2oz / 5.6g (measured) 0.2oz / 6.5g (by specifications) |
| Introduction date | May 12, 2010 |
| End-of-Life date | Last order date is end of 3rd quarter 2011 Last shipment date is end of 1st quarter 2012 |
| Architecture / Microarchitecture | |
| Microarchitecture | K10 |
| Platform | Danube |
| Processor core ? | Champlain |
| Core stepping ? | DA-C3 |
| CPUID | 100F63 |
| Manufacturing process | 0.045 micron silicon-on-insulator (SOI) technology |
| Data width | 64 bit |
| The number of cores | 2 |
| The number of threads | 2 |
| Floating Point Unit | Integrated, 128-bit wide |
| Level 1 cache size ? | 2 x 64 KB 2-way set associative instruction caches 2 x 64 KB 2-way set associative data caches |
| Level 2 cache size ? | 2 x 1 MB 16-way set associative caches |
| Level 3 cache size | None |
| Cache latency [1] | 3 (L1 cache) 15 (L2 cache) |
| Multiprocessing | Uniprocessor |
| Features |
|
| Low power features | PowerNow! |
| Integrated peripherals / components | |
| Integrated graphics | None |
| Memory controller | The number of controllers: 1 Memory channels: 2 Supported memory: DDR3-1333, DDR3L-1066 Maximum memory bandwidth (GB/s): 21.3 |
| Other peripherals | HyperTransport technology 3.0 |
| Electrical / Thermal parameters | |
| Thermal Design Power ? | 35 Watt |
FAQ
Q: Is it possible to upgrade my AMD Phenom II N620 microprocessor?
A: Probably yes. CPU compatibility is determined by your motherboard. Please check resource for CPU support list for your board.
CPUs, related to AMD Phenom II N620
| Model | Cores / Threads |
Frequency | L2 cache |
TDP | Features | |
|---|---|---|---|---|---|---|
| AMD Phenom II Dual-Core Mobile family, Socket S1 (S1g4) | ||||||
| Phenom II P650 | 2 / 2 | 2.6 GHz | 2 MB | 25W | > | |
| Phenom II N620 | 2 / 2 | 2.8 GHz | 2 MB | 35W | ||
| Phenom II N640 | 2 / 2 | 2.9 GHz | 2 MB | 35W | > | |
| Phenom II N660 | 2 / 2 | 3 GHz | 2 MB | 35W | > | |
| Phenom II X620 | 2 / 2 | 3.1 GHz | 2 MB | 45W | Unlock | > |
| Phenom II X640 | 2 / 2 | 3.2 GHz | 2 MB | 45W | Unlock | > |
| Other families, K10 micro-architecture, Socket S1 (S1g4) | ||||||
| Sempron Mobile N120 | 1 / 1 | 2.2 GHz | 512 KB | 25W | > | |
| V Series V140 | 1 / 1 | 2.3 GHz | 512 KB | 25W | > | |
| V Series V160 | 1 / 1 | 2.4 GHz | 512 KB | 25W | > | |
| Athlon II N370 | 2 / 2 | 2.5 GHz | 1 MB | 35W | > | |
| Turion II N550 | 2 / 2 | 2.6 GHz | 2 MB | 35W | > | |
| Turion II N570 | 2 / 2 | 2.7 GHz | 2 MB | 35W | > | |
| Phenom II N850 | 3 / 3 | 2.2 GHz | 1.5 MB | 35W | > | |
| Phenom II N870 | 3 / 3 | 2.3 GHz | 1.5 MB | 35W | > | |
| Phenom II X920 | 4 / 4 | 2.3 GHz | 2 MB | 45W | Unlock | > |
| Phenom II X940 | 4 / 4 | 2.4 GHz | 2 MB | 45W | Unlock | > |
