Specifications
Tube centrifugal separator can do solid-liquid separation, liquid-liquid separation or liquid-liquid-solid separation.
With the transformation of structure of highspeed drive part, intake bearing block
and heat treatment process of drum, as well as the material of some wear parts,
our tube separator is the new generation upgrade product with the highest speed.
Tubular/tube centrifugal separator
Summary:
Tube centrifugal separator (also can be named tube centrifuge) is a high speed high separation
factor and high separation accuracy machine. It features small land area, easy of operation,
maintenance and cleaning, low energy consumption and environmental protection. It is the kind
of purely Physical Separate Machine.
It is suitable for separating turbid liquid or emulsion of very narrow difference in specific gravity or
fine granule. It is widely used in petroleum, chemical, pharmacy, biological and food industries,
etc.
The structure of this centrifuge is drive part, tray part, machine body, drum part and liquid inlet bearing block part.
The separation principle: materials are injected into drum part from bottom liquid inlet; then because of the high-speed rotating of drum, the materials will be separated according to different specific gravity;
clarified liquid will be discharged from the top outlet of drum, while the solids stay in the drum
and can be cleaned away by professional tool after its stop. So that to achieve solid-liquid separation, liquid-liquid separation or liquid-liquid-solid separation.
Different types:
(1) “GF”-Separation type (double or triple phase separation)
GF series tube centrifugal separator is mainly used to separate two kinds of immiscible
liquids or with few impurities. Under no emulsification, it can do the liquid-liquid separation or liquid-liquid-solid separation.
For example,
oilwater separation, blood separation (to separate the blood corpuscle from plasma in blood ), solvent separation, etc.
(2) “GQ”-Clarification type (only double phase separation)
GQseries tube centrifugal separator is mainly used to separate various suspension liquids
lower solid content; especially for suspension solid-liquid separation is of low concentration, fine granule, very narrow difference -liquid specific gravity.
For example,
extraction of bacteria (colibacillus, lactobacillus or Lactobacillus Bulgaricus, etc),
extraction of proteins, separation of fermentation liquor, separation of nanometer materials,
slag removal of drink, purification of coffee or liquid medicine, etc.

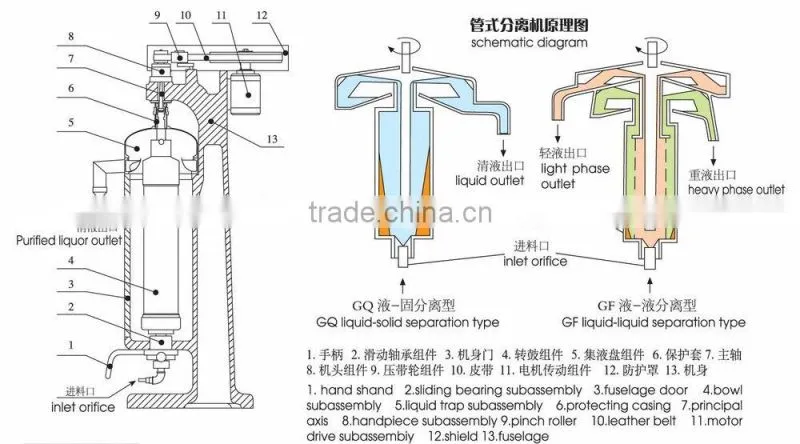

Flow diagram:
and
Technical parameter of “GF” and "GQ"Series:
Model |
GF/GQ-75 |
GF/GQ-105 |
GF/GQ-150 |
|
Drum |
Inner diameter (mm) |
75 |
105 |
142 |
450 |
730 |
738 |
||
Volume (L) |
2.2 |
6 |
11 |
|
Rotating speed (r/min) |
19000 |
18000 |
15000 |
|
Max. separation factor |
15100 |
19050 |
18000 |
|
Dia. of liquid inlet (mm) |
3,5,7 |
4,6,8 |
6,8,10 |
|
Pressure of liquid inlet |
>0.05MPa |
|||
|
Production capacity (L/h) (based on water only) |
~670 |
~1700 |
~3200 |
|
Motor (kw) |
1.5 |
3.0 |
3.0 |
|
Outline dimension (L*W*H) (mm) |
500×700×1300 |
630×900×1600 |
630×900×1600 |
|
Weight (Kg) |
200 |
480 |
510 |
|
Note: The prodcution capacity is based on water only, just for reference. Different feeding solution will of different production capacity.
PAY ATTENTION THAT:
Compared with similar products, the rotating speed of our machine is the real highest speed can be achieved at present. The higher rotating speed, the better separation effect.
PLEASE INDENTIFY THE ROTATING SPEED WHEN YOU CHOOSE MACHINE
