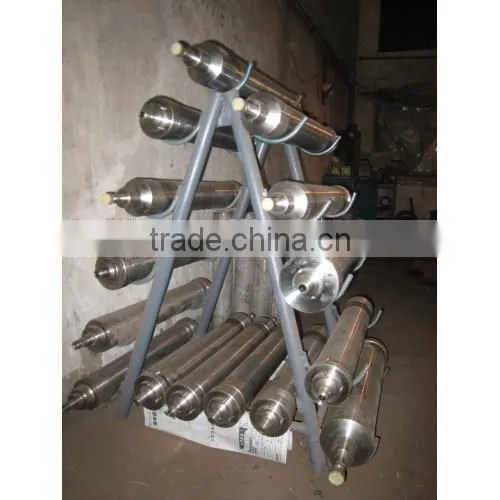

Help CenterHigh-speed Tubular Bowl Centrifuge With Low Price Selling in China Market
Related Products
Our High-speed Tubular Bowl Centrifuge is widely used in a variety of biological processes from cell
harvesting and clarifying to separations of chemicals, foods, blood and pharmaceuticals.
The centrifuge is characterized by their ability to process many times the volume of their tubular bowl.
Fluid mixtures are fed into the bottom of the rapidly rotating separating chamber of the centrifuge.Solids
are retained, while liquid components are expelled from the top of the chamber through a collection tray.
For liquid-liquid separations, two collection trays are used. The retained solids cake is dry and densely
packed by the high G-forces of the High-speed Tubular Bowl Centrifuge.
The most difficult separation tasks can often involve three phases, with hardly any difference in the density
of the separate liquid phases and with the particles to be separated very small in size. In such applications,
no other technology can compete with High-speed Tubular Bowl Centrifuge technology.
The optimum size centrifuge for a given application depends on the volume and properties
of the process liquid. Typical process volumes specified for each centrifuge are approximate.
Tubular Bowl Centrifuge operate at high speed, generating up to 20,000 gravities of centrifugal force,
causing solids to collect inside the smooth bore of the stainless steel tube where they are easily recovered.
Tubular Centrifuges are an excellent replacement for many traditional filter and membrane applications due
to their high efficiency (virtually no product loss) and small footprint.
Tubular Bowl Centrifuges have two types: GF Tubular Bowl Centrifuge and GQ Tubular Bowl Centrifuge.
GF Tubular Bowl Centrifuge
Model |
GF/GQ80 |
GF/GQ105 |
GF/GQ125 |
GF/GQ150 |
|
|
Drum |
ID(mm) |
75 |
105 |
125 |
147 |
Height (mm) |
450 |
730 |
730 |
730 |
|
Sedimentation volume(L) |
2.67 |
6 |
8 |
10 |
|
Max speed(r/min) |
21000 |
19000 |
17500 |
16000 |
|
Max separation factor |
22500 |
21000 |
21000 |
21000 |
|
Inlet nozzle diameter (mm) |
3/4/6 |
4/6/8 |
6/8/10 |
8/10/12 |
|
Material inlet pressure (Mpa) |
≥0.05 |
||||
Capacity (water capacity)L/H |
260 |
1600 |
2200 |
3200 |
|
Actually Capacity L/H(according to the solid content) |
50-80 |
300-500 |
500-700 |
800-1000 |
|
Motor model |
3 phase two pole motor |
||||
Motor power (kw) |
1.5 |
2.2 |
3 |
3 |
|
Machine dimension (mm) |
500*700*1300 |
600*1000*1600 |
600*1000*1600 |
600*1000*1600 |
|
Machine weight (kg) |
300 |
460 |
490 |
510 |
|
