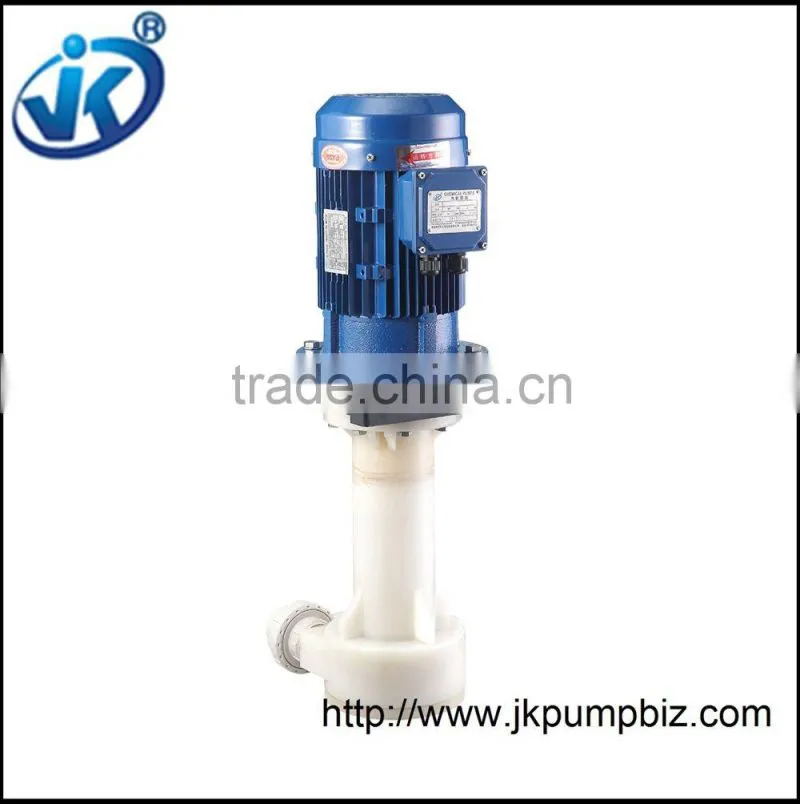

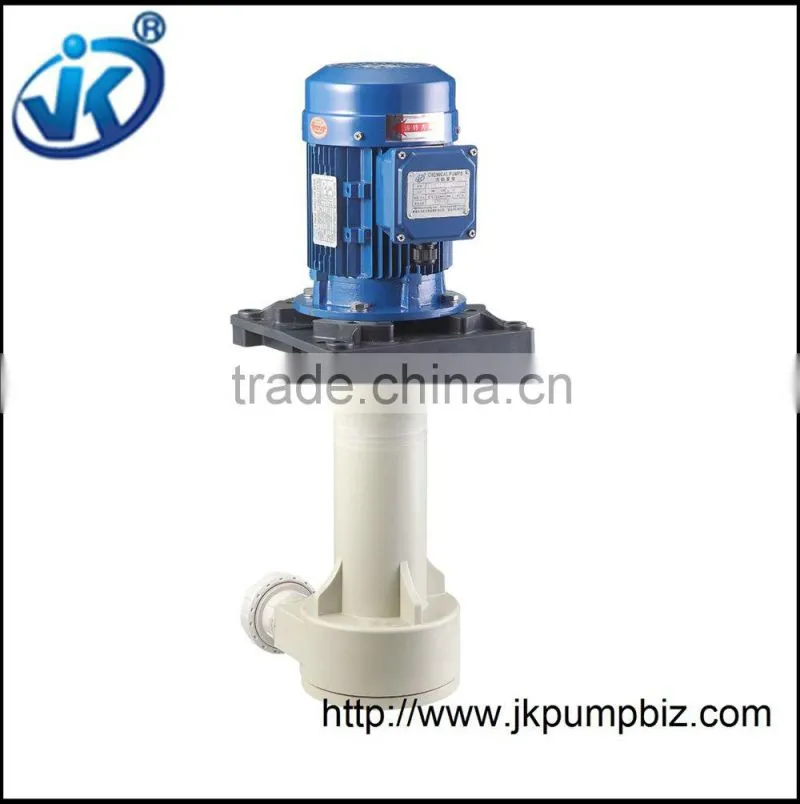

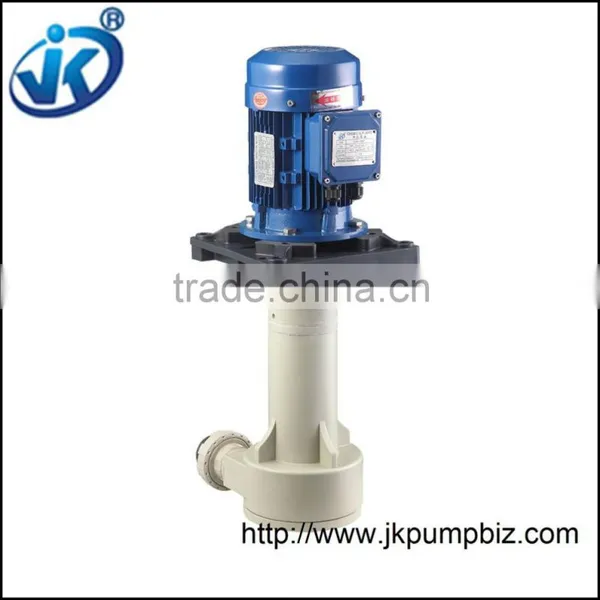

Single Phase Specification Of Submersible Vertical Chemical Pump For Industrial

1.Type:

JKT     40     SK      3        5        V        F

1          2        3        4        5        6        7

JKT:Model No.

Outlet diameter:32:1.25"         40-1.5"    50:2"

Specific gravity:SK-1.1 SP:1.4

Horsepower:1-1HP,2-2HP,3-3HP,5-5HP

Frequency:5:50HZ 6:60HZ

O loop:V:VITON E:EPDM N:NBR

Pump material:F:FRPP P:PVDF C:CFRPP

2. Features:

(1)This vertical chemical pump adopts FRPP, PVDF plastic material injection molding, can be used to a majority of chemical liquid and acid resistant, alkali-resisting. It could be idle running without any damage.

(2)vertical chemical pump is suitable for special occasions like all kinds of chemical circulation, cooling, cleaning equipment, exhaust tower, etching machine, chemical plating and nickel electroless.

(3)The chemical pumping design of dry shaft sealing could protect motor to prevent corrosive gas from damaging the shaft.

(4)Be fit to install it outside the groove, it can be used with filter.

Motor connection block could choose FRPP texture to reduce corrosion gas to damage the motor and prolong motor service life.

(5)The vertical chemical pump surface of motor could be painted with epoxy resin according to clients’ requirments, fastening screw could choose TI texture and use for different working places.

3. vertical chemical pump  Specification

1.There are four basic modes of transportation for your reference. They are water transport, rail transport,truck transport and air transport .

2.1.vertical chemical pumpPacking in the 7 plys carton box.

2.vertical chemical pump Packed with board or plywood outside for protection.

1.vertical chemical pump OEM order is accepted

2. We help to select the right pump

3. Interchangeable rubber and metal design

4. Perfect After-sales service and large stock

5. We provide lifetime after sale service

JKPUMPS is the biggest and the most professional chemical pump &chemical filter Manufacturer in china with more than 15 years of experience; Our enterprise have strong technical force, advanced equipment and technology, complete testing equipment , etc.

Our enterprise is committed to continually increase product varieties, improve product quality, self-development of molds and plastic injection, and combine with the international advanced technology. We insist on the principle “quality first, customers first, reputation first” and offer our customers with more high-quality and humanized products.
