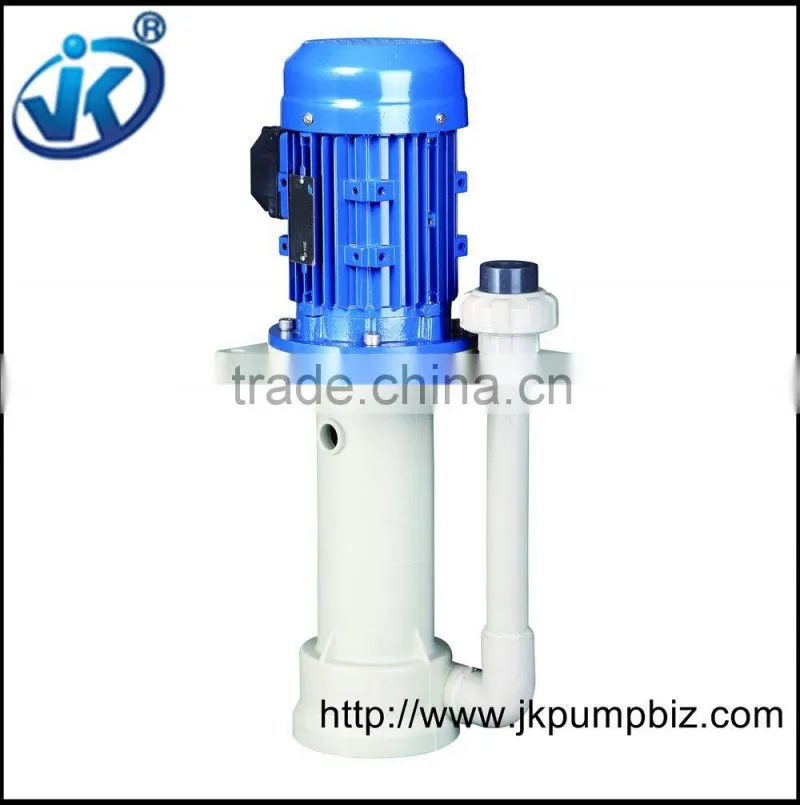

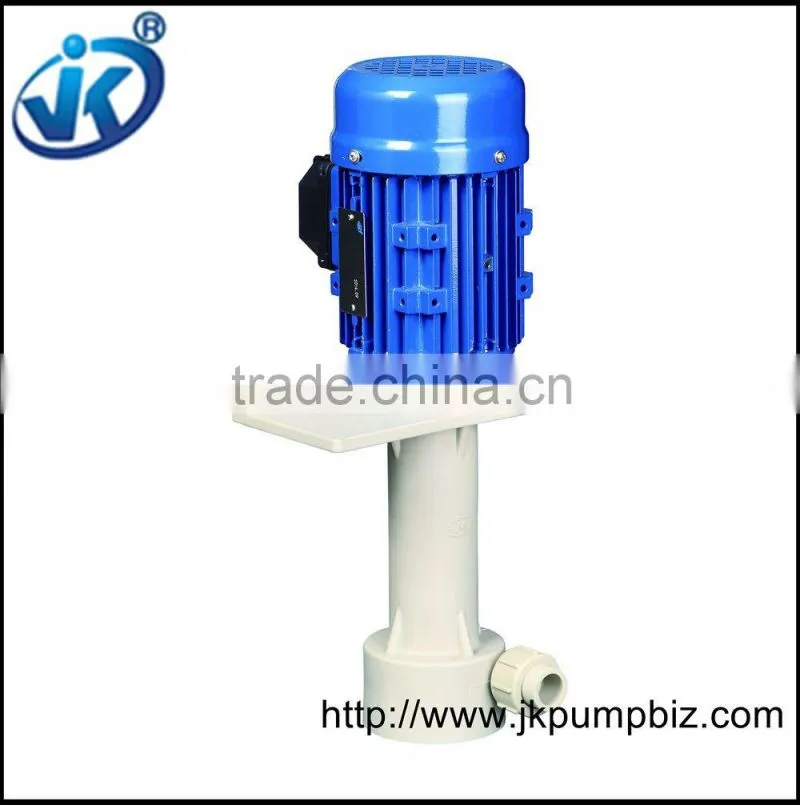

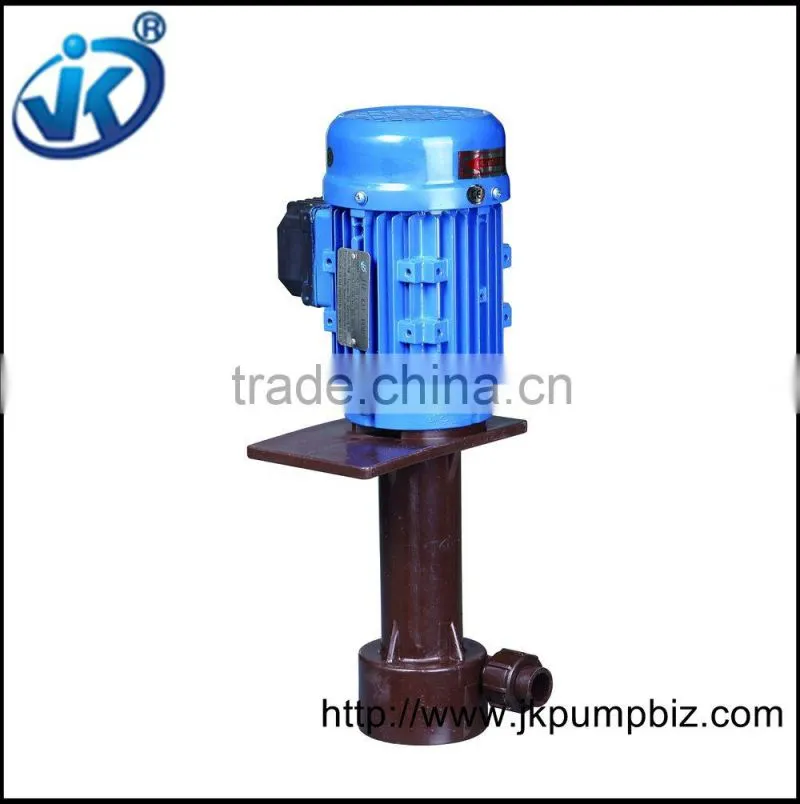

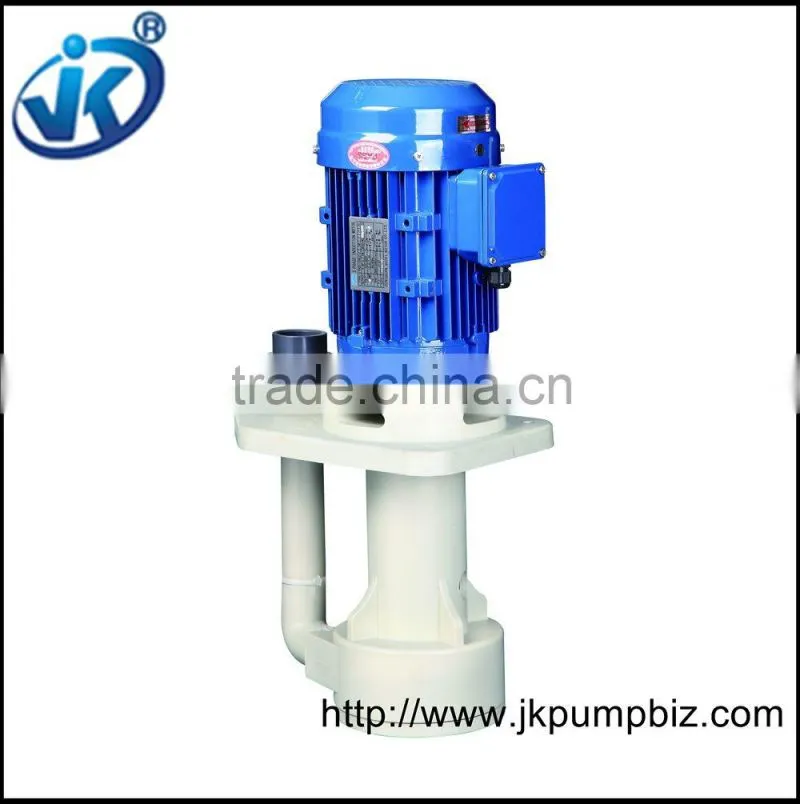

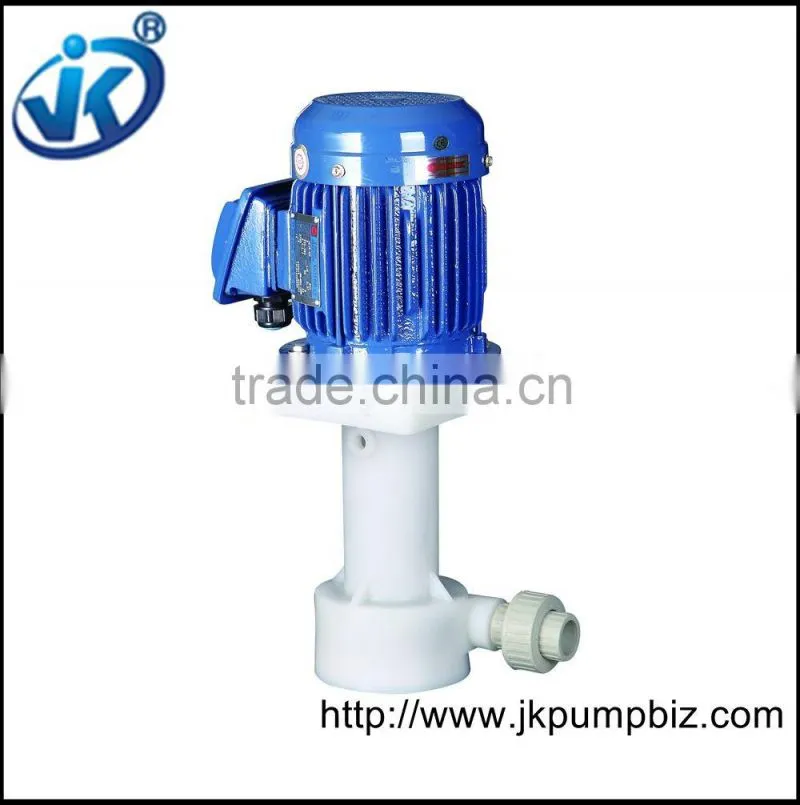

High Flow Low Head Electric Centrifugal Water Pump With High Quality
1.Type:
JKP 25 SK 1/2 5 V F W
1 2 3 4 5 6 7 8
- JKP:Model No.
- Outlet diameter:15:1/2" 20:3/4" 25:1"40:1.5″
- Specific gravity: SK:1.1 SP:1.4
- Horsepower:1/8:1/8HP,1/6"1/6HP, 1/2:1/2HP,1/4:1/4HP,1/3:1/3HP1:1HP,,2:2HP,3:3H,,4;4HP,5:5HP
- Frequency: 5:50HZ 6:60HZ
- O loop:V:VITON E:EPDM N:NBR
- Pump material:F:FRPP P:PVDF C:CFRPP
- Outlet elbow: w
2. Features:
(1)This high flow low head water pump adopts FRPP, PVDF engineering plastic injection molding with anti-corrosion, and it is suitable for all kinds of acid and alkali liquid conveying in the fields like circulation, etching machine cleaning, waste water disposal, eleetro painting and plating.
(2)The high flow low head water pump motor shaft adopts SUS304 and is shaped by special process inside the motor to ensure the concentricity is in regular operation.
(3)It could be idle running without any damage and has small volume, low noise and low vibration rate.
(4)The exits is all-purpose interface design. Clients could connect with different material pipes like PP, PVC according to their requirements.
(5)The motor of pump uses epoxy resin anticorrosive painting and it is not easy to rust. Protection grade is IP55 and F class insulation.
(6)Be fit to install it outside or inside the groove, it can be used with filter.
(7)Best price high flow low head water pump
3.Specification
1.There are four basic modes of transportation for your reference. They are water transport, rail transport,truck transport and air transport .
2.1.Packing in the 7 plys carton box.
2.Packed with board or plywood outside for protection.
1. OEM order is accepted
2. We help to select the right pump
3. Interchangeable rubber and metal design
4. Perfect After-sales service and large stock
5. We provide lifetime after sale service

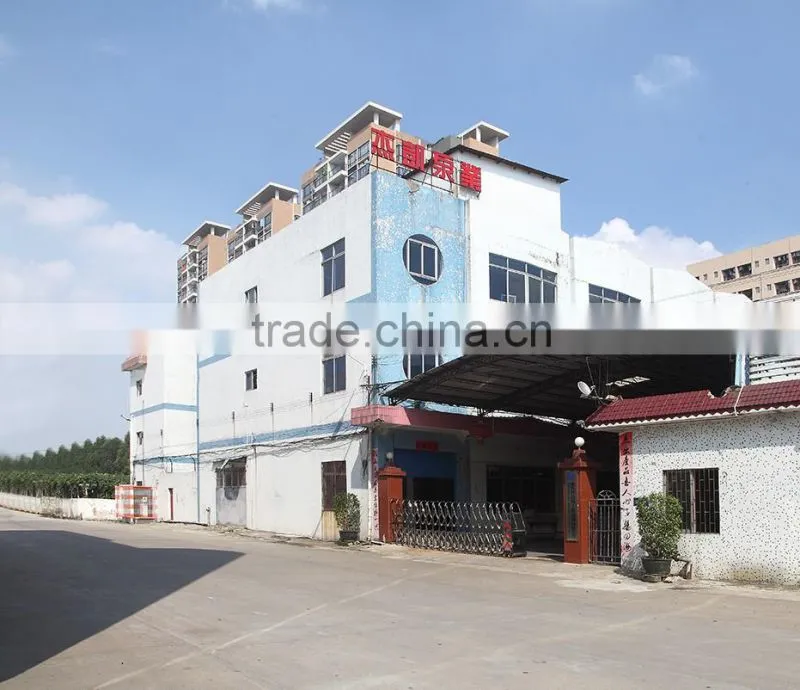

Dongguan Jiekai Industrial Equipment Co.LTD.is the biggest and the most professional chemical pump &chemical filter Manufacturer in china with more than 15 years of experience; Our enterprise have strong technical force, advanced equipment and technology, complete testing equipment , etc.
Our enterprise is committed to continually increase product varieties, improve product quality, self-development of molds and plastic injection, and combine with the international advanced technology. We insist on the principle “quality first, customers first, reputation first” and offer our customers with more high-quality and humanized products.
