Cut Metal Plate Plasma Cutting Table
Cut Metal Plate Plasma Cutting Table
1.Product features:
(1) Install easily
(2) Two cutting ways: flame or plasma.
(3) It is a high-efficiency, high-precision and high reliability cnc cutting equipment
(4) Double-side driving servo system, guarantees an excellent running performance.
(5) Optional dust proof work table or smoke removing device for a clean working environment.
(6) Optional plasma power for different materials cutting.
Cutting table main parameter
Model No. |
15/1830 |
15/1840 |
Cutting width (mm) |
1500/1800 |
1500/1800 |
Overall width(mm) |
2000/2200 |
2000/2200 |
Cutting length (mm) |
3000 |
4000 |
Overall length (mm) |
4620 |
5620 |
CNC system |
Hypertherm or China brand |
|
Cutting thickness |
depends on plasma supply power |
|
Cutting work table |
Normal or dust proof work table(optional dust proof) |
|

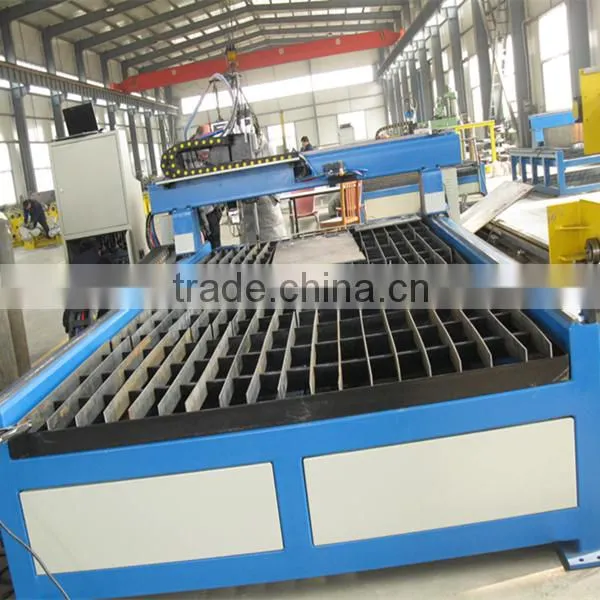

2.Pictures for reference
3. Mechanical Accuracy
1. Installation accuracy of guide rail:
1) Straightness accuracy of main rail ±0.2mm/10m
2) levelness between two rails ±0.5mm/10m
3) Longitudinal levelness of main rail ±0.2mm/m; ±2mm/ overall length
4) Parallelism between two rails <±2mm/ rail space
2. Machine precision:
a. Longitudinal effective stroke >nominal size 20mm
b. Transverse effective stroke > nominal size 10mm
c. Linear positioning accuracy ±0.1mm/10m
(1000×1000mm Comprehensive graphics detection) GB deviation≤±0.3mm
d. Linear repeat accuracy ±0.4mm/10m
e. Torch stroke ≤170mm
f. Cutting speed ±5% of setting speed
g. Automatic lifting precision ±0.5mm
3. Comprehensive machine precision:
a. Length deviation(four sides) 0.3mm
b. Diagonal deviation 0.3mm
c. Back to the origin of the deviation 0.2mm
d. Diagonal straightness accuracy 0.3mm
e. Intersection deviation 0.3mm
f. Linear deviations 0.2mm
g. Entire machine positioner precision 0.1mm
Standard plywood packing
Certification
CE and ISO9001:2008
After-sale service
♥ Warranty : one year
♥ Engineers available to serve machine overseas
♥ Strict factory inspection
♥ Complete equipment manual
♥ Online instruction
♥ Provide all components on equipment
Jinan GT Machinery Co.,Ltd ,the trading department of Jinan Huafei CNC Machine Co, Ltd is a professional CNC machine manufacturer, which specializes in designing, producing and trading together. The company mainly produce and sell automatic welding equipment, cnc cutting machine, and uncoiling production line. Since establishment, the company has built long-term good cooperation with plenty of customers home and abroad, the products have been exported to many countries including United States, Canada,Australia, Indonesia, India, Sri Lanka, Burma, Iran, Spain, Brazil, Peru, Russia, Azerbaijan, Kazakhstan, Uzbekistan etc.
Leading-edge R&D team, strict modern enterprise management, professional sales and timely after-sale service make our brand popular. We supply better service when quality is the same, more competitive price when service is the same. Whenever and wherever, we will offer you the most cost-effective products.
From strangers to business partners, it takes just one step. Let us break the ice, establish business from your calling or email. Our one-stop full service will satisfy you from beginning to end.
Service purpose:
Our professional sale and after-sale service give you a faithful feel.
Thanks for your inquiry and welcome to visit our company. Any question, please feel free to contact us!
