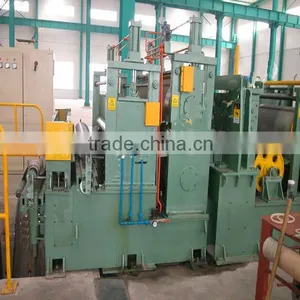

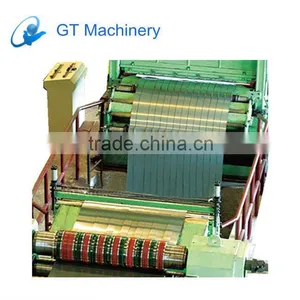

Automatic slitting machine with adopted EPC automatic edge control
1.Thin plate slitting line (0.2-3mm)

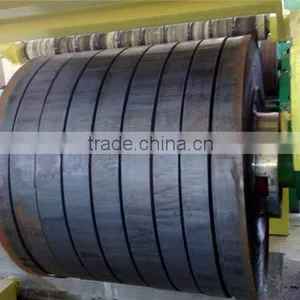

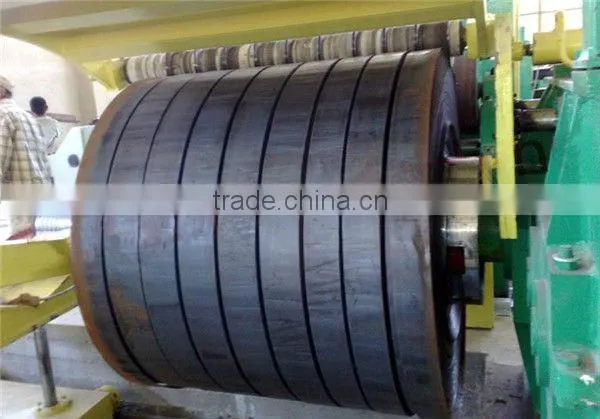

This line is Used for steel plate coil to uncoiling, slitting, recoiling to required steel strips. This line apply to hot rolled carbon steel, tinplate, stainless steel and other different kinds of surface plated metal.
This line is used for steel plate coil to uncoiling, slitting, recoiling to required steel strips. This line apply to hot rolled carbon steel, tinplate, stainless steel and other different kinds of surface plated metal.
for the user with higher requirement, uncoiling with automatic edge aligning or centering is preferable, which has the advantage of easy entering coil, high working efficiency, improving cutting precision and protecting plate as well. EPC automatic edge control can be adopted as well, which can guarantee recoiling in tidiness, especially for the wider recoiling

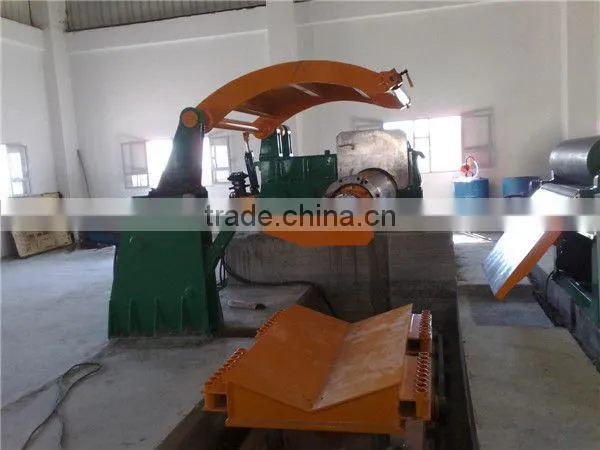

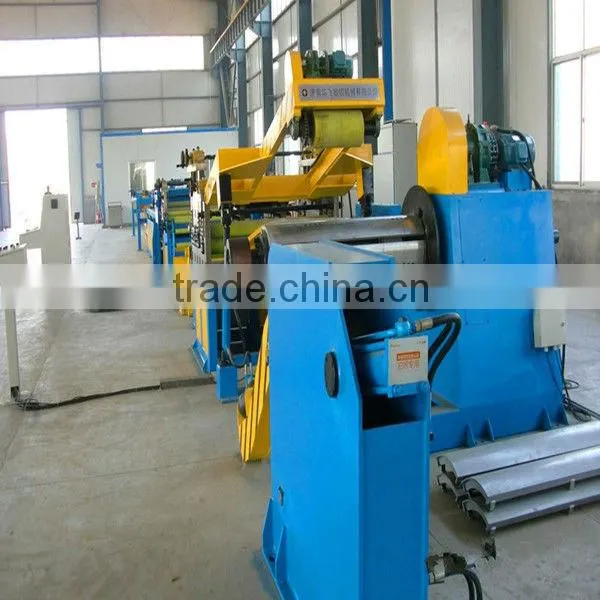

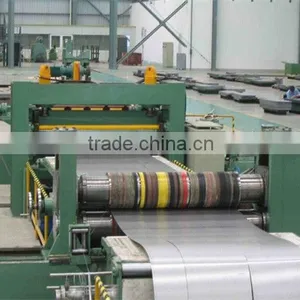

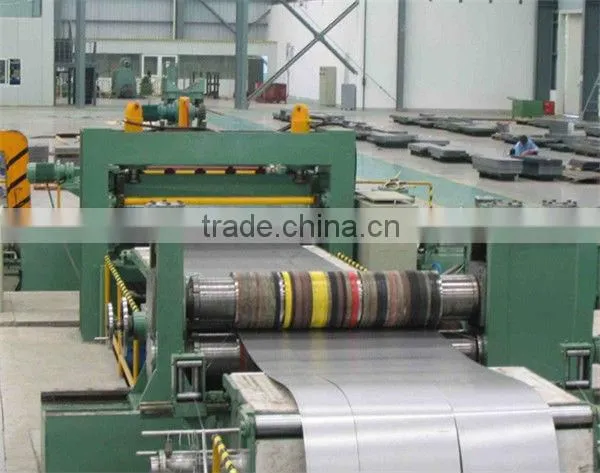

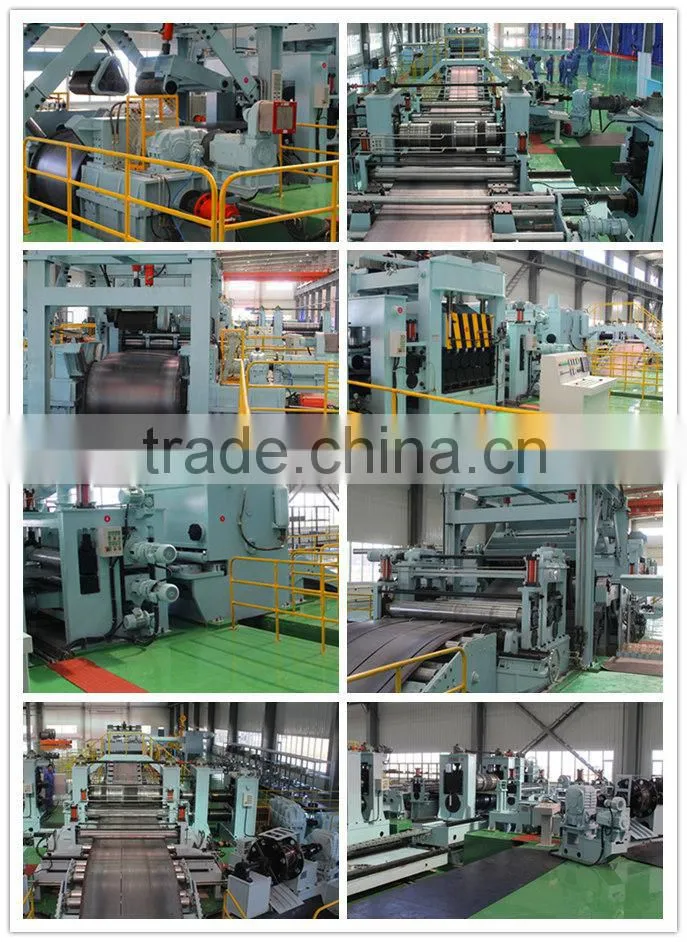

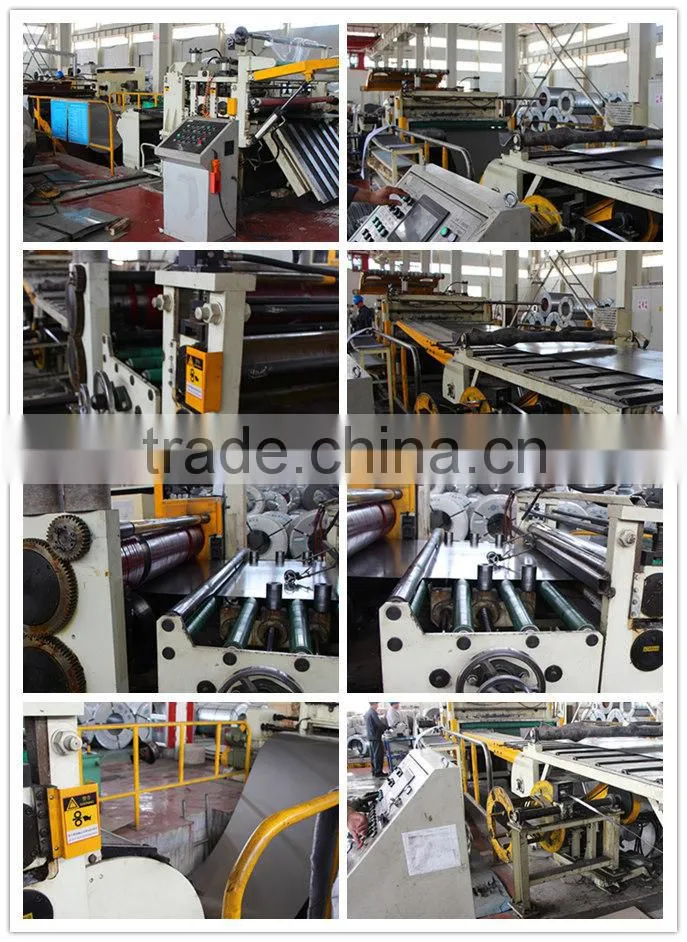

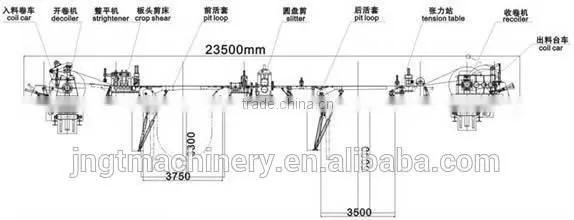

This line is composed of entry coil car, uncoiler, feeding in device, leveler, head shearing device, loop pit, side guide, slitting device, scrap winder, tension unit, recoiling machine, unloading device.etc.
This production line Hydraulic system main parts adopt Germany BOSCH-REXROT components and seals, electrical control adopt Japan Mitsubishi PLC program controller main motor of leveler and slitting device adopts high power DC motor, DC controller adopts ETD products, speed of uncoiler, slitting device and recoiling machine controlled by high-performance electric, able to achieve matched speed. This production line has high degree of automation, can process high strength thick plate, little amount of wrong side recoiling coil, has stable and reliable performance, easy operation and maintenance, etc
MAIN TECHNICAL DATA
|
Model No. Parameter |
Cutting thickness (mm) |
Cutting thickness (mm) |
Slitting quantity |
Width precise (mm) |
Coil weight (T)
|
Slitting speed(mm/min) |
Remark |
HFSL-2×400 |
0.2-2 |
100-400 |
20-5 |
±0.05-0.1 |
5T |
100 |
Technical data, configuration can according to customer requirement. |
HFSL-2×800 |
0.2-2 |
100-800 |
30-5 |
±0.05-0.1 |
8T |
120 |
|
HFSL-2×1300 |
0.2-2 |
400-1300 |
30-5 |
±0.05-0.1 |
8T |
120 |
|
HFSL-2×1600 |
0.2-2 |
400-1600 |
40-5 |
±0.05-0.15 |
10T |
150 |
|
HFSL-3×1600 |
0.3-3 |
500-1600 |
40-5 |
±0.1-0.2 |
15T |
150 |
|
HFSL-3×1800 |
0.3-3 |
500-1800 |
40-5 |
±0.1-0.2 |
15T |
150 |
2. Medium and thick plate slitting line (4-12mm)
This line is used for steel plate coil to uncoiling, slitting, recoiling to required steel strips. This line apply to hot rolled carbon steel, tinplate, stainless steel and other different kinds of surface plated metal.
This line is used for middle and thick hot rolled steel plate coil to uncoiling,slitting, recoiling to required steel strips. This line apply to hot rolled carbon steel, thick aluminum coil, stainless steel and other different kinds of surface plated metal.

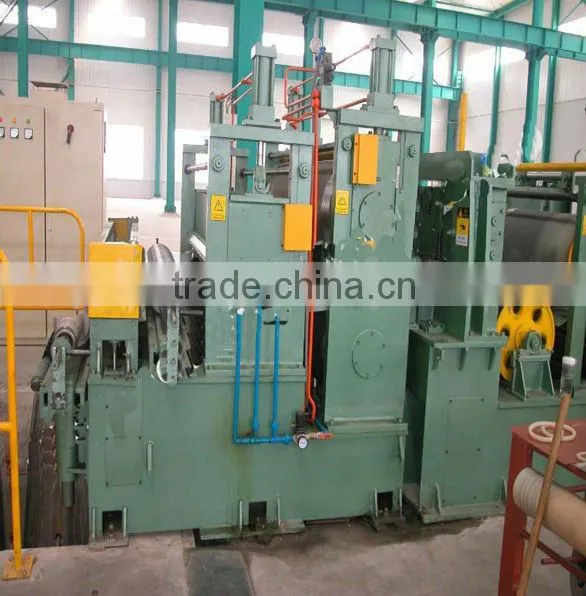

This line is composed of entry coil car, uncoiler, feeding in device, simple leveler, head shearing device, Side Guide, thick plate slitting device, scrap winder, tension unit, recoiling machine, unloading device.etc.
This production line Hydraulic system main parts adopt Germany BOSCH-REXROT components and seals, electrical control adopt Japan Mitsubishi PLC program controller main motor of leveler and slitting device adopts high power DC motor, DC controller adopts ETD products, speed of uncoiler, slitting device and recoiling machine controlled by high-performance electric, able to achieve matched speed. This production line has high degree of automation, can process high strength thick plate, little amount of wrong side recoiling coil, has stable and reliable performance, easy operation and maintenance, etc
This production line Hydraulic system main parts adopt Germany BOSCH-REXROT components and seals, electrical control adopt Japan Mitsubishi PLC program controller main motor of leveler and slitting device adopts high power DC motor, DC controller adopts ETD products, speed of uncoiler, slitting device and recoiling machine controlled by high-performance electric, able to achieve matched speed. This production line has high degree of automation, can process high strength thick plate, little amount of wrong side recoiling coil, has stable and reliable performance, easy operation and maintenance, etc
MAIN TECHNICAL DATA
|
Model No.
Parameter |
Cutting thickness (mm) |
Coil width (mm) |
Slitting quantity |
Width precise (mm) |
Coil weight (T) |
Slitting speed (mm/min) |
Remark |
HFSL-4×1600 |
1-4 |
500-1600 |
20-5 |
±0.1-0.2 |
20T |
40-60 |
Technical data, configuration can according to customer requirement. |
HFSL-6×1600 |
1-6 |
500-1600 |
15-5 |
±0.2-0.3 |
25T |
30-50 |
|
HFSL-6×2000 |
1-6 |
500-2000 |
15-5 |
±0.2-0.3 |
30T |
30-50 |
|
HFSL-8×1600 |
2-8 |
500-1600 |
15-5 |
±0.3-0.5 |
30T |
20-30 |
|
HFSL-10×1600 |
2-10 |
500-1600 |
10-5 |
±0.5-0.8 |
30T |
15-20 |
|
HFSL-12×1600 |
3-12 |
500-1600 |
10-5 |
±0.5-0.8 |
30T |
15-20 |
Standard plywood packing
Certification
CE and ISO9001:2008
After-sale service
♥ Warranty : one year
♥ Engineers available to serve machine overseas
♥ Strict factory inspection
♥ Complete equipment manual
♥ Online instruction
♥ Provide all components on equipment

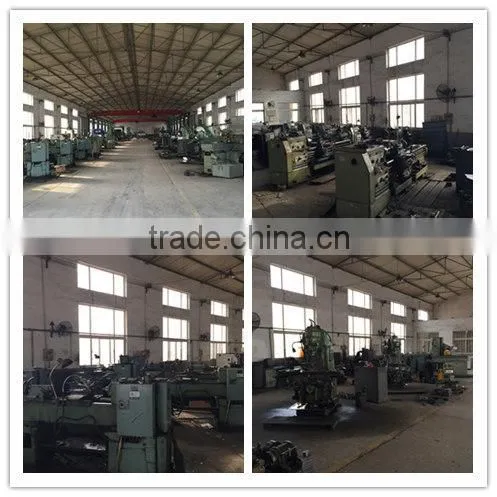

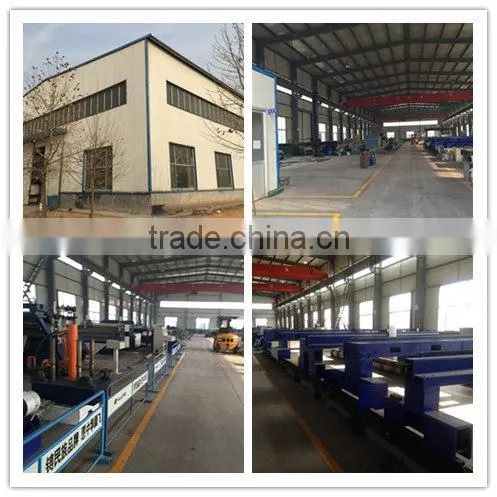

Jinan GT Machinery Co.,Ltd ,the trading department of Jinan Huafei CNC Machine Co, Ltd is a professional CNC machine manufacturer, which specializes in designing, producing and trading together. The company mainly produce and sell automatic welding equipment, cnc cutting machine, and uncoiling production line. Since establishment, the company has built long-term good cooperation with plenty of customers home and abroad, the products have been exported to many countries including United States, Canada,Australia, Indonesia, India, Sri Lanka, Burma, Iran, Spain, Brazil, Peru, Russia, Azerbaijan, Kazakhstan, Uzbekistan etc.
