High Flow Rate 8 Inches Industrial Water Pump for Sale

 1. Type:

JKH--40   SK    3    5    V   F

1         2      3     4    5     6     7

1. JKH:Model No.
2. Outlet diameter: 40:1-1/2'' 50:2''
3. Specific gravity:SK:1.1 SP:1.4
4. Horsepower: 1:1HP,2:2HP,3:3HP,5:5HP,7.5:7.5HP,10:10HP
5. Frequency:5:50HZ 6:60HZ
6. O ring:V:VITON E:EPDM N:NBR
7. Pump material:F:FRPP

2. Features:

(1)This industrial  pump adopts FRPP plastic material injection molding, can be used to a majority of chemical liquid and acid resistant, alkali-resisting.

(2)the industrial pump  suitable for special occasions like all kinds of chemical circulation, cooling, cleaning equipment, exhaust tower, etching machine, chemical plating and nickel electroless.

(3)The pump adopts dry shaft sealing design.It could be idle running without any damage. Motor end cover has oil seal design to ensure acid gas won’t easily go into motor shaft so that it could protect motor and prolong its service life.

(4)The motor shaft adopts SUS304 and titanium shaft and is shaped by special process inside the motor to ensure the concentricity and durability is in regular operation.

(5)The unique design of passageway has following advantages, such as high pressure, high efficiency, low noise, no leakage and easy to maintenance.

(6)The surface of motor could be painted with epoxy resin according to clients’ requirments, fastening screw could choose TI texture. Motor rotation axis could choose SUS304 and titanium material.

(7)It could be used in different workplaces.

(8)Be fit to install it outside the groove, it can be used with filter.

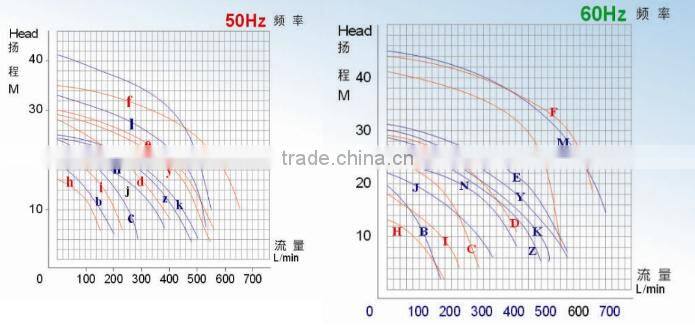

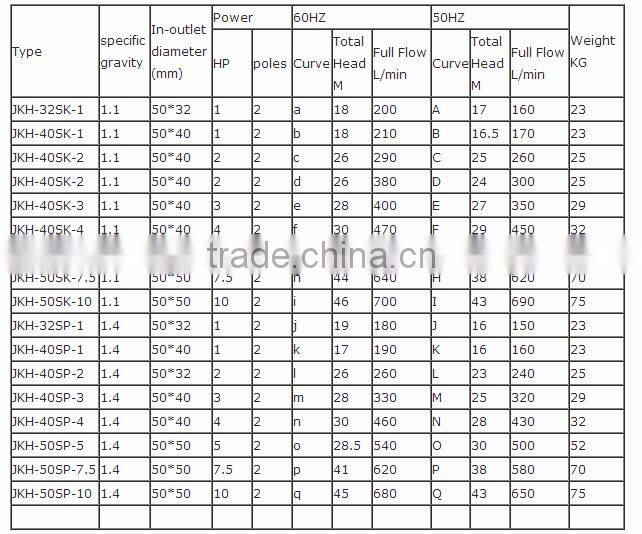

3.Specification

4.

1.There are four basic modes of transportation for your reference. They are water transport, rail transport,truck transport and air transport .

2.the industrial pump Packing in the 7 plys carton box.
2.Packed with board or plywood outside for protection.

JKPUMPS is the biggest and the most professional chemical pump &chemical filter Manufacturer in china with more than 15 years of experience; Our enterprise have strong technical force, advanced equipment and technology, complete testing equipment , etc.

Our enterprise is committed to continually increase product varieties, improve product quality, self-development of molds and plastic injection, and combine with the international advanced technology. We insist on the principle “quality first, customers first, reputation first” and offer our customers with more high-quality and humanized products.
