Introduction Chain Type Turning Over Flipping Machine

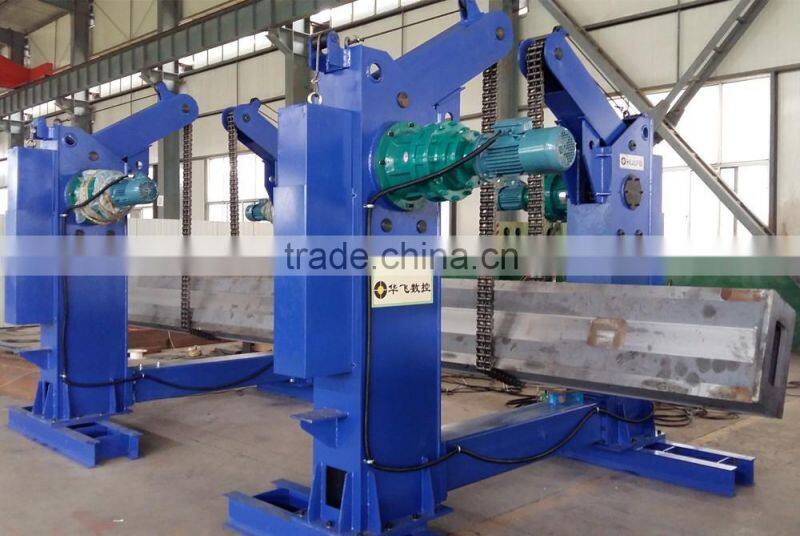

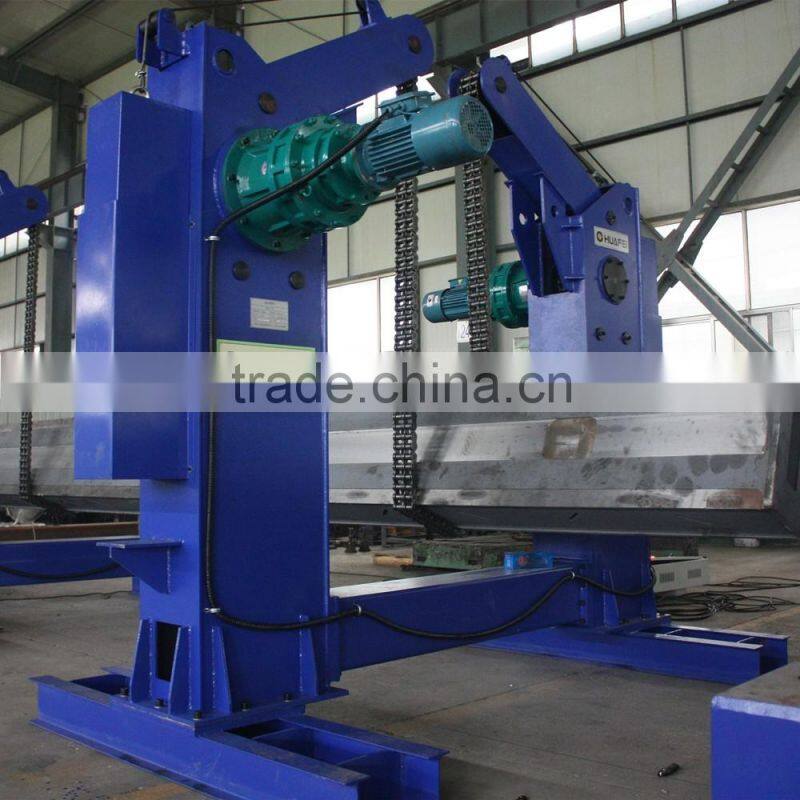

1) The flipping tires work on turning products in 360 degree so as to adjust the position of the product. The equipment structure is like upside-down gantry type. It has four reducer to control the product piece and very convenient to apply when flipping.

2) The flipping tires are consist of swing arm, pillar and reset device, electric control and operating system. It also includes four standing columns attached with driving mechanism on each top. The brake motor controls the cyclonical pinwheel reducer to drive the sprockets.

3) The chain wheel is equipped with two pulley, the pulley installed on the swing arm. On the role of the pulley is change the movement direction of the chain and chain extension. There is a guide wheel close to the bottom of the chain wheel that use for increasing the angle on the sprocket chain.

4) By using the post box welded structure, with enough stiffness and strength, the four standing columns are capable of using a long period with outstanding stability.

5) There are a swing arm and a heavy hammer device on the standing columns. When the work piece need to flip, the swing arm goes downward with a certain angle. If there is no need to flip over the work piece, the swing arm is raised, and the chain is loosen, so as to make the work piece either delivered neatly.

6) The flipping tires have lifting chain to rotate the work piece, so as to solve the problem of work piece turn slipped. There are four reducers can turn direction, either same-directional or reverse rotation. Same-directional rotation is to flip artifact, and reverse rotation is to lift artifacts.

7) To reach the length requirement of work pieces, one side standing columns are designed fixed while the other side of two columns respectively equipped with a sliding seat. Please fix both sides before use.

8) Control system includes: main control cabinet hand control box, hand control box with 15 meters cable connected to the control cabinet, hand control box can be used in different location of the equipment to operate equipment.

9) The manual operation box and master ark with buttons, such as power up, stop, reverse direction selector switch and abrupt stop button.

10) Control system has motor over-current, over-voltage and over torque protection.

11) Control system is equipped with temperature detection device, stop and alarm when over-temperature.

12) Control system has simple and convenient operation, reliable operation. The operation can be close to control or remote control operation, and it is convenient to the operator at any location.
