Packaging:wooden box.
Shipping:with one week.
Specifications
Oil Tubular Separator
Waste oil Separator
Oil water Separator
Best Quality EXPORT TO EUROPE, USA, SOU
The oil water tubular separator not only used in oil and water separation, but also those immiscible material separation.
It removes very fine impurity from oil up to 0.5 micro & below. At the same time, it remove the water(or others insoluble in oil) from the oil. By adopting the latest technology and high grades of raw material, we are able to manufacture a wide range of centrifuge machines that are of unsurpassed quality. These machines are high in terms of performance and consume low power and water.

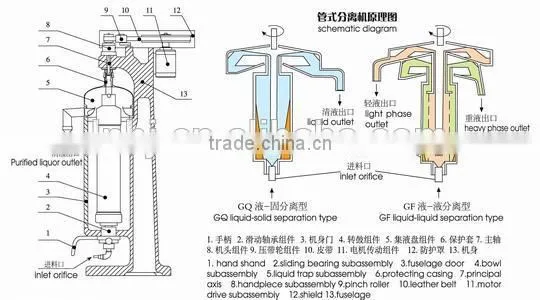

Inside the centrifugal separator a rotor rotating at speeds up to 16000 RPM, creates huge centrifugal forces greater than gravity. This removes dirt and contaminants out of oil, which is deposited on the inner wall of the rotor as a thick layer. The collected dirt can be easily cleaned.
This kind of can be used in:
1)separation of biodiesel and glycerine(glycerin), separation of biodiesel and water, biodiesel drying and purification
2)separation and clarification of machine oil, lubricant oil, base oil etc
3)vegetable oil degumming, dewaxing etc
4)animal oil polishing
5)essential oil recovery from citrus fruits such as oranges, lemons, tangerines and limes
| Type | Q/GF57 | GQ/GF80 | GQ/GF105 | GQ/GF125 | GQ/GF150 |
| Inner diameter of the drum(mm) | 57 | 80 | 105 | 125 | 150 |
| Height of the drum(mm) | 240 | 450 | 730 | 730 | 730 |
| Seimentation volume(L) | 0.38 | 2.67 | 6 | 8 | 10 |
| Max Speed(R/min) | 30000 | 21000 | 19000 | 17500 | 16000 |
| G-force | 28500 | 22500 | 21000 | 20000 | 19000 |
| Inlet nozzle diameter(mm) | 2/2.5/3 | 3/4/6 | 4/6/8/10 | 6/8/10 | 8/10/12 |
| Material inlet pressure(Mpa) | ≥0.05 | ≥0.05 | ≥0.05 | ≥0.05 | ≥0.05 |
| Water through capacity(L/H) | 267 | 670 | 1600 | 2200 | 3200 |
| Motor | High speed DC motor | 3pole two pole motor | 3pole two pole motor | 3pole two pole motor | 3pole two pole motor |
| Motor power(Kw) | 0.55 | 1.5 | 2.2 | 3.0 | 3.0 |
| Dimenstion(mm) | 310*280*530 | 500*700*1300 | 600*1000*1600 | 600*1000*1600 | 600*1000*1600 |
| Machine weight(Kg) | 80 | 300 | 460 | 490 | 510 |

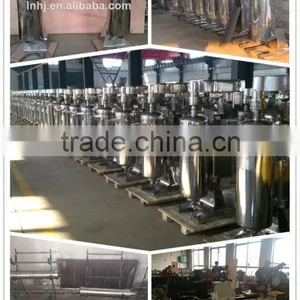

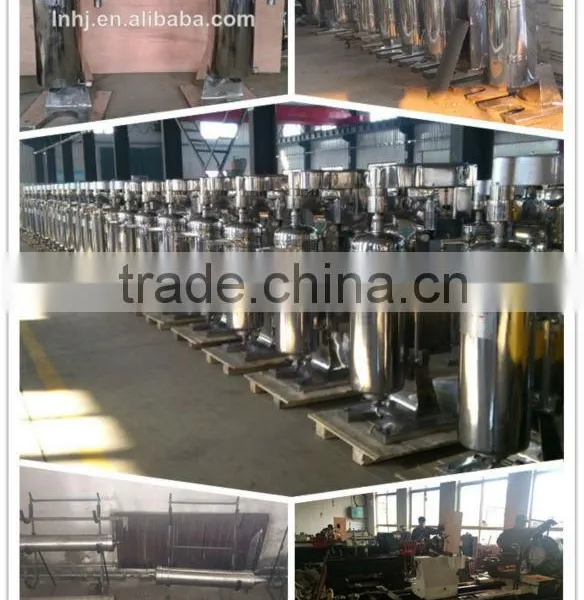

Oil Centrifuge Separator Photos Showing:
]
Company Service for Oil Centrifuge Separator
We, Liaoyang Hongji Machinery CO.,LTD, We wil provide the most environment-friendly and safe products with high-quality at most favorable price for the customer, together with perfect after service.
--Packing
1.Machines are wrapped in plastic bags first before being convolved with straw rope.
2.Then the machine is putted in strong iron sheet case/wooden case, lined with metal wire if necessary.
--Payment Term
T/T, Western Union, L/C, Escrow, D/P, D/A, Paypal or can be negotiated.
--Delivery Time
We will send you the machine within 3-10 working days after receive your down payment
--Guarantee
Two years. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer.
We can provide youthe spare parts with production cost all the year round.
Contact Details for Oil Centrifuge Separator
If you are interested in our oil centrifuge separator, please kindly send me email or call me directly, I will reply you asap. Thanks!
