Specifications
Our products are special used for separate water and impurities from oil.
SpecificationsCoconut Oil Separator to Extract Virgin Coconut Oil
1.Stainless steel
2.Extract virgin coconut oil from coconut milk
3.ISO,BV
Coconut Oil Separator to Extract Virgin Coconut Oil
Brief Introduction Our coconut oil separator is widely used in the area of pharmaceutical, chemical, food and beverage, and etc. It is used for separating various emulsion, especially adaptable for liquid-liquid separation with slight gravity difference and liquid-liquid-solid separation with a little foreign matter, such as separation of various oil and micropowder, extract liquid from plants, separation of plasma and cell. Can separate the coconut oil emulsion and olive oil mixture.

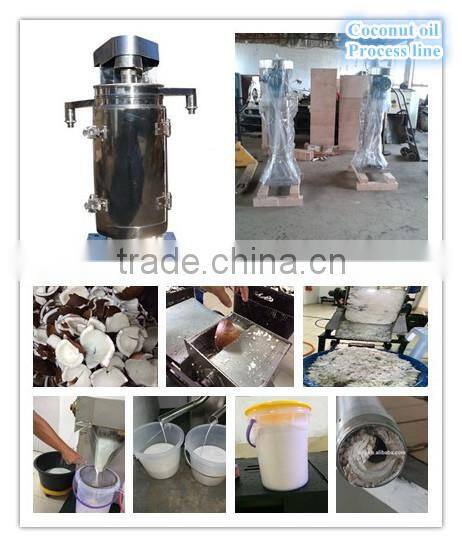

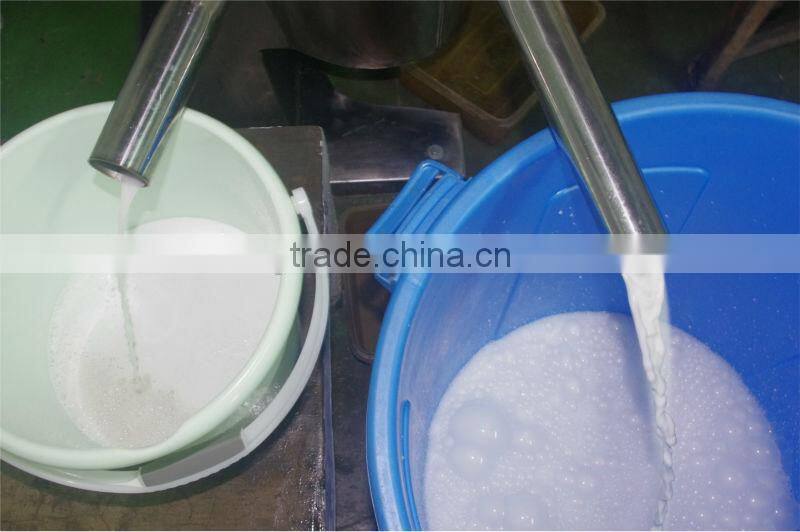

Coconut Oil Separator Photos Showing
The coconut oil separator is consisted of main body, driving device, bowl collecting pan and liquid-in bearing seats. The upper of the bowl is flexible mainshaft and the lower of it is damp floating. The mainshaft is connected with a driven wheel by the coupling seat with the buffer. The power is transmitted to the driven wheel by the motor through the transmission belt and the tensioner to make the bowl rotate around its axis at an overspeed and form a strong centrifugal force field. The product sprays into the liquid inlet from the bottom and liquid is forced to flow upward along the inner wall of the bowl and then is separated into different layers according to different density.
Parameter for Coconut Oil Separator
| Type | GF80 | GF105 | GF125 | GF150 |
| Diameter of the bowl(mm) | 80 | 105 | 125 | 150 |
| Effective Height of the bowl(mm) | 450 | 730 | 730 | 730 |
| Bowl volume(L) | 2.67 | 6 | 8 | 10 |
| Max speed(r/min) | 21000 | 17000 | 16000 | 15000 |
| Maximum separation factor | 22500 | 21000 | 19000 | 18000 |
| Inlet nozzzle diameter(mm) | 3/4/6 | 4/6/8/10 | 6/8/10 | 6/810/12 |
| Material inlet pressure(Mpa) | ≥0.05 | ≥0.05 | ≥0.05 | ≥0.05 |
| Capacity | 50-80L | 200-300L | 300-400L | 400-500L |
| Motor model | 3phase two pole motor | 3phase two pole motor | 3phase two pole motor | 3phase two pole motor |
| Motor power | 1.5kw | 2.2kw | 3.0kw | 3.0/4.0kw |
| Dimension of the machine | 500*700*1300mm | 600*1000*1600mm | 600*1000*1600mm | 600*1000*1600 |
| Machine weight(Kg) | 300 | 490 | 510 | 530 |

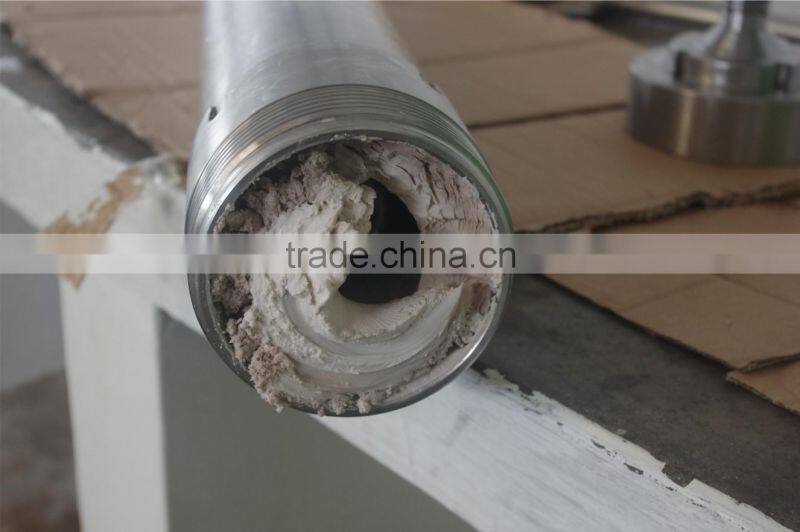

solid in the drum show:

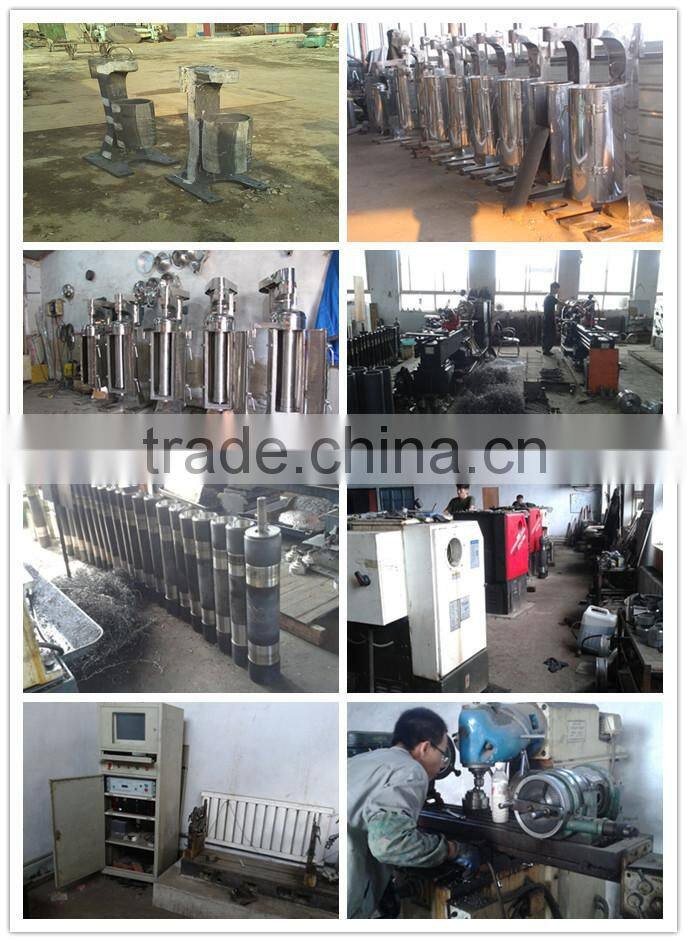

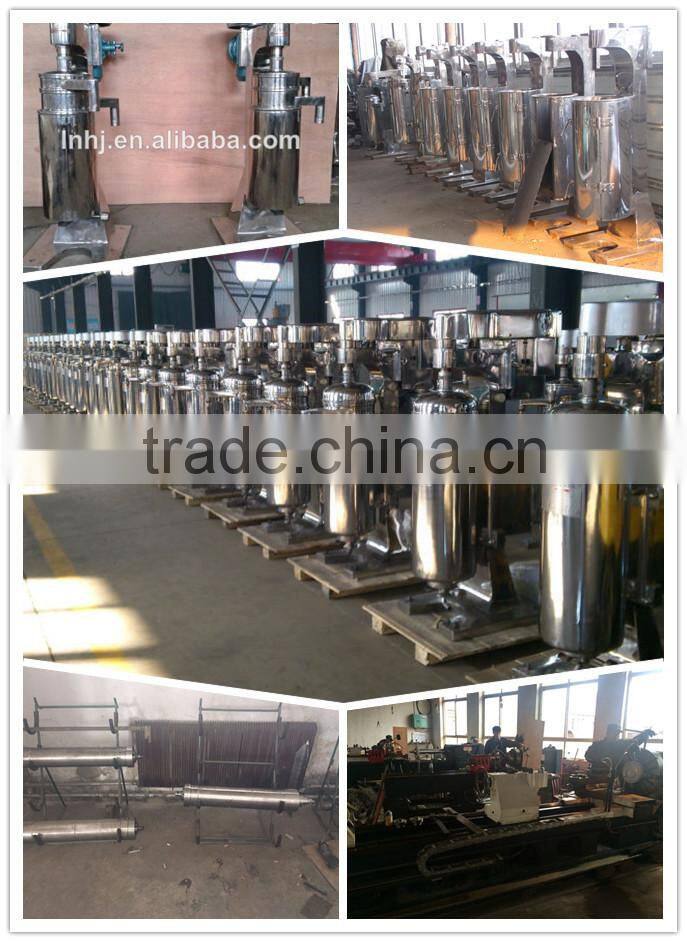

Company Service for Coconut Oil Separator
We, Liaoyang Hongji Machinery CO.,LTD, We wil provide the most environment-friendly and safe products with high-quality at most favorable price for the customer, together with perfect after service.
Packing :
1.Machines are wrapped in plastic bags first before being convolved with straw rope.
2.Then the machine is putted in strong iron sheet case/wooden case, lined with metal wire if necessary.
Payment Term
T/T, Western Union, L/C, Escrow, D/P, D/A, Paypal or can be negotiated.
Delivery Time We will send you the machine within 3-10 working days after receive your down payment.
Guarantee Two years.
Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. We can provide youthe spare parts with production cost all the year round. Contact Details for Coconut Oil Separator If you are interested in our coconut oil separator, please kindly send me email or call me directly, I will reply you asap. Thanks!
