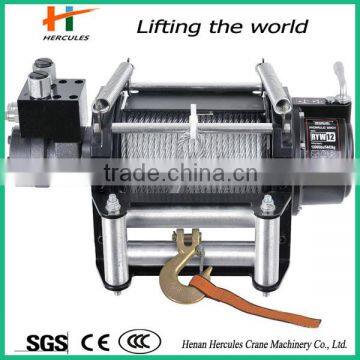

DC 12V Heavy Duty Electric Winch with CE
Products Introduction
Winch Controls
Most recovery winches come with either a corded remote or a wireless remote. The remote control allows you to operate the winch from a safe distance or from inside the cab of your vehicle.
Your remote should include a "power in" and "power out" button to control the direction of the cable. If you need to power out a lot of cable, we recommend free spooling to save battery power. On most remotes, the "power in" button will only power the cable when the button is depressed. As soon as you let go of the button, the cable will stop.
If you're winching with a corded remote from inside your vehicle, roll down the window to bring the remote into the cab. Don't pinch the cord in the door or window.
If your recovery winch comes with a corded remote, you can always upgrade the remote with a wireless winch kit later on.
Freespool Clutch
Recovery winches include a clutch or freespool knob that allows you to manually spool out the winch cable. We recommend freespooling cable out to the anchor point rather than powering out.
Make sure the freespool knob or clutch is fully engaged or fully disengaged before using the winch. The winch may not operate correctly if the clutch is not fully in position.
Technical Specification
| Pull, Speed, Amperes, Volts (First layer): | ||||
| Line Pull | Line Speed ft/min (m/min) | Current A | ||
| Ibs (kgs) | 12V DC | 24V DC | 12V DC | 24V DC |
| 0(0) | 20.7(6.3) | 25.9(7.9) | 80 | 70 |
| 4000(1814) | 12.5(3.8) | 13.5(4.1) | 230 | 150 |
| 7000(3175) | 9.5(2.9) | 10.8(3.3) | 290 | 200 |
| 10000(4536) | 6.2(1.9) | 8.5(2.6) | 360 |
245 |
Line pull and cable capacity
| Layer of cable | 1 | 2 | 3 | 4 | |
| Rated line pull per layer | Lbs | 9500 | 8000 | 7200 | 6600 |
| Kgs | 4310 | 3629 | 3266 | 2994 | |
| Cable capacity per layer | Ft. | 19.6 | 43 | 72 | 92 |
| M | 6.0 | 13.2 | 22 |
28 |
|
Factory View
Buying Guides
Pre-sale services: We can provide you with project design, process design, suitable purchase program for your equipment.Also design and manufacture products based on your specific needs, to train your technical personnel.
Sale: We will accompany you to complete the equipment inspection, construction plan and assist in the development process in detail.
After Sale Service: We send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.
Our company is a professional manufacturer who specializes in producing and selling cranes
and components. The factory covers an area of 38000 square meters. As professional engineering machinery accessories supplier, we provide high quality products and excellent services for a variety of dock, subway construction, river cleaned, building dismantlement, municipal engineering and other large projects. Our products are exporting to more than 40 countries and regions.
Certifications
(1).What is the lifting capacity?
(2).What is the lifting height?
(3).What is the power supply in your country?
(4).Is there any other special requirements?
