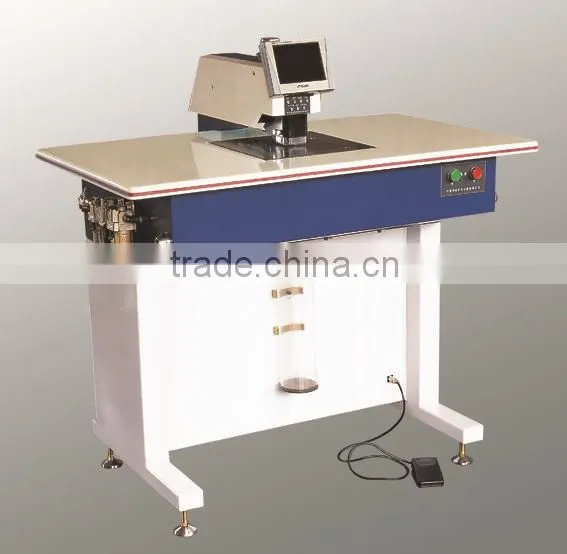

Auto-Punching Machineself (ZK-S-3A ) FOR PCB

Auto-Punching Machineself (ZK-S-3A ) FOR PCB thumbnail-1
Auto-Punching Machineself (ZK-S-3A ) FOR PCB photo-1
US$ 7,000 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
China
Brand Name:
DEYI
Contact Supplier Request Quote Chat Now
Ningbo Shirun Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin China
Brand Name DEYI
Model Number ZK-S-3A
Voltage 220V
Power(W) 200
Weight 160
Dimension(L*W*H) 110*85*120
Warranty 1
After-sales Service Provided No overseas service provided

Ningbo DEYI Machinery Electric Equipment Co., LTD.





 Auto-Punching Machine has been elaborately created by being absorbed the advantages of the various domestic and foreign automatic punching machines, combined with our country's production needs, the control system has used the Windows XP operating system, PCI bus high-performance servo control card, PCI bus high performance



image acquisition card and high resolution encoder servo motor.



The mechanical structure has been used with high precision grinding ball screw and LM sliding track, to ensure the accuracy of mechanical positioning.

Auto-Punching Machineself (ZK-S-3A ) FOR PCB



                 ZK-S-3A Auto-Punching Machine

The main technical indicators

Main application: orientate holes of Laminate for FCCL, identification card, film, diazo-slice, membrane circuit etc.

1)        Process speed: 0.5second/hole

2)        Process precision:≤0.015mm

3)        Center Searching Mechanism: Integrative graphics disposal. Identify roundness and cross circle.

4)        Target size: Φ1 mm~Φ4 mm

5)        Punching diameter: Φ1mm~Φ4mm (exceptive sizes made in addition)

6)        Maximum process panel: 600×1000mm

7)        Lamp-house: Reflex infrared ray, Transmissible infrared ray, Transmissible ultraviolet etc

8)        Maximum impulsive force: 1000N

9)        Air pressure: 0.4~0.6Mpa

10)     Voltage: AC220V±10%

11)     Maximum Power: 200W

12)     Dimension: L×W×H:110×85×120cm

13)     Net weight/Gross weight: 138Kg/160Kg
