Pre-Stretch Pallet Wrapping Machine
- 300 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Without electricity waste tire doubling and tripling machine scrap tyre packing unpacking machine
- MK60S Semi Automatic Strapping Machine
- Mastek Strapping Head
- MK900 Fully Automatic Strapping & Wrapping All In One Machine
- Chocolate Candy Foil Folding Wrapping Machine
- chicken/bouillon cube Wrapping machinery /cube packaging machinery
Product Details
Condition: | New | Application: | Chemical, Commodity, Food, Other, Medical, Chemical, Commodity, Food, Machinery & Hardware, Medical | Packaging Type: | Bags, Barrel, Cans, Cartons, Case, Stand-up Pouch |
Packaging Material: | Paper, Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 220V | Power: | 1.2KW | Place of Origin: | Anhui, China |
Brand Name: | yuanhong | Model Number: | YH-P | Dimension(L*W*H): | 2750*1650*2400mm |
Weight: | 500KG | Certification: | CE ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

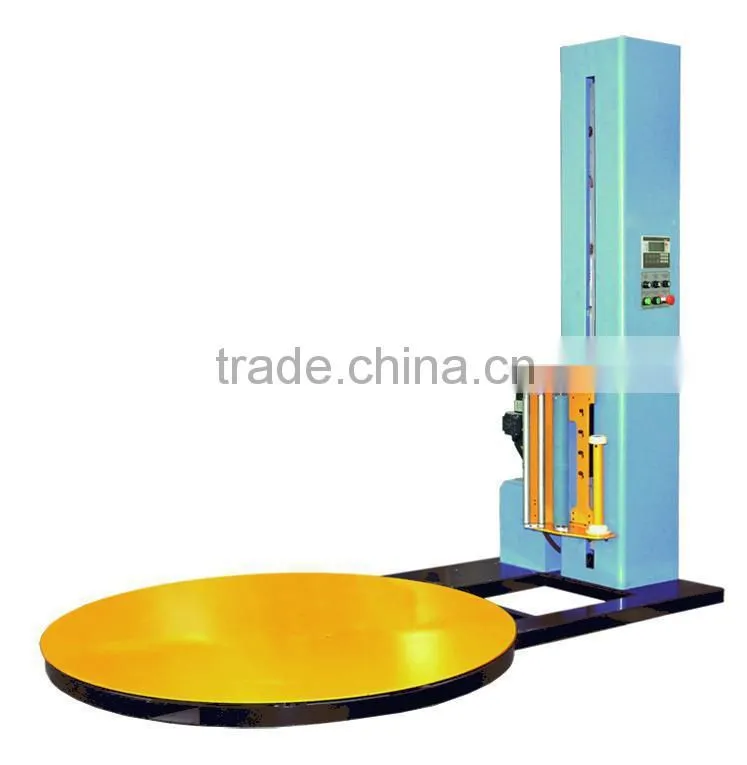

Pre-Stretch Pallet Wrapping Machine
1- Anhui Yuanhong Machinery Automation Co.,Ltd is a high and new technology enterprise
which specialized in R&D and manufacture automatic packaging machine with CE and ISO9001 certificatesince 1995.
2- Main products are vertical packing machine, weighing machine, secondary automatic
packing machine(small bags into big bag), vacuum packing machine, fruit and vegetable packing
machine, 1kg-50kg powder and granule bag packing machine, filling machine, detection machine,
elevator conveyor, robot palletizer for bags,cases, drums, automatic packing line, bag-sewing
machine and so on.
3- Especially the heavy bag (25kg-50kg) and secondary packing machine stay at advanced
level in the world.
It applies to wrap single goods, palletized goods,etc. And it is widely used into glass, hardware, electron, paper making, ceramic industry, chemical industry, foodstaff, beverage, and contruction lines, which will improve logistic efficiency, reduce transportion loss, be dust-resistant, moisture-resistant, and low cost.
Technical Parameters-- Pallet Wrapping Machine
Target Dimension | L*W*H (500-1200*500-1200*1800mm) |
Turntable diameter | 1650mm(1800,2000mm) |
Turntable Height | 80mm |
Target Weight | 2000KG |
Wrapping Height | 1800mm(2400mm) |
Rotay | 0-12rpm |
Wrapping Efficiency | 20-40pcs/h |
Film Carriage | Pre-stretch type |
Stretch Ratio | 200%-300% |
Motor Power | 1.2KW,220V |
Machine body Dimension | 2750*1650*2400mm |
Machine body Weight | 500KG |
Wrapping Material | PE film |
Optional | ramp, top-plate, automatic on off film device and adjustable wrapping height. |

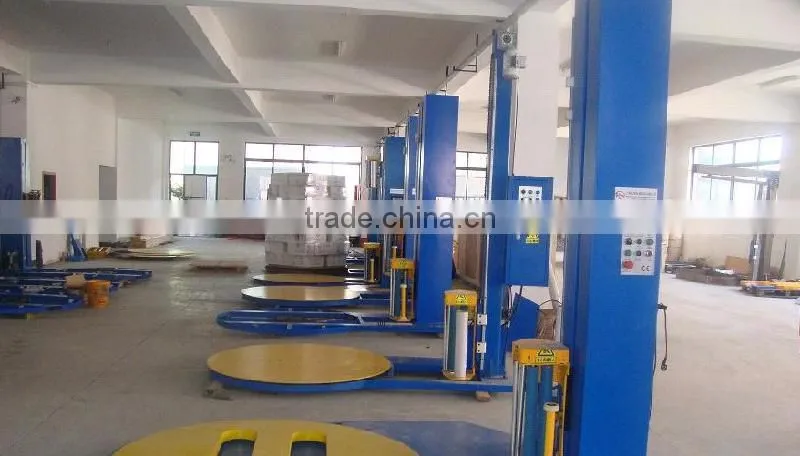

Workshop images--Pallet Wrapping Machine
1. How about engineers service oversea?
Engineers available to service machinery overseas;
2. How to use the machine?
We will supply customer the installation manual or video online;
3. Minimum order quantity and maximum order quantity?
We don’t have limit for the MOQ.
4. How about the guarantee period?
One year.
5. Will you accept L/C, D/A, D/P, Western Union, MoneyGram as payment terms?
Yes, T/T, L/C, D/A, D/P, Western Union, MoneyGram is accepted.
.Find our products through http://cnyuanhong.en.china.cn, /en etc.
.One year warranty for the whole system.
.Can arrange technician for equipment installation and debugging in your factory.
.After one year, we can help you to maintain the machine and the accessories provided only for the cost price.
.We can provide the internship service and help you train the operator and mechanic.
.Free production technology and process configuration.
.We can help you to design the product line, workshop, and provide turn-key project.
