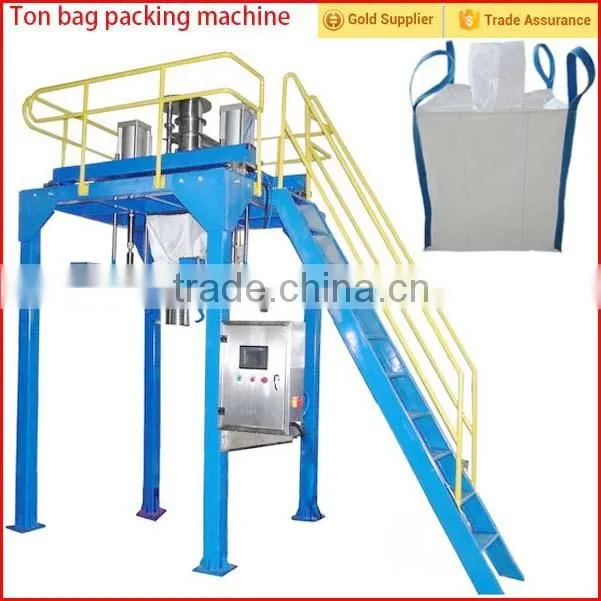

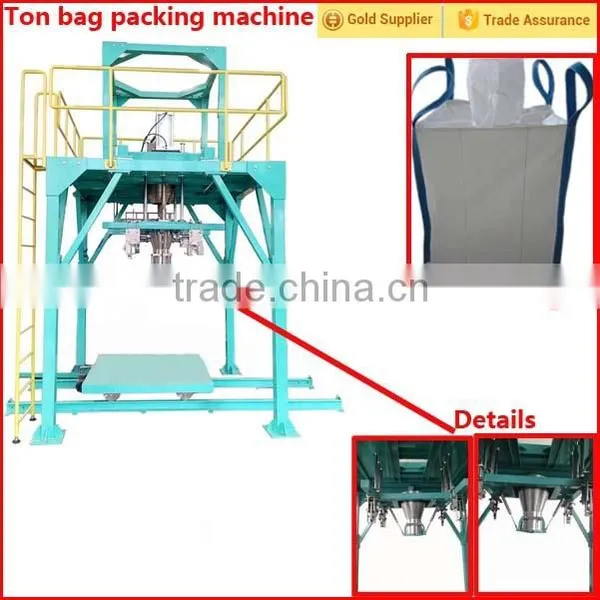

1 ton bag filling machine
1- Anhui Yuanhong Machinery Automation Co.,Ltd is a high and new technology enterprise
which specialized in R&D and manufacture automatic packaging machine with CE and ISO9001 certificatesince 1995.
2- Main products are vertical packing machine, weighing machine, secondary automatic
packing machine(small bags into big bag), vacuum packing machine, fruit and vegetable packing
machine, 1kg-50kg powder and granule bag packing machine, filling machine, detection machine,
elevator conveyor, robot palletizer for bags,cases, drums, automatic packing line, bag-sewing
machine and so on.
3- Especially the heavy bag (25kg-50kg) and secondary packing machine stay at advanced
level in the world.
Specifications---1 ton bag filling machine
1.can pack 500kg-1200kg
2.equiped with transport car
3.easy to operate
A: Machine Features---1 ton bag filling machine
1, The weighing syetem of CJD1000K quantification Ton packaging machinery contains high accuracy(0.02%) sensor and high resolution controller, to keep the machine with high accuracy and stable performance.
2, The material feeding parts adopt two kinds(big one and small one) valves to control the three kinds feeding: fast, slow and exactness.
3, The packing range is 500-1200 kg adjustable. It suitable to big bags packing.
4, The parameter setting and the weighing calibration is very simple and with convenient operation.
B: Construction---1 ton bag filling machine
1, Feeding part:Adopt two kinds(big one and small one) valves to control the three kinds feeding:fast, slow and exactness.
2, Weighing shelf:The weighing shelf connectted with sensor, and convey the weight signal to the electric box which controlling the operation of the machinery.
3, The electromotion car operated by the motor and run in the track to convey the products.
The cars' position controlled by worker and the final position is determined by the limit switch.
4, Electirc box:Exterior signal and the sensor signal are conveyed to the electirc box, which could control the feeding ON and OFF, cylinder lifting and the car running through finished program.
Technical parameters---1 ton bag filling machine
| Material | granule |
| weighing range | 500-1200kg |
| weighing speed | 4-6ton/hour |
| Accuracy | 0.1-0.3% |
| Machine dimension | 5200*1800*3500mm |
| Air supply | 0.4-0.6mpa 2m3/h |
