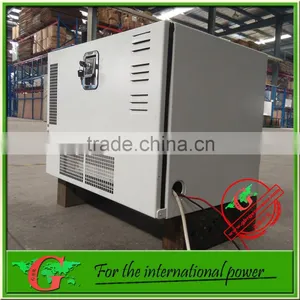

4.5KW New Type Diesel Silence Generator Set GD186FA Engine RV 2015 New Product
We did not cooperate before,how to protect my payment and goods?
-Using Trade Assurance.
What is Trade Assureance?
-Trade Assurance is a free service provided by that’s designed to help create
trust between buyers and suppliers.Trade Assurance covers buyers on with 100%
payment protection with their selected Trade Assurance supplier. You’re covered if:
1.Your products are not shipped on-time as per the contract with your supplier.
2.The quality of your products is not up to standards as per the contract with your supplier.
More detail check here :
Trade Assurance :
-100% Product quality protection.
-100% On-time shipment protection.
-100% Payment protection for your coverd amount.
Generator Set parameters
| Generator set | GP5 | GP5-D | |||
| Rated Frequency | Hz | 50 | 60 | 50 | 60 |
| Prime power | Kva | 5 | 5.5 | 5 | 5.5 |
| Standby power | Kva | 5.5 | 6 | 5.5 | 6 |
| Rated Voltage | V | 230 | 120/240 | 230 | 120/240 |
| Rated Current | A | 21.7 | 45.8/22.9 | 21.7 | 45.8/22.9 |
| Rated rotation speed | r/min | 3000 | 3600 | 3000 | 3600 |
| Genetator | |||||
| Genetator type | GBR5 | GBR5 | |||
| Pole No | 2 | 2 | |||
| Phase number | Single phase | Single phase | |||
| Excitation mode | Self-excitation and constant voltage(with AVR) | ||||
| Power factor | COSΦ | 1.0 | 1.0 | ||
| Insulation grade | B | B | |||
| Engine | |||||
| Engine type | GD186FAE (China) | KD15 440 | |||
| Structure type | OHV 4-stroke, Single-cylinder | ||||
| Bore*stroke | mm | 88*64 | 86*76 | ||
| Engine displacement | cc | 389 | 441 | ||
| Compression ratio | 18:01 | 20.3:1 | |||
| Rated power | kw | 10.5 | 11.7 | 6.8 | 7.4 |
| Lubrication system | Pressure splash type | ||||
| Lube oild brand | SAE 10W-30 SAE 5W 40 API | ||||
| Lube capacity | L | 0.9 | 1.2 | ||
| Starter system | 12V Electric system | 12V Electric system | |||
| Starting motor capacity | V-KW | 12V 0.8KW | 12V 0.8KW | ||
| Charging motor capacity | V-A | 12V 5A | 12V 5A | ||
| Battery capacity | V-Ah | 12V 32Ah | 12V 32Ah | ||
| Fuel consumption ratio | g/KW.h | 365 | 371 | 260 | 270 |
| Fuel type | Unleaded petrol | ||||
| Genset | |||||
| Panel type | Common panel | Common panel | |||
| Output | Receptacle | Connection pole output | Connection pole output | ||
| DC12V output | Connection pole output | Connection pole output | |||
| Nosie level(7m) | dB(A) | 69 | 68 | ||
| Fuel tank capacity | L | 18 | 18 | ||
| Overall dimension | mm | 700*510*540 | 700*510*540 | ||
| Net weigh | kg | 125 | 122 | ||
| Packing manner | veneer board+carton box+pallet | ||||
| Loading quantity / units: | 20': 136 units | ||||
| 40': 288 units | |||||
More test video and photos detail,pls contact with us.
-Warranty
1 year (1000 hours) from get goods.
-Technical support
Technician online contact to support solution for generator maintain.
If any question,pls send email or leave message to Technical Inquiry,they will reply within 24 hours.
-Spare parts support
We support spare parts for our products,within the warranty,most of spare parts is free,but the Express charge
cover by customer.
Also,we support most of Chinese diesel generator parts,if you need any parts and the generator made from
China,contact with our Technician,we will give you reply ASAP.
