| Port Loading & Unloading crane with 360 Degree rotation |

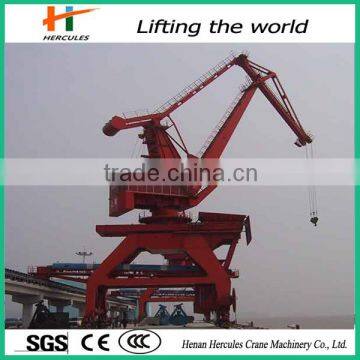

Overview of the portal crane
PRODUCT DESCRIPTION
Port Loading & Unloading crane with 360 Degree rotation generally includes the following units: steel frame, lift mechanism, slew mechanism, crane travel mechanism, spreader device (grab, container spreader, magnet and hook), electrical equipment and other accessory equipments for safety. Steel structure include jib and A-frame, slew platform and gantry frame. Single jib port container cranes are extensively applied to dock's bulk cargo (coal, ore and so on) and other cargo ship (lorry) loading and unloading as well as slipway repair.
Single jib port container cranes referenced standards; GB17495-1998 Harbor portal crane technical specification, JT400-1999 harbor portal crane safety specification, GB3811-2008 crane design standards, GB6067-85 crane safety specification, ISO standards, FEM standards and JIS standards.
| Application |
| Port Loading & Unloading crane with 360 Degree rotation is a kind of hoisting machine especially used in port, with small investment and swiftness benefit for loading and unloading front apron container, sundries and bulk cargo. |
| Features |
1. Quickened the turnover and the operation of loading and unloading. |
| Safety device |
|
To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we provide are not only the electric protective devices or alarm bell but also other equipments as follows : ♦ Overload Limit Switch |
| Working environment |
♦The temperature in the working environment should be in the scope of -20°c~+45°c and relative humidity is no higher than 95% (with dew). |
Port Loading & Unloading crane with 360 Degree rotation Sketch and parameter
| Type | GQ3520 | GQ4024 | GQ4526 |
| lifting capacity | 35t | 40t | 45t |
| working range | 7.5-20m | 8-24m | 8-26m |
| load-lifting height | 18.5m | 18m | 15m |
| load-lowering height | 12m | 8m | 8m |
| lifting speed | 15m/min | 1.8-14m/min | 15m/min |
| luffing speed | 13m/min | 2-15m/min | 15m/min |
| slewing speed | 1.2m/min | 1.1m/min | 1m/min |
| classification group | A6 | A7 | A6 |
| lifting motor | YZR 355L 2-10 110KW | YZP 355L 2-10 132KW,S4 | YZR 400L 2-10 145KW |
| luffing motor | YZRW 25M 1-8 30KW | YZP 280S1-8 45KW | YZRW 280M-8 45KW |
| slewing motor | YZR 180L-6 15KWx2 | YZR 225M-8 22KWx2 | YZR 225M-8 22KWx2 |
| tail turning radius | 6 | 7.5 | 6.7 |
| crane total weight | 128 | 168 | 168 |
| installed capacity | 150 | 221 | 234 |
Production flow

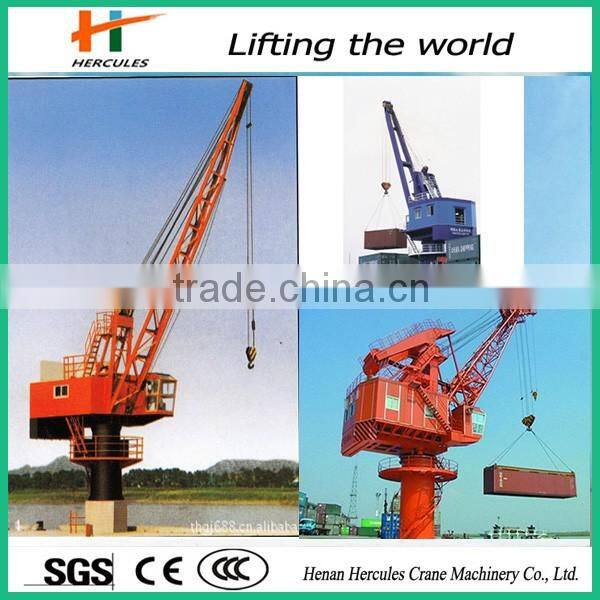

Other type port crane
Factory View
Packaging & Shipping
Our services
Pre-sale services: We can provide you with project design, process design, suitable purchase program for your equipment.Also design and manufacture products based on your specific needs, to train your technical personnel.
Sale: We will accompany you to complete the equipment inspection, construction plan and assist in the development process in detail.
After Sale Service: We send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.
Certifications
Company Information
FAQ
1.Q: Do your products can be customized?
A: Yes,all kinds of our products can be customized design according to client's demands.
2.Q: What kinds of certificates about your products?
A: We have CE,BV,SGS,GOST certificates,of course our products can make some other certificates according to our clients' specific requirements.
3.Q: What information do I need to provide?
A: Normally,we need our customer to provide below information:
> Lifting capacity and height
> Span (rail center to rail center )
> Working condition and voltage ( V,HZ,Phase)
