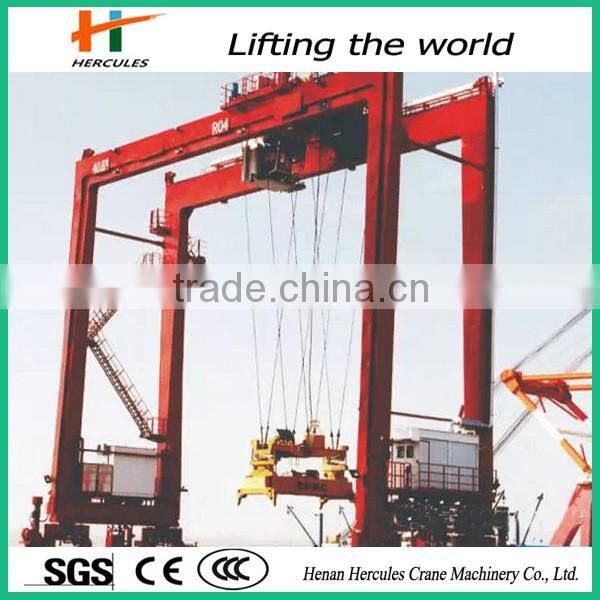

Overview of the portal crane
PRODUCT DESCRIPTION
Rubber Tyred Container Gantry Crane is dedicated machinery ,container yard stacking operations are widely used in ports and container freight yard.
Using a dedicated container spreader which can lift 20 feet,40feet,45feet standard containers and hydraulic storage tanks.
Crane and trolley travelling mechanism adopt the three-in-one reducer, easy for maintenance.
Tires can achieve 90 degree trun, change field operations, and with the function of oblique 20 degree and 45 degree.
| Application |
Our crane are special equipments to remove, load and unload international standard containers. Running and moving in the yard, it has the advantage of high production efficiency and fine maneuverability, also the small sensibility to unevenness of the ground. RTG has tractor trolley and standard trolley two models. RTG is powered by cable drum. At the same time, diesel generating set is equipped for conditions when the power is off or the crane moves to another yard. |
| Features |
|
1) Reasonable structure 9)Primer and finishing paint 10)Crane structure:steel box type |
| Safety device |
|
1. Crane traveling limit switch 2. Weight overload protection device |
| Working environment |
♦The temperature in the working environment should be in the scope of -20°c~+45°c and relative humidity is no higher than 95% (with dew). |

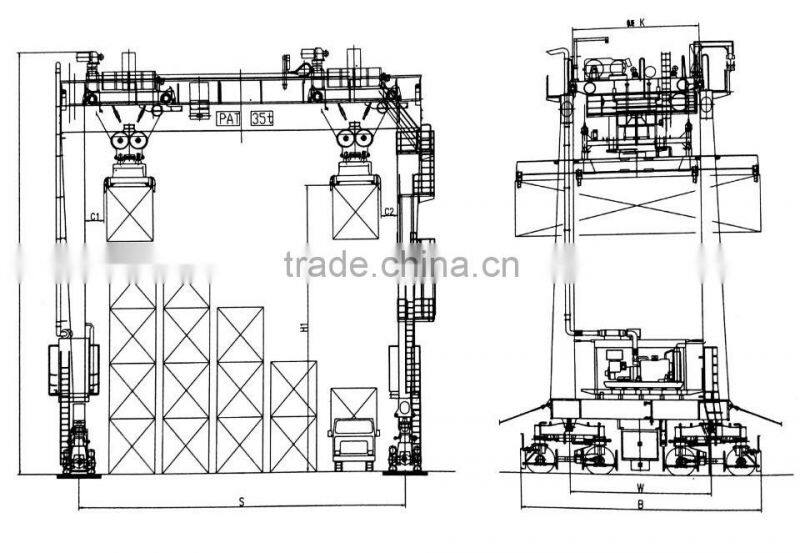

Port Container Crane Sketch and parameter
Model |
LJ35/40-23 |
LightType LJ40-23 |
Capacity(under spreader) (t) |
35,40 |
40 |
Work Duty |
A7,A8 |
A6,A7 |
Span (m) |
23.47 |
23.47 |
Lifting Height (m) |
12.2~17.8 |
16.5 |
Stack Layers/Passing Layers |
3/4~5/6 |
5/6 |
Container Model |
20',40',45' |
20',40',45' |
Spreader Rotating Angle |
±5° |
±5° |
Hoisting Speed (m/min) |
13/26,23/52 |
12/18,18/28 |
Cross Travel Speed (m/min) |
50,70 |
24 |
Long Travel Speed (m/min) |
Full Load-90,Without Load-130 |
Full Load-20,Without Load-40 |
Max.Wheel Load (kN) |
310 |
310 |
Total Rating (kW) |
150,230 |
110,150 |
Power Supply |
Electric,Diesel engine,Electric-Diesel drive |
|

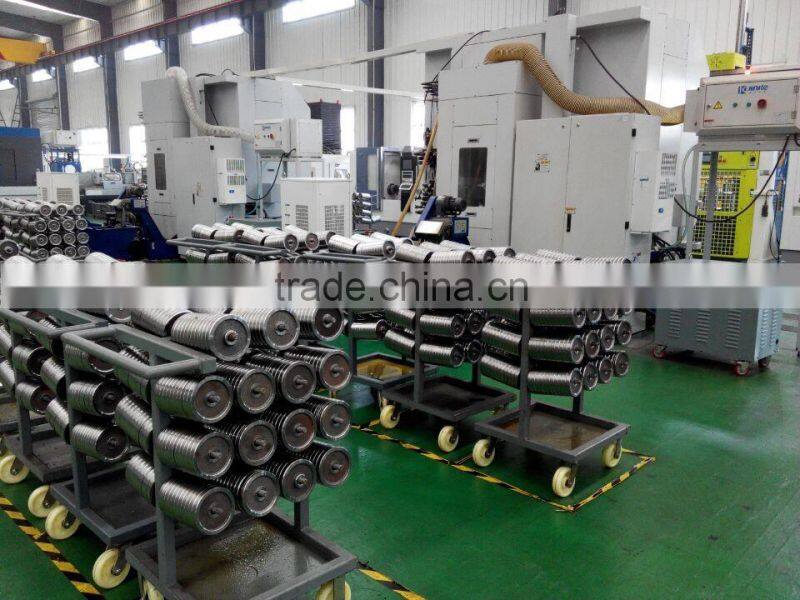

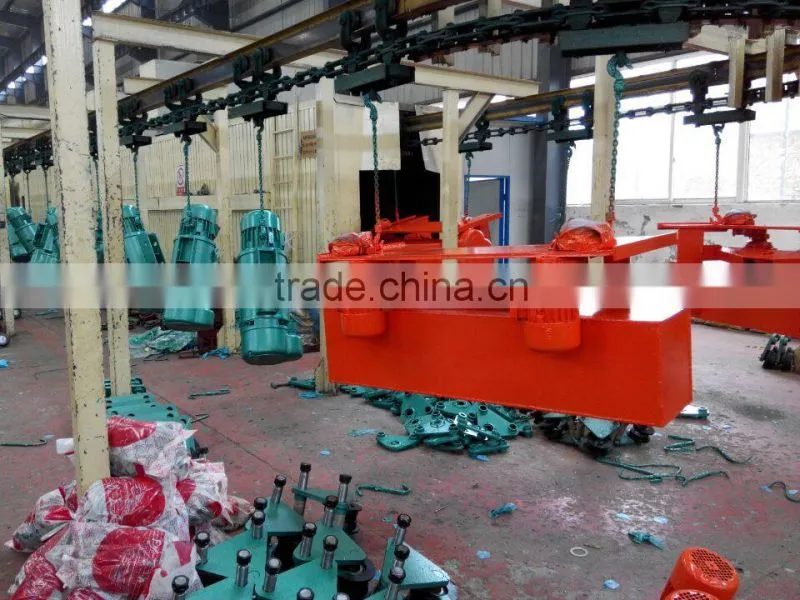

Production flow

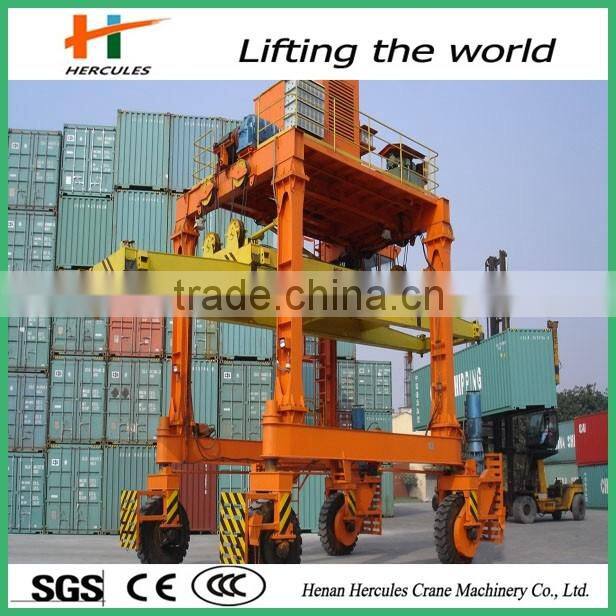

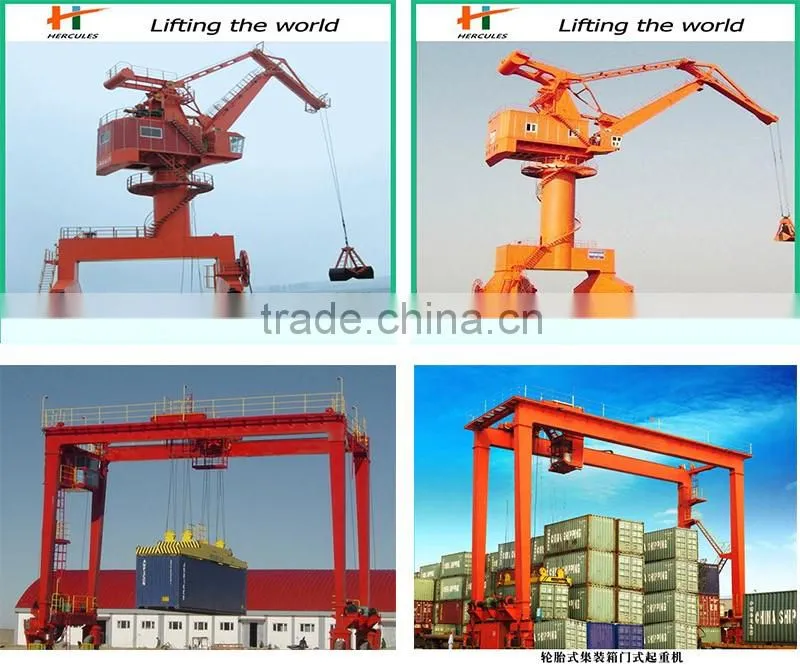

Other type port crane
Factory View
Packaging & Shipping
Our services
Pre-sale services: We can provide you with project design, process design, suitable purchase program for your equipment.Also design and manufacture products based on your specific needs, to train your technical personnel.
Sale: We will accompany you to complete the equipment inspection, construction plan and assist in the development process in detail.
After Sale Service: We send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.
Certifications
Company Information
FAQ
1.Q: Do your products can be customized?
A: Yes,all kinds of our products can be customized design according to client's demands.
2.Q: What kinds of certificates about your products?
A: We have CE,BV,SGS,GOST certificates,of course our products can make some other certificates according to our clients' specific requirements.
3.Q: What information do I need to provide?
A: Normally,we need our customer to provide below information:
> Lifting capacity and height
> Span (rail center to rail center )
> Working condition and voltage ( V,HZ,Phase)
