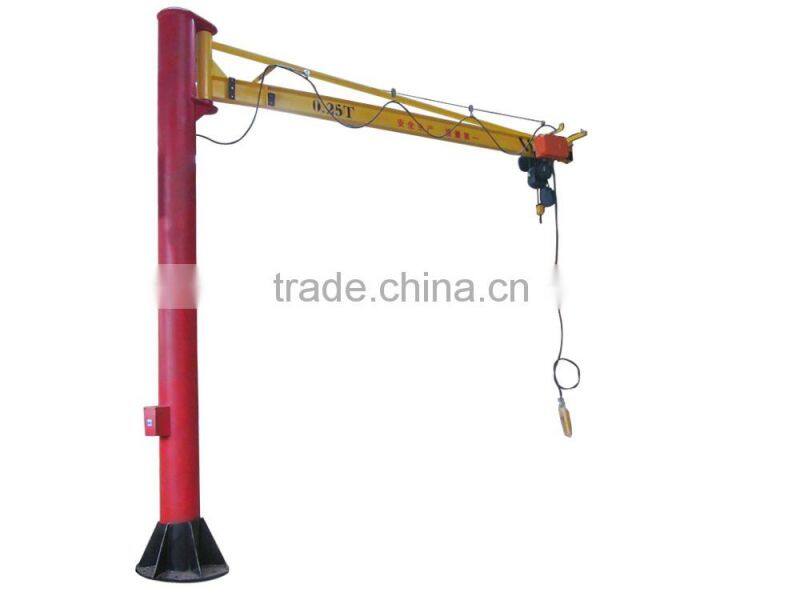

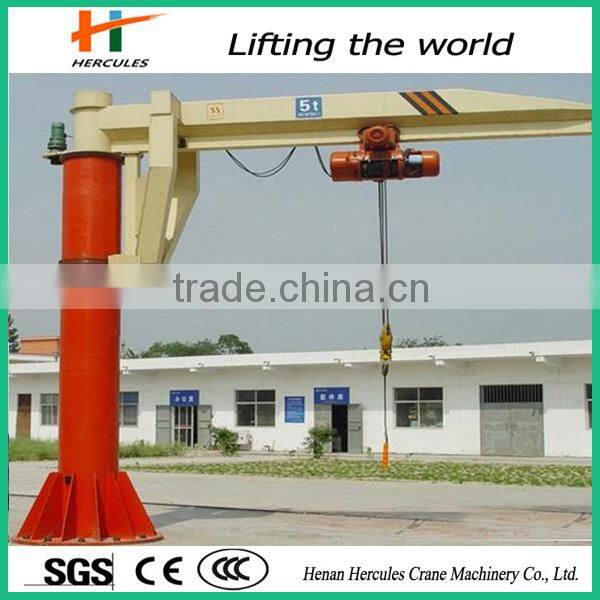

Hot Sale Fixed 1 ton Small Jib Crane

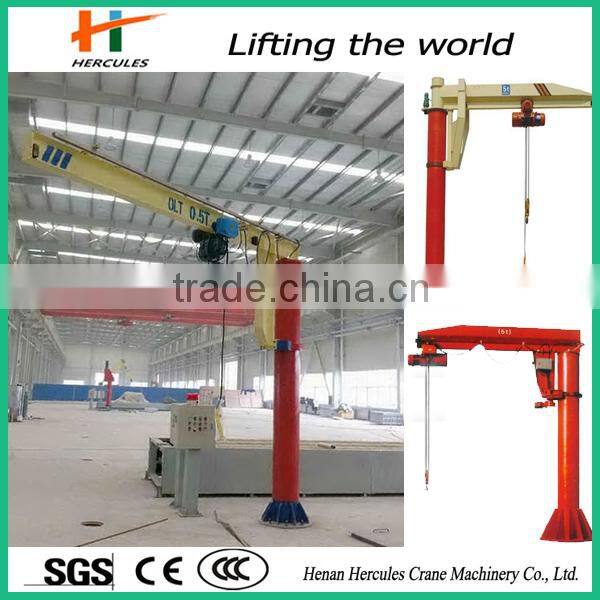

Product View
Product Information
|
Hot Sale Fixed 1 ton Small Jib Crane
| |||||||||
| Brief Introduction |
Hot Sale Fixed 1 ton Small Jib Crane is a kind of small and medium-speed lifting equipment developed recently. It has characteristics of unique structure, safe and reliable operation, high efficiency, energy-saving, time-saving, effort-saving and flexibility. It can be operated under three-dimensional environment. It is superior in the cases of short distance, concentrated lifting. It is widely used at various sites for various trades. |
||||||||
| Application area | dock, warehouse, workshop etc fixed working conditions | ||||||||
| Structure | vertical shaft, revolving arm, rotating shaft, hoist etc, the bottom of the vertical shaft is fixed on the concrete base. | ||||||||
| Advantage | simple structure, operate convenience, turning agile, wide working conditions. | ||||||||
| Control mode | Remote control or pendent line with press button or both | ||||||||
| Package information | Electrical and other parts packed by high quality plywood crate, Beams packed by plastic woven cloth | ||||||||
| Protection devices | Overload limiter, Limit Switch (lifting and traveling), Interlock protection device, Buffer, Overhaul cage, Rail clear plate, Protective cover, Bus bar preventer plate, Anticollision device, Main isolating switch, Emergency stop system, Motor overload protection, and so on. | ||||||||
| Info we need to quote | 1. Lifting capacity ? | ||||||||
| 2. Lifting height ? | |||||||||
| 3. Arm length ? | |||||||||
| 4. Rotation angle ? | |||||||||
| 5. Working radius ? | |||||||||
| 6. Working environment ? | |||||||||
| 7. Power voltage ? | |||||||||
Hot Sale Fixed 1 ton Small Jib Crane
Lifting Capacity |
t |
0.5 |
1 |
2 |
3 |
5 |
|||||||||||||||||||||
Lifting Height |
m |
5 |
5.5 |
6 |
5 |
5.5 |
6 |
4 |
4.5 |
5 |
4.5 |
5 |
4.5 |
5 |
|||||||||||||
Valid Radius |
4 |
4.5 |
5 |
4 |
4.5 |
5 |
4 |
4.5 |
5 |
5 |
5.5 |
5 |
5.5 |
||||||||||||||
Working System |
A3(intermediate) |
||||||||||||||||||||||||||
Speed |
Hoisting |
Slow Speed |
m/min |
0.8 |
0.8 |
||||||||||||||||||||||
Normal Speed |
8 |
8 |
|||||||||||||||||||||||||
Slewing Speed |
0.7 |
0.5~1 |
|||||||||||||||||||||||||
Circulate Speed |
20 |
20 |
|||||||||||||||||||||||||
Slewing Angle |
|
180° , 270° , 360° , any degree |
|||||||||||||||||||||||||
Total weight |
kg |
1733 |
1933 |
2028 |
1860 |
1960 |
2229 |
2478 |
2613 |
2748 |
3577 |
3742 |
4224 |
4430 |
|||||||||||||

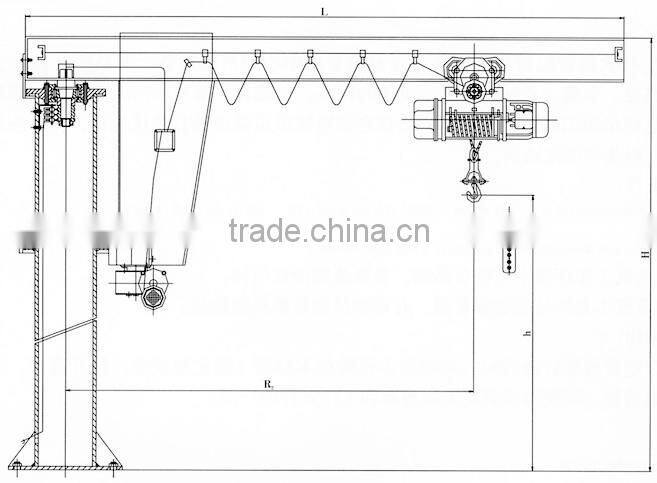

Parts of Jib crane

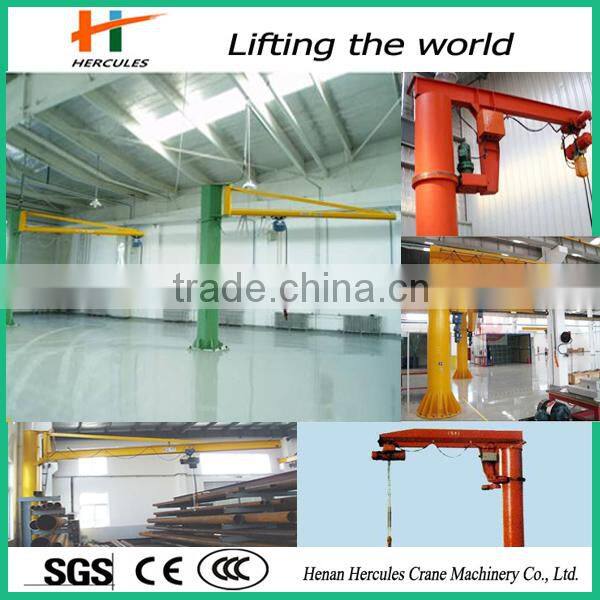

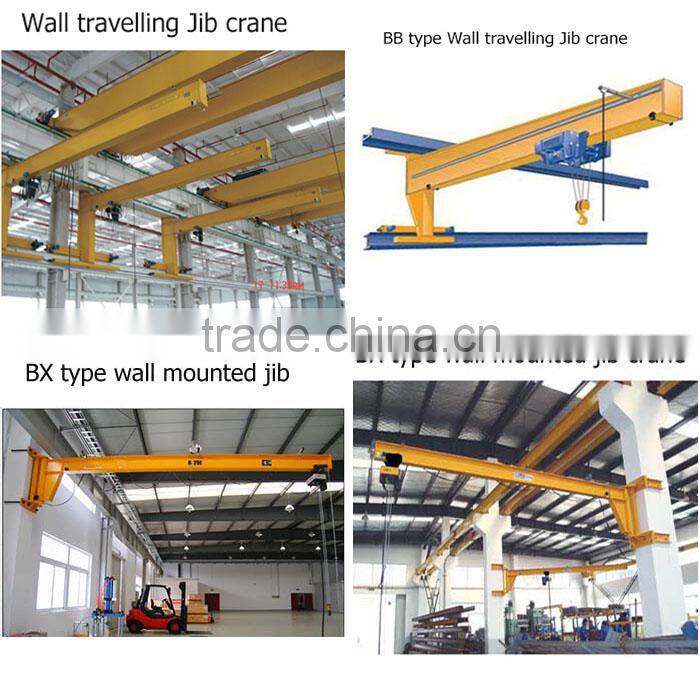

Other type jib crane
| Model | Picture | specifications | |

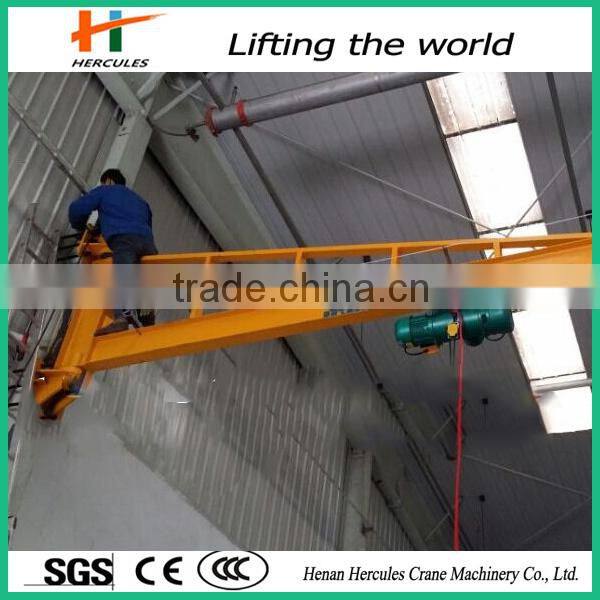

| BX Model Wall Mounted Jib Crane | |
Lifting Capacity | 0.25-1T |
| Max lifting Height | 5-10M | ||
| Valid radius | 4.5-5M | ||
| Working system | A3 | ||
| Lifting speed | 0.8/8 M/Min | ||
| Circulate speed | 20M/Min | ||
| Slewing angle | 0-180 Degree | ||
| BZ Model Pillar Mounted Jib Crane | |
Lifting Capacity | 0.5-16T |
| lifting Height | 4-6M | ||
| Valid radius | 4-5M | ||
| Working system | A3 | ||
| Lifting speed | 0.8/8 M/Min | ||
| Circulate speed | 20M/Min | ||
| Slewing angle | 0-360 Degree | ||

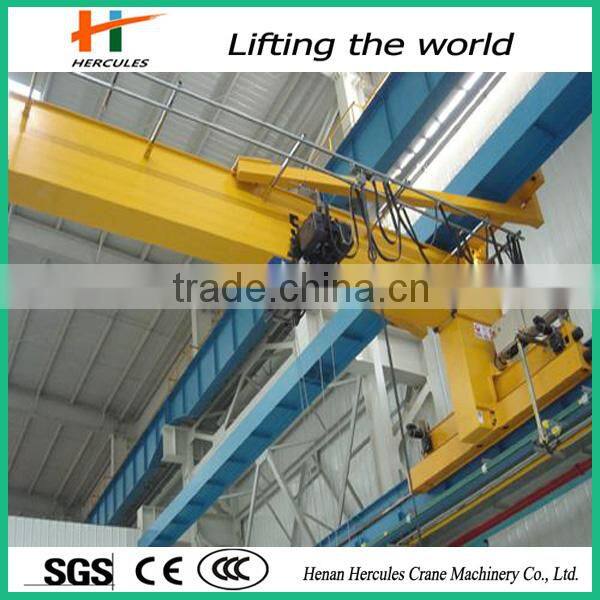

| BB Model Wall Travelling Jib Crane | |
Lifting Capacity | 0.5-16T |
| Max lifting Height | 6-30M | ||
| Valid radius | 5-12.5M | ||
| Working system | A3 | ||
| Lifting speed | 0.8/8 M/Min | ||
| Circulate speed | 20M/Min | ||
| Slewing angle | 0-180 Degree | ||
Our Services
Pre-sale services: We can provide you with project design, process design, suitable purchase program for your equipment.Also design and manufacture products based on your specific needs, to train your technical personnel.
Sale: We will accompany you to complete the equipment inspection, construction plan and assist in the development process in detail.
After Sale Service: We send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.
Packaging and Delivery
Customer Vists
Factory View
Our company is a professional manufacturer who specializes in producing and selling cranes
and components. The factory covers an area of 38000 square meters. As professional engineering machinery accessories supplier, we provide high quality products and excellent services for a variety of dock, subway construction, river cleaned, building dismantlement, municipal engineering and other large projects. Our products are exporting to more than 40 countries and regions.
