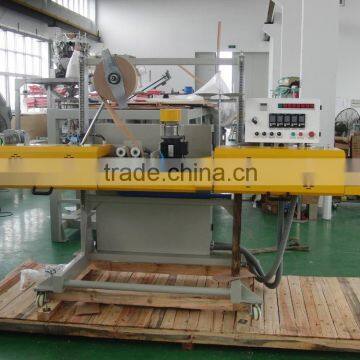

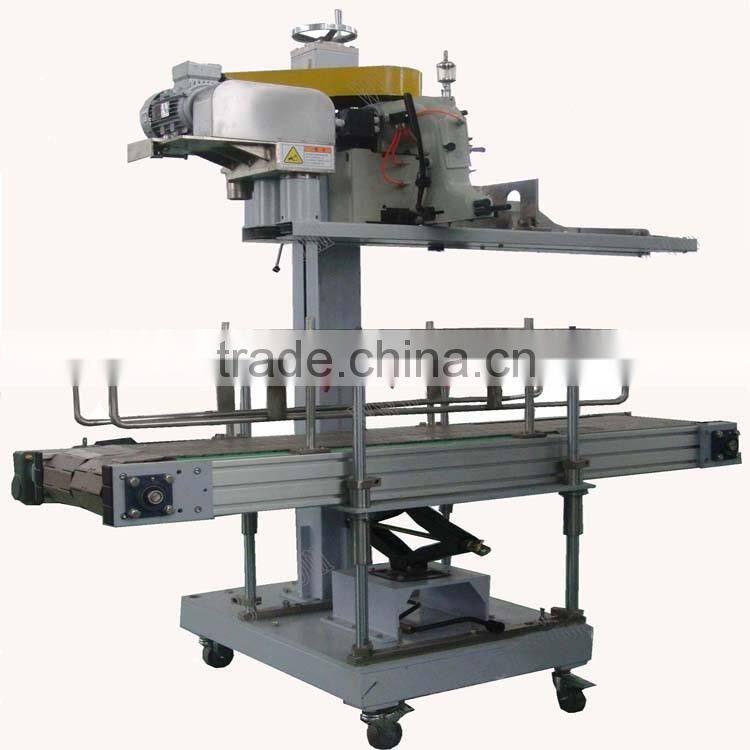

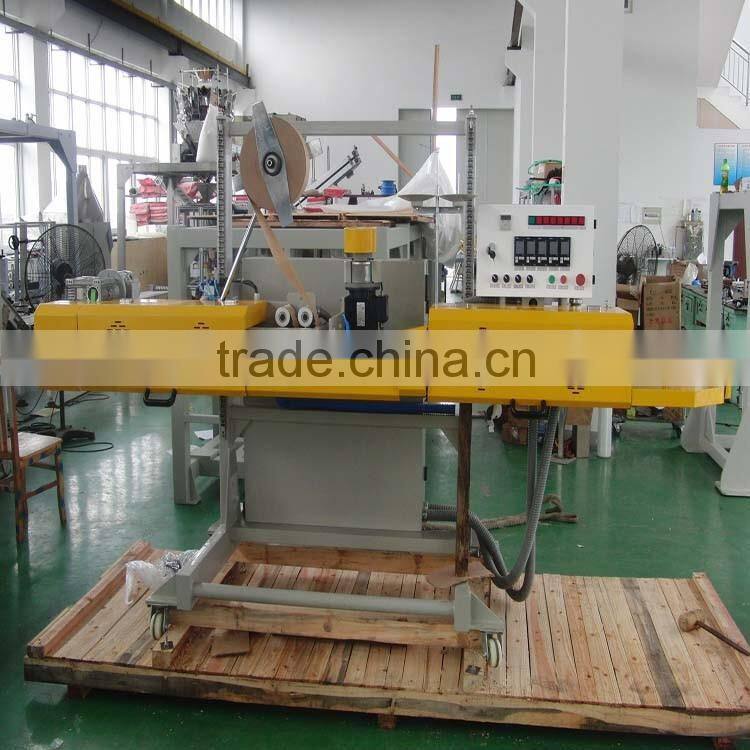

automatic industrial stiching sewing machine
Application:
light chemical, chemical raw materials industry, large bags sewing ,used after packaging machine/packaging machinery.
Features:
1. Using photoelectric sensor switch automatically locate Sewing
2. Automatically disconnected, no artificial tangent
3. Sewing-oriented and product conveyor drive motor equipped with the drive, adjustable speed
4. Finished conveyor can be adjusted up and down the table to meet the needs of the different length of the bag
5. Sewing machine head is equipped with safety switch safety cover, remove the safety cover off automatically after the sewing machine head, good safety performance
6. The frame is board connecting structure, elegant appearance packing machine)
Technical parameters:
1. Bag Size(unit: mm):(650~1000)×(350~550)(L×W)
2. Max packing speed: 25 packs/min
3. Sewing Machine Head: BAFANG
4. Finished conveyors: chain plate conveyor (L = 2.5m)
5. Total power: 820W 380V±10% 50HZ
6. Air pressure :0.5~0.7Mpa
.One year warranty for the whole system.
. overseas engineers are avalaible for equipment installation and debugging.
. one year later, we can help you to maintain the machine and the accessories provided only for the cost price.
. design the product line and make configuration of workshop for free, and provide turn-key project.
.customrized-made packing machine for customer and we can flight to customer's site to make design according to their request.
exhibition show-- automatic packing machine for chemical fertilizer
1. How about engineers service oversea?
Engineers available to service for oversea costomer,our engineer can make Barrier-free communication with customers
2. How to use the machine?
We will supply customer the installation manual or video online,
and send engieers to customers'site to train their workers how to use it
3. Minimum order quantity and maximum order quantity?
1 set
4. How about the guarantee period?
One year.
5. Will you acceptT/T, L/C, D/A, D/P, Western Union, MoneyGram as payment terms?
Yes, above payment term are ok
our factory have been in packing machine field for 20 years,and have been
the greatest and largest packing machine in china,more world top 500 companies
are our customers,for example:Unilever,p&G.........
we specialized in :
automatic 5g-50kg granule or powder packing machine
automatic vacuum brick bag packing machine
automatic 1kg 2kg flour packing machine for paper bag
automatic small bags into big bag packing machine
automatic carton filling machine
automatic doypack packing machine
automatic robot palletizing machine
welcome more world-wide friends to visit us!!!
more products you may interested in the following website: http://cnyuanhong.en.china.cn, /en etc.
