Automatic Production Line
- 25 Set / Sets per Month
- Shanghai
- T/T
- Inside and outside bag packaging line Healthy teatriangle packaging linkage line
- Pharmaceuticals industrypackaging assembly line Packaging production line
- China teatriangle packaging linkage line Green teainternal and external package linkage line
- Packing and palletizing linkage line Beverage industrybox and palletizing production line
- Pharmaceuticals industrypackaging linkage line Packaging production line
- Box code stack production line Beverage industrybox and palletizing assembly line
Product Details
Condition: | New | Application: | Food | Packaging Type: | Cartons, Cans, Bottles, Bags, Film, Foil |
Packaging Material: | Paper, Other, Paper, carton | Automatic Grade: | Automatic | Driven Type: | Pneumatic |
Voltage: | 380V | Power: | 5 KW | Place of Origin: | Anhui, China |
Brand Name: | yuanhong | Model Number: | LB450-2 | Dimension(L*W*H): | 4520*2130*2130MM |
Weight: | 1460KG | Certification: | CE,ISO | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
1.made up of carton erector, carton packer, carton sealer, palletiser, carton packing line2.small bag or bottle into carton
carton erector, carton packer, carton sealer, palletiser, carton packing line
1.Case Erector
Capacity : 8-12 Cartons/min.
The case blanks stand vertically in the quick load magazine which has space for more than
100 blanks (may be different according to the thickness of the carton).
The blank is picked up from the magazine by a device with suction cups and erected
To the carton holder. The erected carton is fed by a mobile mechanical movement,
The tape glue is applied on the long flap during feeding.
Safety controls:
-When blanks are not fed in properly
-When drive motors are overload
-When safety guards are opened
-When air pressure in undersized
All parts coming in contact with the packs are made of stainless or rust protected material.
The machine is controlled by a micro computer( also called PLC).
Carton standard:
Min max
Length 200mm 450mm
Width 150mm 400mm
Height 100mm 350mm
Electricity supply : 380/220v, 3-phase, 50 hz or as required.
Control voltage : 24v, DC
2.Case Packer
Composed of:
- N. 1 Infeed conveyor
- N. 1 Loading station
- N. 1 Guide rail
- N. 1 Carton holder
Product to be wrapped: PET-bottle of drinking water
Pack collation: 5*8 4*6 in carton
Speed: 10-12 cartons/min
General Specifications
1. The packer are manufactured with solid profiled steel welded constructions. Torsion-free, working reliability and extended life.
2. All parts are painted with a two component epoxy paint.
3. The system has memory sets for save data and easy to use on multiple packages next time.To show the survey the error and point and guides to operation and maintenance.
4. The packer can be altered to different size within 30 minutes by miner adjustments or substitution of change parts, provided that the machine is not manufactured for a single-purpose operation.
5. Reliable and precise case transport. Well-guided case transport is guaranteed by roller conveyors gripping the case at 3 edges ensuring perfect alignment.
6. Overload system : Minimizes possibility of damage to product or machine in the event of a jam or malfunction.
7. Using the touch screen to setup or reset the PLC program.
8. Wide variety of lane dividers, loaders and infeed timing devices..
9. Control power uses the low voltage DC24V to avoid electric leakage.
10. This machine is easy to operate, do not need major technical staff.
11. The action parts of machine have the glib for easy lubrication and maintenance.Even the bearing is on the bottom, has linked a pipe for gather up the lubrication.
WORKING PRINCIPLES
Low impact infeed: the product is fed on an Intralox plastic conveyor belt. A pneumatic agitation device ensures the smooth flow of the product through the guide rails. Control by means of photocells for correct product position and for minimum product accumulation in each channel. The product is separated in the required configuration by a mesh belt driven by a clutch connected with the main motor of the machine and controlled by the cam programmer.
Size change is achieved electronically and with simple adjustments and hand wheels.
Product loading: Pre-glued carton in the right position, the ready formation of product is dropped into the carton freely by the means of proximity switches.
The machine is driven by programmable motors which allow perfect control of all machine phases.
1. Technical Parameter
Model | XL-ZX |
Power Supply | 380V 50/60HZ 5kw |
Applicable Carton Size | L200-500*W200-400*H150-450mm |
Packing speed | 10-12cartons/min |
Power source | 6-7kg |
Machine size | 2500*1600*1900mm |

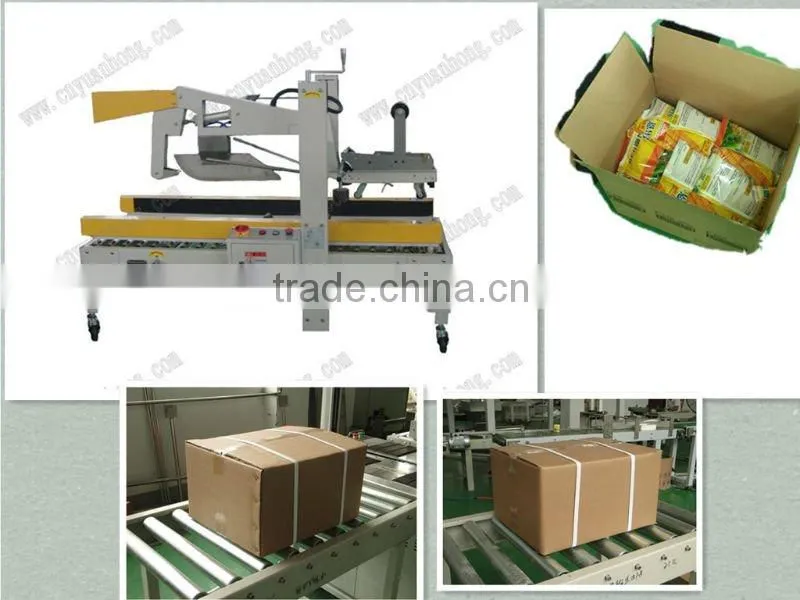

3. Case Sealer
1.Automaticlly fold the top panels ,stable and smooth ,beautiful look an save the labour,can be used with the Automatic Packaging Machine Series.The lastest patent tape attaching device,no need the fan to blow the tape to make it smooth ,apply the patent pressing device,ensure the tape tightened avoide the ineffective taping.
2.high precision ,low noise ,longer the life of the belt.
3.It is able to do auto folding for top lid.
4. Adjust the width and the height manually according to the carton size.
5.Imported of components Electric and pneumatic parts.
Specification:
Speed :15cases/min
Carton size:200~500*150~500*150~500mm
Power suppy :220V/380V,50~60HZ
Power :1.5KW
Applicable tape width :W48mm,60mm,75mm
Overall dimention:L1770*W850*H1520
Weight:180kg
4. Case Palletizer
1. Introduction
a.The Automatic Palletizer can put different products in a fixed order and stack them on the pallet automatically.
b.Number of product and layers can be set .
c.Easy for the fork moves the full pallet into storehouse.
d.This equipment adopts PLC ,touch screen and intelligent managing which is not only simple and easy to master, but also reducing the labor.
