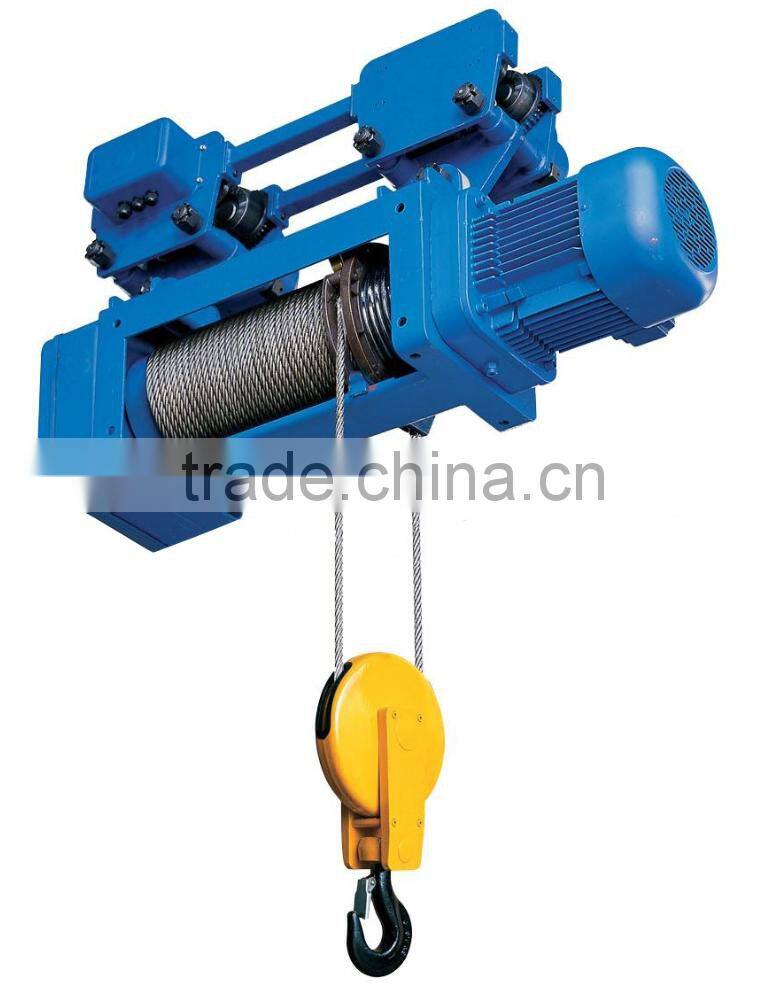

Widely Used Hoist Fitness with Continuous Work
| Overview of the Electric Hoist | |
| Components | 1. Steel structure: Hoist box,hoist drum, hook, wire rope. |
| 2. Hoisting mechanism: electric hoist with trolley or Electric hoist. | |
| Control method | Remote control or pendent line with press button or by hand. |
| Design and construction rules | All the standards which is required for the crane hoist is the Chinese standard |
| Painting | Primer and finishing paint |
| Color: according to your demand. | |
| Average thickness: about 100 microns | |
| Power supply | 380V/50Hz or as per client's requirement |
| Speed | Single speed/Dual speed |
| Manufacturing standard | All crane design and manufacturing is according to Chinese Standard but customized products are avialable. |
| Safety feature | 1. Limit switch. |
| 2. Overload stop device for hoisting. | |
| 3. Long bearing buffer for crane traveling. | |
| 4. Power faliure backup. | |
| Payment term | 40% payment in advance and the balance paid defore delivery by TT. |
| Shipping port | Qingdao port by Containers; Tianjin port by bulk cargo. |
| Warranty | 12 months |
| Order tips | 1. lifting capacity. |
| 2. lifting height.(hook center to ground) | |
| 3. Power supply: Voltage. | |
| 4. Working condition: which material to lift? temprature? | |
| 5. Would be better if you have drawings of your plant. | |
| 6. Do you need the single or double speed? | |

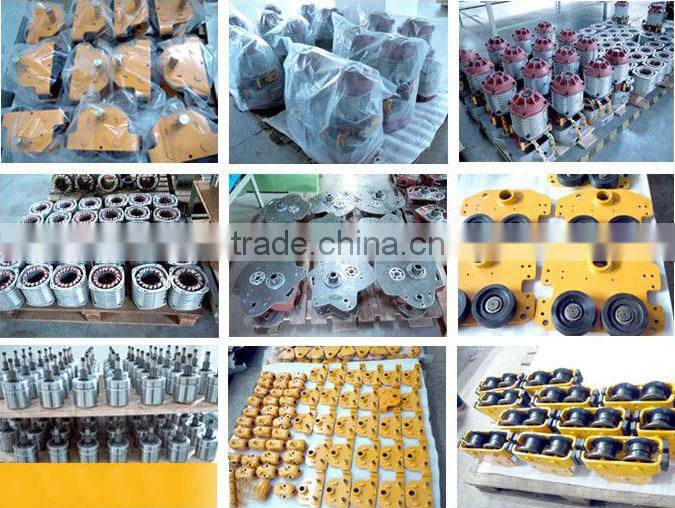

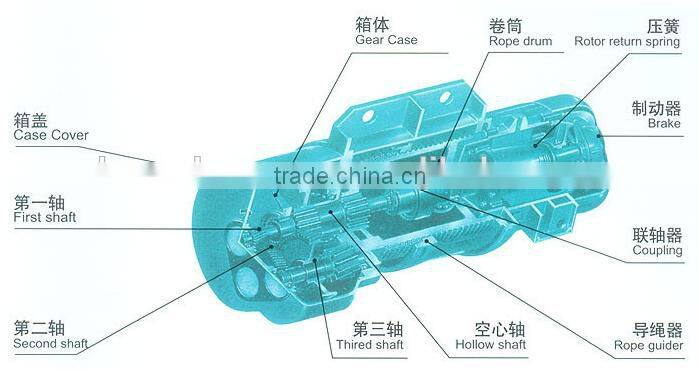

| Parts of the Electric Hoist | |
| Motor |
Hoist Motor is a taper type rotor motor with braking; it is one of the best quality motors, which has bigger torque, so it can be adapted to moving frequently, the Maximum torque is 2.4-3 times than the rated torque. |
| Gear Box |
Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation. |
| Wire Rope |
Hoisting ropes comply with the exporting standards. The leading rope taken by the Drum does not slip sideways when slack. The factor of safety, on the nominal breaking strength of the rope is six. |
| Rope Drum |
Grooved hoist Drum, seamless pipe of adequate length to be wounded in one layer and to provid eproper support for the rope to minimize abrasive wear is provided. Drum Shaft resolves on Ball Bearings for ensuring smooth running. |
|
Electric apparatus controlling system |
composed of the contactor box, controlling switch, cut-off limiter, the working voltage of controlling switch is 380V, 36V or 24V(safety voltage). |
| Rope Guide |
Rope Guide is in two halves, ensuring easy accessibility. It encircles the drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition. The rope guides of our company is thicken and dilated, so that it is not easy to be damaged. |
| Hook | The Hook Block is tested to 150 % of full load before assembly |
| | |
|
Technical parameter of the Electric Hoist |
|

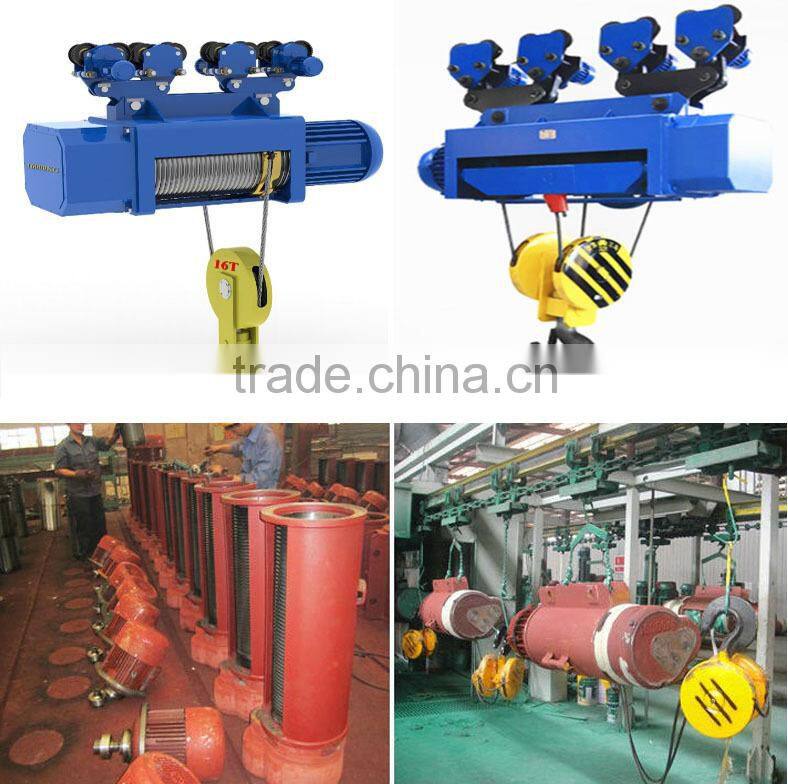

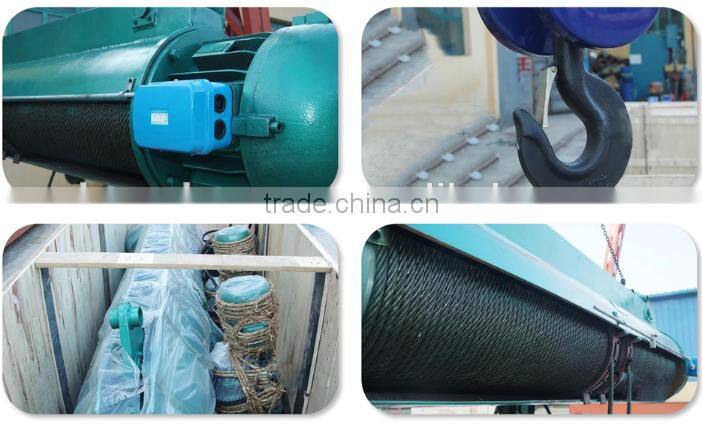

| Details of the Electric Hoist |
|
|
Pre-sale services: We can provide you with project design, process design, suitable purchase program for your equipment.Also design and manufacture products based on your specific needs, to train your technical personnel.
Sale: We will accompany you to complete the equipment inspection, construction plan and assist in the development process in detail.
After Sale Service: We send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.
Item |
Name |
Picture |
Advantages |
Website |
|
1 |

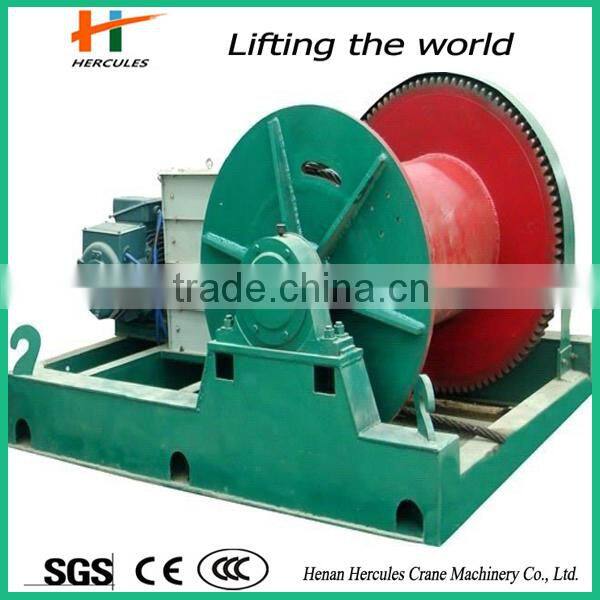

Winch |
|
(1).Slow speed and quick speed type. (2).1ton-120ton capacity.
|
Click |
|
2 |
Platform |
(1).Excellent Mobility (2).Special locations. |
Click |
|
|
3 |

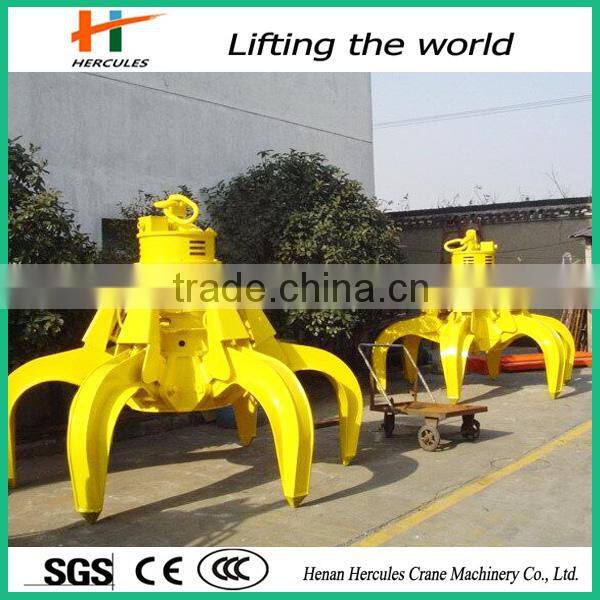

Grab |
|
(1).Grab stabilization is not required. (2).Long sevice life of the hydraulic system.
|
Click |
Our company is mainly engaged in manufacturing Excavator standard buckets, Reinforced buckets, Rock buckets, Clamshell buckets, Tilt buckets, Skeleton buckets, Grapples, Excavator rakes, Mechanical grabs, Hydraulic grabs, Long reach booms, Three section booms,Quick couplers, Rippers, Bucket teeth, Forks for forklift, Hydraulic vibrating hammers and other parts of machinery. Our factory covers an area of 38000 square meters. As professional engineering machinery accessories supplier, we provide high quality products and excellent services for a variety of dock, subway construction, river cleaned, building dismantlement, municipal engineering and other large projects. Our products are exporting to more than 40 countries and regions.
(1).What is the lifting capacity?
(2).What is the lifting height?
(3).What is the power supply in your country?
(4).Is there any other special requirements?
