Remote Control Hydraulic Grab Of Heavy Duty Equipment
- 10000 Set / Sets per Month
- Qingdao Shanghai Guangzhou Port or as requested
- T/T Credit Card
- Hand tool parts castings
- OEM/ODM steel air tool parts / needle bar bushing
- air chuck,air accessory,pneumatic tool parts
- Air conditioner parts develop stamping tooling die
- Investment Casting Pneumatic tools accessories with Stainless Steel and Alloy Steel Materials
- customized high quality Milling Tools
Product Details
Place of Origin: | Henan, China | Brand Name: | Hercules | Model Number: | EL |
Product Description

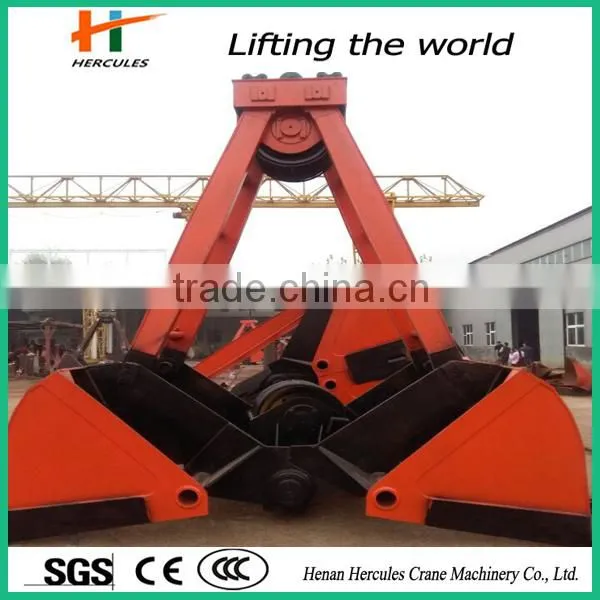

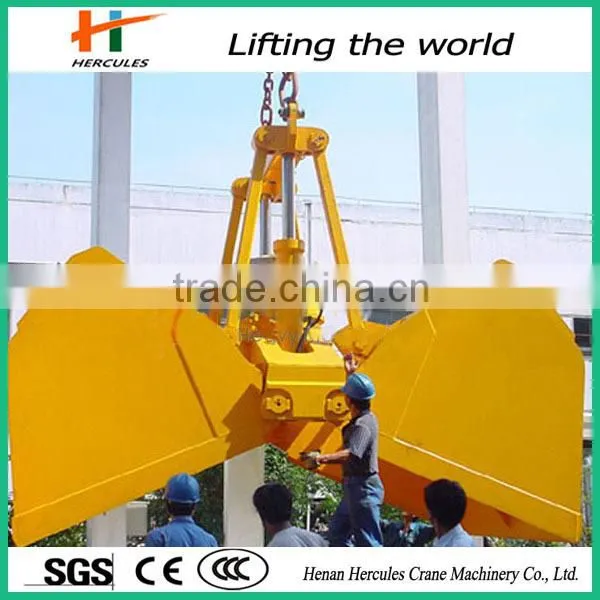

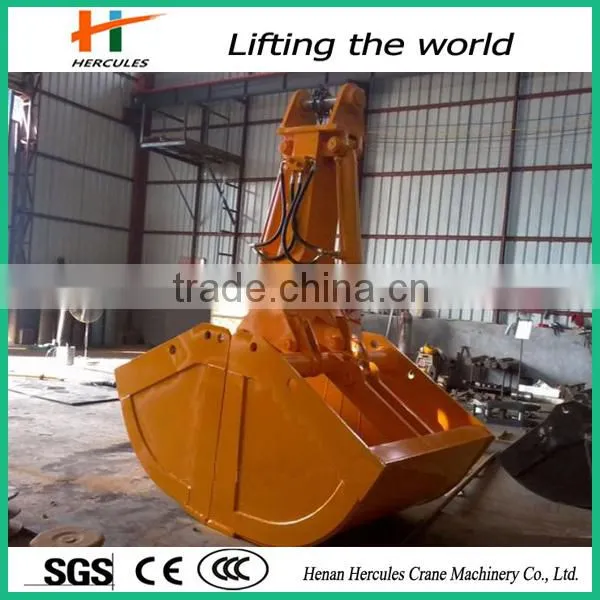

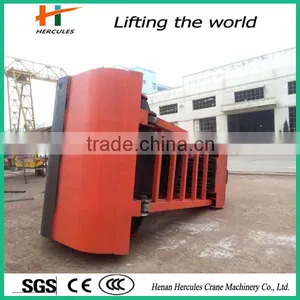

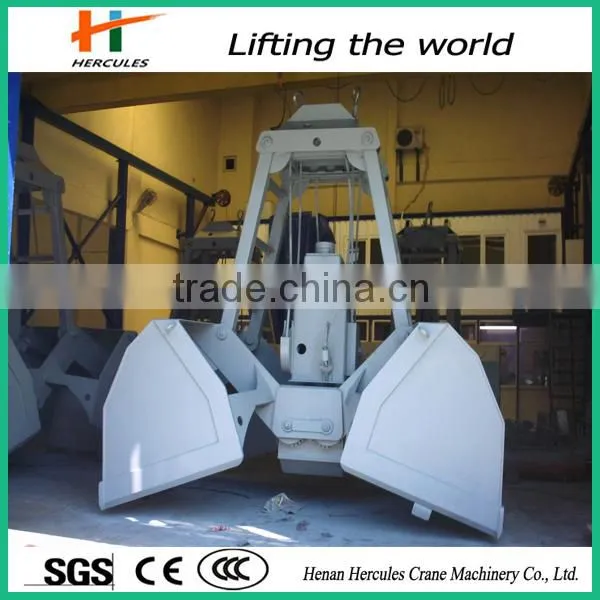

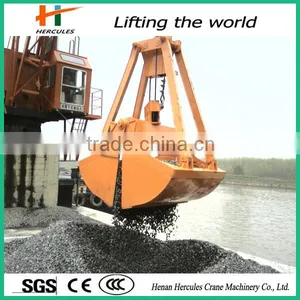

Remote Control Hydraulic Grab Of Heavy Duty Equipment
Product View
Product Details
Specialized in handling Block or irregular shape of bulk materials, the grab valve is with the great abrasive resistance, high strength and can grab the material very well. This grab is holding very wide application. Equipped with tower crane, ship crane, gantry crane, overhead crane, and other cranes to grab garbage, stone, steel scrap and block materials.
Technical Specification
Type | Volume (m3) | Dead Weight (kg) | Density (t/m) | Pulley Diameter (mm) | Stroke (mm) | Height(m) | SWL(T) |
EL10.0-5000 | 5 | 4900 | 1 | 400 | 3120 | 7.6 | 10 |
EL10.0-2500/5000 | 3.0-5.0 | 5000 | 1.0-1.6 | 400 | 3120 | 7.6 | 10 |
EL15.0-8000 | 8 | 6800 | 1 | 520 | 3750 | 8.4 | 15 |
EL15.0-5000/8000 | 5.0-8.0 | 7000 | 1.0-2.0 | 520 | 3750 | 8.4 | 15 |
EL20.0-10000 | 10 | 9000 | 1 | 650 | 4210 | 9.8 | 20 |
EL20.0-6000/10000 | 6.0-10.0 | 9200 | 1.0-1.8 | 650 | 4210 | 9.8 | 20 |
EL25.0-15000 | 15 | 10200 | 1 | 650 | 4620 | 10.5 | 25 |
EL25.0-8000/15000 | 8.0-15.0 | 10500 | 1.0-1.8 | 650 | 4620 | 10.5 | 25 |
EL32.0-18000 | 18 | 13700 | 1 | 810 | 5180 | 12 | 32 |
EL32.0-10000/18000 | 10.0-18.0 | 14000 | 1.0-1.8 | 810 | 5180 | 12 | 32 |
EL40.0-24000 | 24 | 15400 | 1 | 810 | 5180 | 12 | 40 |
EL40.0-13000/24000 | 13.0-24.0 | 15800 | 1.0-1.8 | 810 | 5180 | 12 | 40 |
Other Type Grabs
Grab Buckets
Grabs For Garbage
Timber Grabs
Grabs For Sand And Gravel
Copmponents And Parts
Factory View
Buying Guides
Pre-sale services: We can provide you with project design, process design, suitable purchase program for your equipment.Also design and manufacture products based on your specific needs, to train your technical personnel.
Sale: We will accompany you to complete the equipment inspection, construction plan and assist in the development process in detail.
After Sale Service: We send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.
Our company is a professional manufacturer who specializes in producing and selling cranes
and components. The factory covers an area of 38000 square meters. As professional engineering machinery accessories supplier, we provide high quality products and excellent services for a variety of dock, subway construction, river cleaned, building dismantlement, municipal engineering and other large projects. Our products are exporting to more than 40 countries and regions.
Certifications
(1).What is the lifting capacity?
(2).What is the lifting height?
(3).What is the power supply in your country?
(4).Is there any other special requirements?
