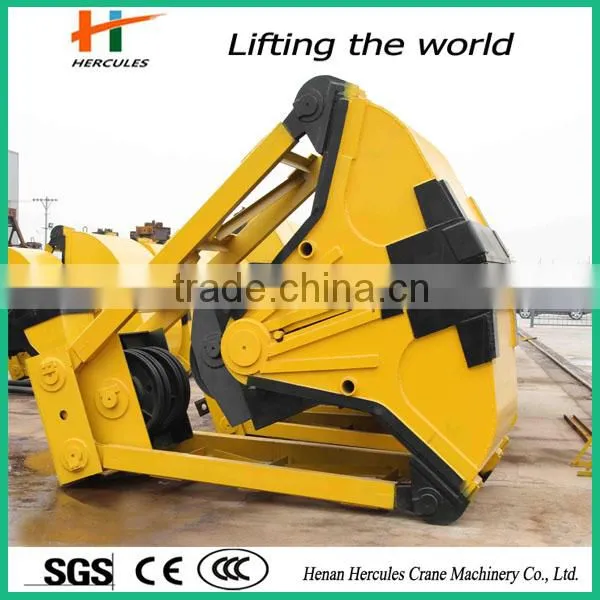

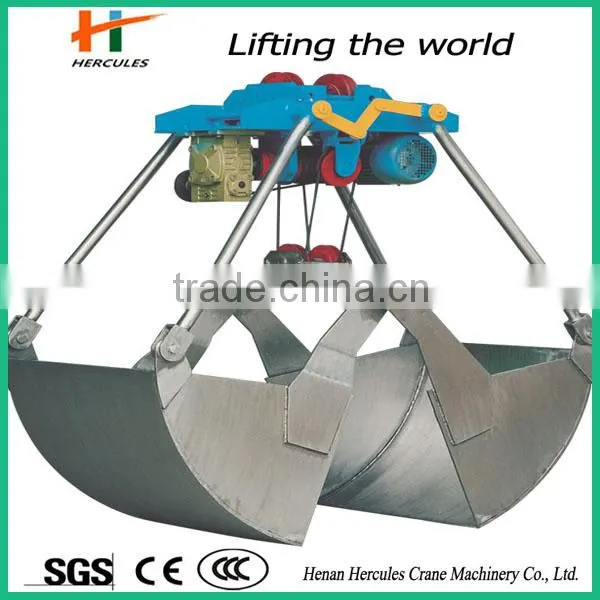

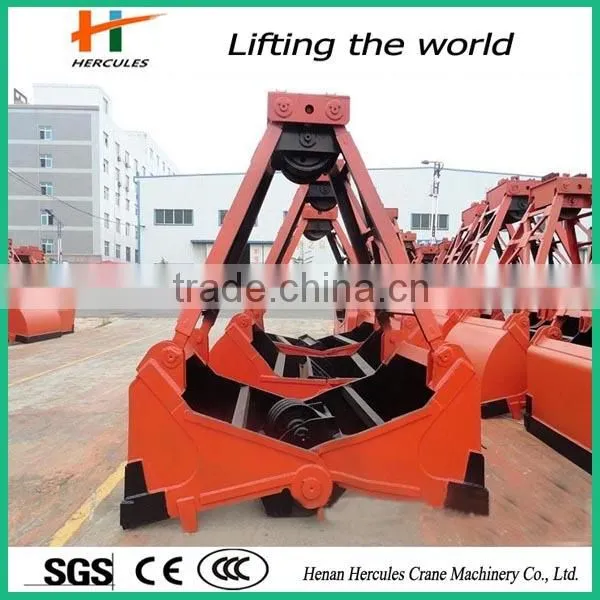

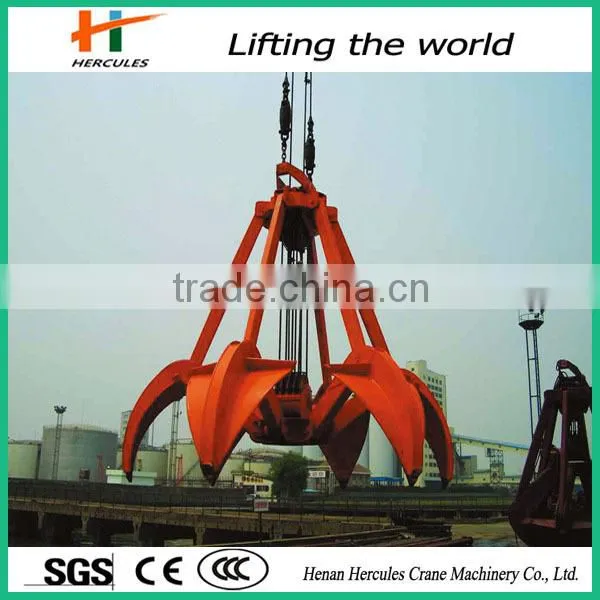

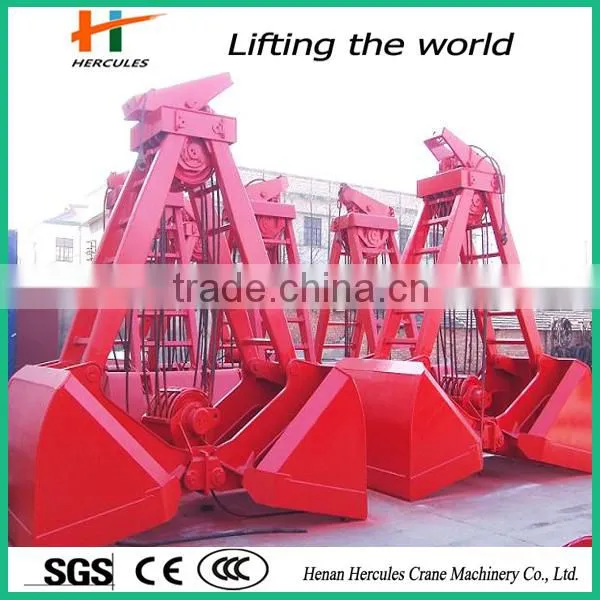

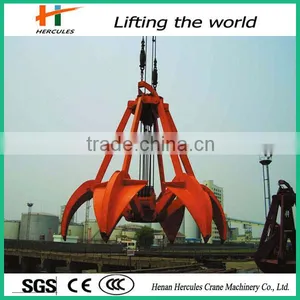

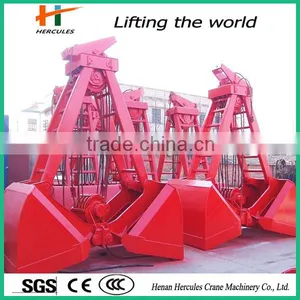

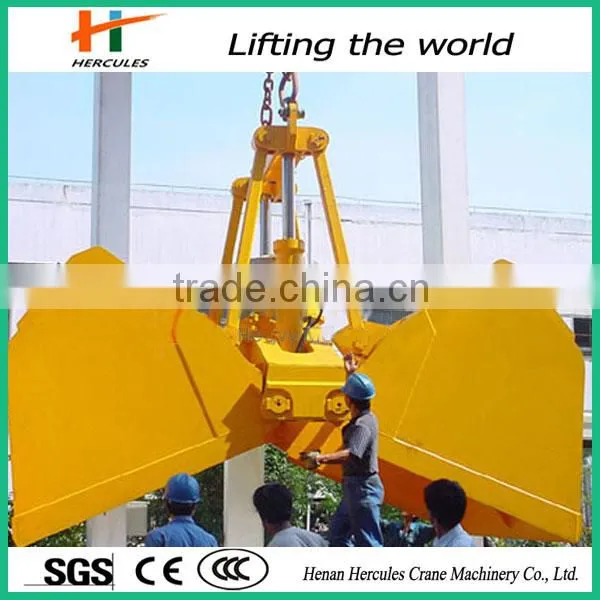

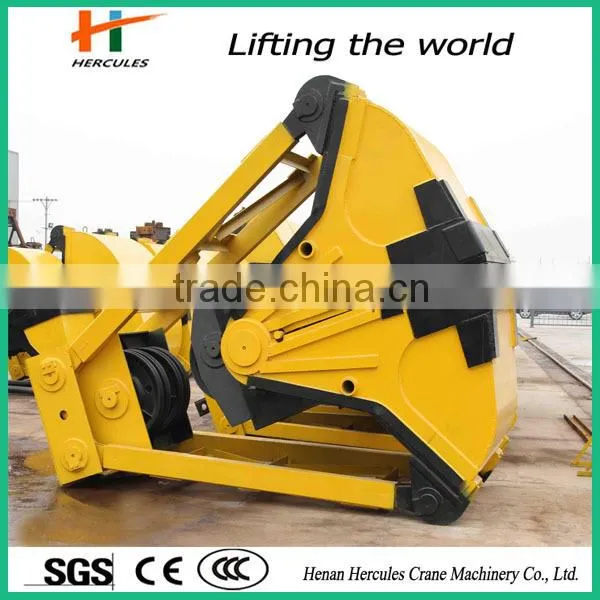

2m3~12m3 Wireless Remote Control Clamshell Grab
®Feature of the grab
1, start or stop with one button
2, Used in single hook crane and ship deck cranes.
Advantages
1, close automatically on the materials and open at any position without external power.
2, 100m distance remote control from the grab
3, Grabs can be customized.
4, First class quality with competitive price
5, Compact design, optimal use of the size of work areas
6, Reasonable structure, favorable performance
7, Control the load easily and position the load exactly
8, Smooth starting and stopping
9, Superior safety and reliability
10, High praise and follow orders from clients from more than 90 countries!
®Technical parameter of the grab
| Model | Grab Volume(m3) | Dead Weight(t) | Dimensions(mm) | Sheave dia (mm) | Wire rope dia(mm) | Crane lifting Capacity(t) | ||||
| A | B | C | D | E | ||||||
| YK10 | 5 | 5 | 2635 | 3358 | 3519 | 3914 | 2600 | 445 | 24 | 10 |
| YK14 | 7 | 6.5 | 2780 | 3398 | 4092 | 4448 | 2800 | 520 | 28 | 14 |
| YK16 | 8 | 7.5 | 2780 | 3398 | 4092 | 4448 | 3000 | 520 | 28 | 16 |
| YK20 | 10 | 9 | 2810 | 3591 | 4192 | 4513 | 3560 | 560 | 32 | 20 |
| YK25 | 13 | 10 | 3000 | 3837 | 4487 | 4850 | 3800 | 650 | 36 | 25 |
| YK28 | 16 | 11 | 3060 | 3887 | 4559 | 4819 | 4320 | 650 | 36 | 28 |
| YK35 | 20 | 15 | 3270 | 4109 | 5008 | 5391 | 4600 | 720 | 40 | 35 |
| YK40 | 24 | 17 | 3520 | 4374 | 5136 | 5495 | 4700 | 880 | 45 | 40 |

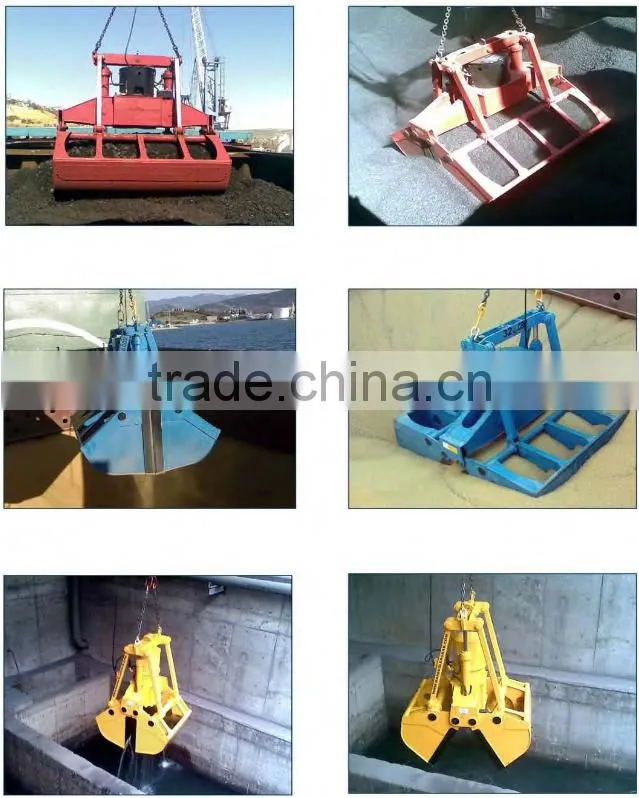

®Application of the grab
Pre-sale services: We can provide you with project design, process design, suitable purchase program for your equipment.Also design and manufacture products based on your specific needs, to train your technical personnel.
Sale: We will accompany you to complete the equipment inspection, construction plan and assist in the development process in detail.
After Sale Service: We send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.

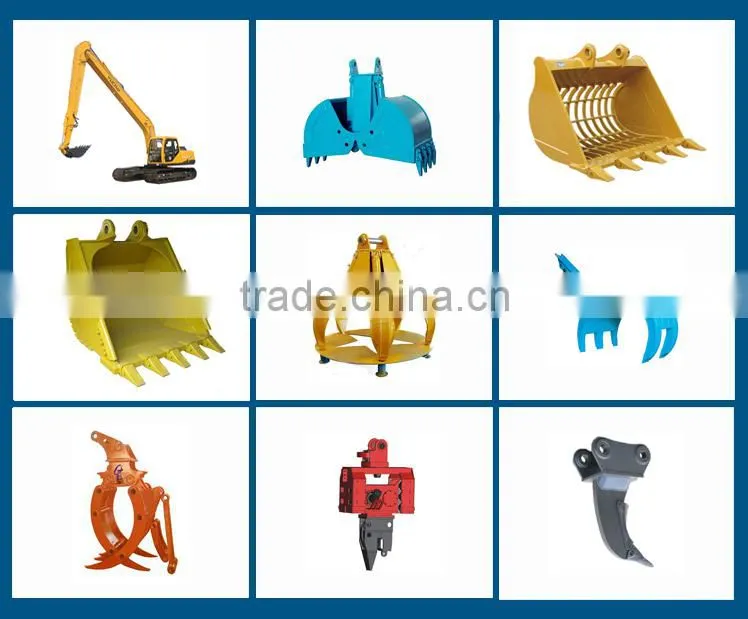

Our company is mainly engaged in manufacturing Excavator standard buckets, Reinforced buckets, Rock buckets, Clamshell buckets, Tilt buckets, Skeleton buckets, Grapples, Excavator rakes, Mechanical grabs, Hydraulic grabs, Long reach booms, Three section booms,Quick couplers, Rippers, Bucket teeth, Forks for forklift, Hydraulic vibrating hammers and other parts of machinery. Our factory covers an area of 38000 square meters. As professional engineering machinery accessories supplier, we provide high quality products and excellent services for a variety of dock, subway construction, river cleaned, building dismantlement, municipal engineering and other large projects. Our products are exporting to more than 40 countries and regions.
(1).What is the lifting capacity?
(2).What is the lifting height?
(3).What is the power supply in your country?
(4).Is there any other special requirements?
Contact Information
| Company | Henan Hercules Crane Machinery Co., Ltd. |
| Contacter | Nicole Guo |
| Mob | 86-18211675057 |
| Tel | 86-0371-55659885 |
| Fax | 86-0371-55656165 |
| Skype | 1587227187 |
| Add | Room 20D, Building No.8, CBD Zhengdong District, Zhengzhou, China |
