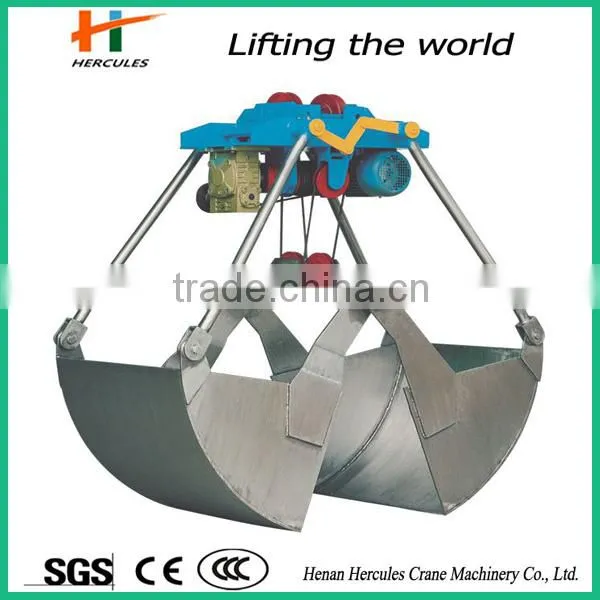

This Motor Grab is a merging of the radio remote control technology into the single rope grab for handling of bulk materials. It is particularly designed for operation with single-hook crane and ship crane, with reliable performance and easy operation procedures.
The grab could be open and unload materials from any position in the air.
Type:

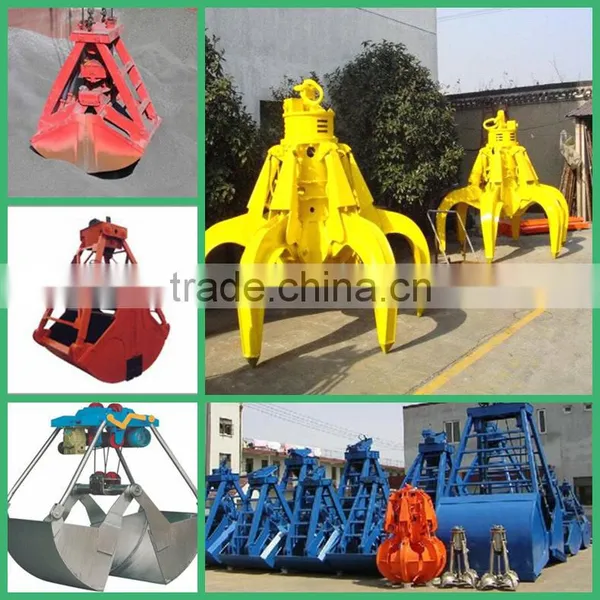

Motor Grab/ Electric Grab/ Hydraulic Grab/
Single Rope Grab/ Double Rope Grab/ Four Rope Grab/

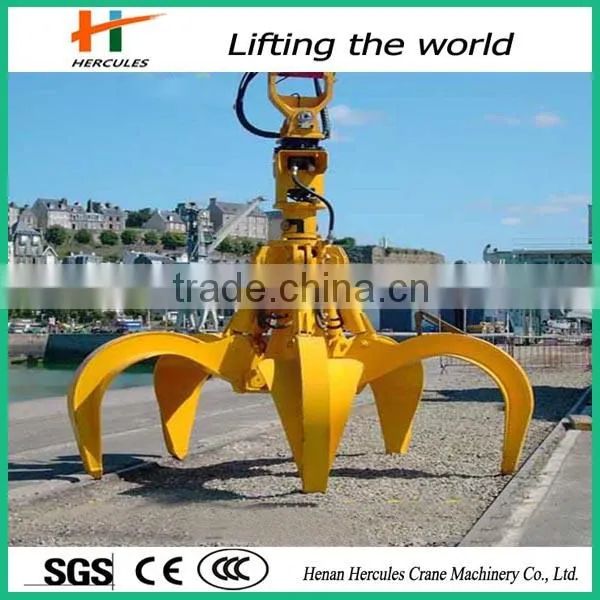

Orange Peel Grab/ Four Rope Six Petals Grab/ Electric Six Petals Grab
Application:
- Widely used in loading goods in port, factory, work shop and power plant.
- It is an ideal tool in handling bulk cargo such as coal, ore powder, fertilizer and sand
- The users can configure cane grab, waste grab, wood grab and others according their needs. We can design and manufacture special products under the requirements of users.
Advantages:
- close automatically on the materials and open at any position without external power.
- 100m distance remote control from the grab
- Grabs can be customized.
- First class quality with competitive price
- Compact design, optimal use of the size of work areas
- Reasonable structure, favorable performance
- Control the load easily and position the load exactly
- Smooth starting and stopping
- Superior safety and reliability
- High praise and follow orders from clients from more than 90 countries.
Painting:
- Process: Sandblast, All steel is treated by sand blasting before doing paintings. There are 3 layers of paintings. The bottom layer is zinc painting to prevent from rusting. The color of top surface should be average
- Color: Yellow, Red, Blue etc. (according to your demand)

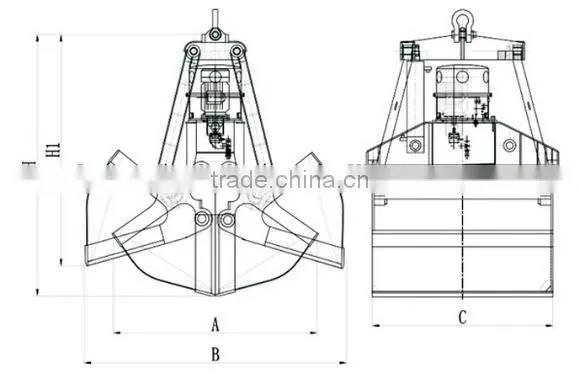

Technical Specification:
| Models | Volumes(m3) | Type | Material Proportion (t/ m3) | Capacity( t ) | Pulley Ratio | Dia.of Steel Wires(mm) | Dia. of Pulley (mm) | Power(KW) | Grab Weight(t) | Total Height(mm) | Max.Openging Dimension(mm) | Grab Dimension (a x b x h) |
| ZD15 | 1.5 | heavy | <=2 | 3 | 5 | 15 | 350 | 15 | 2.9 | 3560 | 2800 | 1950x1450x680 |
| ZD20 | 2 | heavy | <=2 | 4 | 5 | 15 | 350 | 18.5 | 3.6 | 3870 | 3000 | 2300x1400x720 |
| ZD25 | 2.5 | heavy | <=2 | 5 | 5 | 16 | 400 | 22 | 4.4 | 4100 | 3100 | 2500x1650x680 |
| ZD30 | 3 | middle | <=1.2 | 3.6 | 5 | 16 | 400 | 22 | 4.68 | 4140 | 3200 | 2500x1896x680 |
| ZD60 | 6 | slight | <=1 | 6 | 5 | 16 | 400 | 22 | 5.6 | 4540 | 3700 | 2800x2196x1050 |
Pre-sale services: We can provide you with project design, process design, suitable purchase program for your equipment.Also design and manufacture products based on your specific needs, to train your technical personnel.
Sale: We will accompany you to complete the equipment inspection, construction plan and assist in the development process in detail.
After Sale Service: We send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.
Our company is mainly engaged in manufacturing Excavator standard buckets, Reinforced buckets, Rock buckets, Clamshell buckets, Tilt buckets, Skeleton buckets, Grapples, Excavator rakes, Mechanical grabs, Hydraulic grabs, Long reach booms, Three section booms,Quick couplers, Rippers, Bucket teeth, Forks for forklift, Hydraulic vibrating hammers and other parts of machinery. Our factory covers an area of 38000 square meters. As professional engineering machinery accessories supplier, we provide high quality products and excellent services for a variety of dock, subway construction, river cleaned, building dismantlement, municipal engineering and other large projects. Our products are exporting to more than 40 countries and regions.
Thank you for you patient reading. If you still have some questions about our products, our corporation or others, the following may help you.
1) What's the information should I provide when inquiry?
A: Lift capacity B: span C: lift height D: power source
The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
2) How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons.B: remote control with push buttons
C: cabin(space capsule seat) control with joystick.Choose any type as you like.
3) Can this type work in hazardous environment?
That's Sure! This type product is just for application in general manufacturing workshop.For hazardous environment, please consult our professional sales manager.
We can customize for you, acid proof or explosion proof, no problem for that.
4) Can you provide the serious lifting tools?
That's sure! we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
5) How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
