Specifications
low price 1500l micro beer brewing equipment1.Entirely beer equipment production line
2.OEM process
3.3 years warranty
Jinan shun lung equipment technology co., LTD. Is a professional self-brewing equipment, small and medium-sized beer equipment, OEM processing, factory beer equipment, drawing processing, non-standard customized, laboratory equipment, wine, beverage, atmospheric pressure containers, non-standard equipment, OEM, and the attachment of beer equipment, peripheral auxiliary equipment, control equipment,main and auxiliary brewing raw material supply, etc.
15bbl set of small beer equipment, including crushing systems, heating systems, mashing system, fermentation system, cooling system, Cleaning System , Control System , filling system (barrel filling machine, barrel washing machine, bottle filling machine). We can also be customized according to the needs, OEM processing.
| 1.Crush system |
* capacity:500kg/h *motor power:3.0KW * Extrusion of roller grinding,The roller speed:8m/s * Feeding way:move the plate,feed the malt |
|

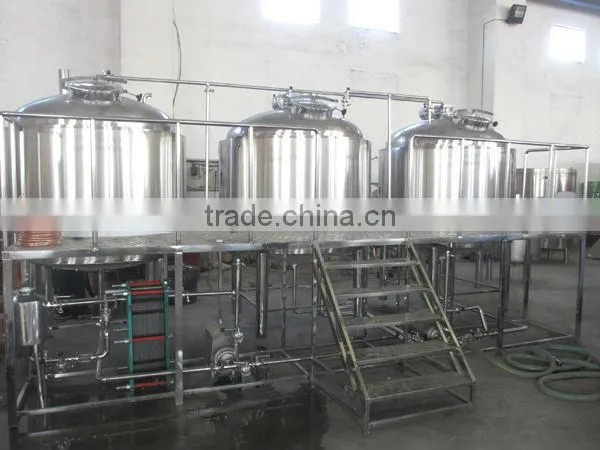

2. Mash tun & Brew kettle & Whirlpool tank |
*Useful capacity: 1500l *Heating way: Steam heating. *Inner-Jacket(SUS304)thickness: 3.0mm; *External-Jacket(SUS 304) thickness: 2.0mm; *Cylinder (Oval, SUS304), thickness: 3.0mm. *Insulation: Polyurethane-thickness: 80mm. *Liquid level display: Sight glass & Level gauge. *Tangent whirlpool mode; *Cleaning System :CIP washing unit; *Polishing precision up to: Ra0.4µm,etc. |
| 3. Lauter tank | -Inner-Jacket(SUS304)thickness: 3.0mm; -External-Jacket(SUS 304) thickness: 1.5mm; -Cylinder (Oval, SUS304), thickness: 3.0mm. -Insulation: Polyurethane-thickness: 80mm. -Polishing precision up to: Ra0.4µm. -SUS 304 stainless steel polished sieve plate, gap: 1.2mm. -Grains outlet: 350mm*270mm, square shape. -Wort pipe and the washing pipe are separated device. Cleaning System :CIP washing unit;etc. |
|
4 Hot water tank |
-Material: Stainless steel 304 -Heating way: Steam heating; -Inner-Jacket(SUS304)thickness: 3.0mm; -External-Jacket(SUS 304) thickness: 1.5mm; -Polyurethane-thickness: 80mm. -The stainless steel steam-jackets’ thickness 2.0mm, and the area of the jackets is 0.8 square meters. -Stainless steel round shaped manhole, diameter:400mm. -Temperature measurement: temperature probe PT100;etc |
| 5. Plate heat exchanger | BR0.1/3:15 square meter Material: Stainless steel. Design pressure:1.0Mpa; Working temperature:170°. Tap water pipe diameter of import and export: DN25; The malt import and export pipe diameter: DN25; Ice water pipe diameter of import and export: DN25. |
|

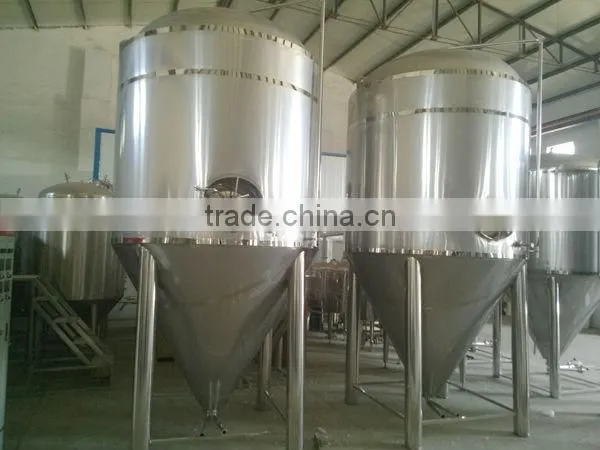

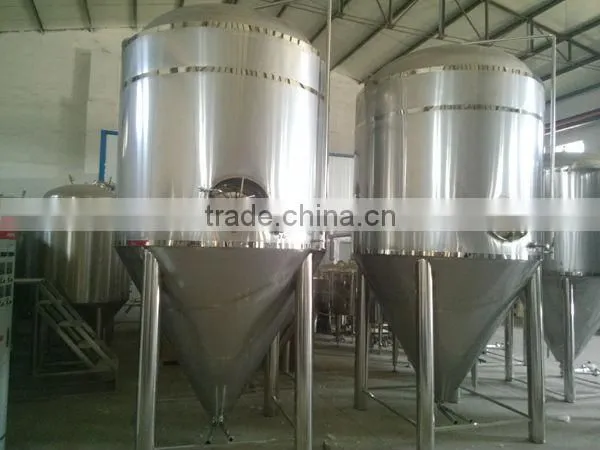

6. Fermentation Tank |
-Cooling way: Ice water belt cooling; -Cooling media: glycol water or alcohol water. -Structure:Inside and outside are all stainless steel 304 processing. And the inner polished into 0.4µm, stainless steel cooling water jacket, with 1.5mm thickness. -The inner tank thickness 3.0mm, cone bottom 3.0mm. Cladding 1.5mm. -Insulation: Polyurethane-thickness: 100mm. -Equip with: Cone 75°resist compression design, dripping temperature drop; Side manhole: 330*430mm. -Sampling method: 1 piece of aseptic sampling valve. |
| 7 Refrigerating System |
Cooling system is consists of Ice water tank, Refrigerating unit, Ice water pump, pipelines and valves and so on Ice Water Tank:Useful capacity: 6000L. Refrigerating unit:Model: 8P;Capacity: 16000 kilocalorie.etc |
| 8 Cleaning System | useful:100L |
| 9 heating systems |
Evaporation :200kg/h Amount :1 piece Technical parameters:Fuel: 0# diesel/ gas /natural gas /LPG(liquefied petroleum gas).;Working pressure: 0.7Mpa;;Temperature: 151°C-170°C.;Voltage: AC 220V 50Hz.Equipped with: Water tank, water treatment.etc |
| 10 Control System |
Control Cabinet Mashing control Fermenting control Cooling control Cleaning control etc |
| 11 filling system |
barrel filling machine, barrel washing machine, bottle filling machine |
