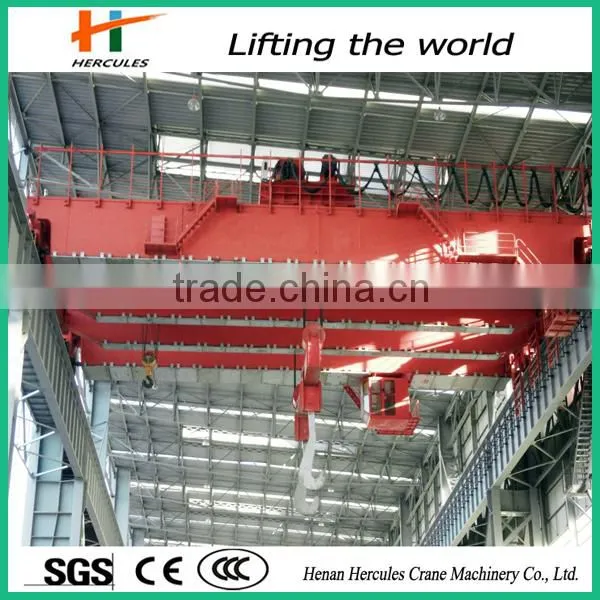

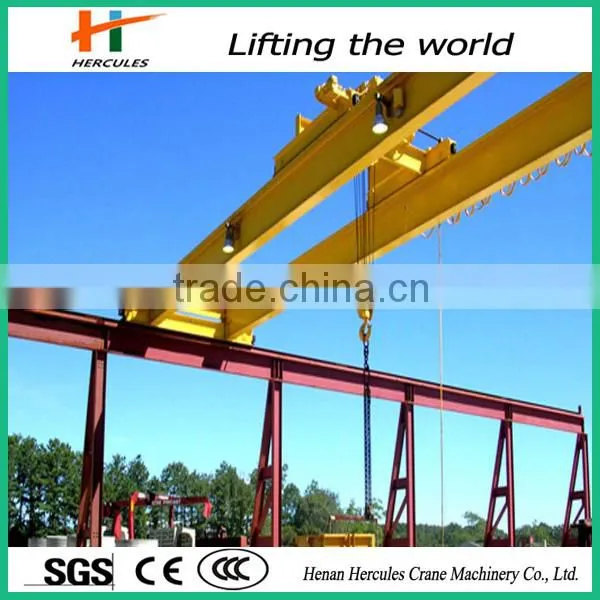

QD 500t Eot Double Girder Crane for Smelter Factory
- 500 Set / Sets per Month
- Qingdao Shanghai Guangzhou Port or as requested
- T/T L/C D/P D/A Credit Card PayPal
- Pillar column type jib cantilever slewing crane light working duty equipment
- New type boxed single beam bridge crane hoist traveling on square beam
- European design electric hoist double beam bridge crane hard tooth VFD
- Boxed type single girder gantry crane hoist lifting mechanism for sale
- European design double girder overhead crane KSQ model VFD speed control
- QD model double beam overhead crane bridge boxed beams for sale
Product Details
Condition: | New | Application: | Widely Used | Rated Loading Capacity: | 1-20t |
Rated Lifting Moment: | 1000KN | Max. Lifting Load: | 500ton | Max. Lifting Height: | 6~30m |
Span: | 10.5-31.5m | Place of Origin: | Henan, China | Brand Name: | Hercules |
Model Number: | QD Model | Certification: | ISO9001 | Warranty: | 2 Years, 2 years |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
QD 500t Eot Double Girder Crane for Smelter Factory

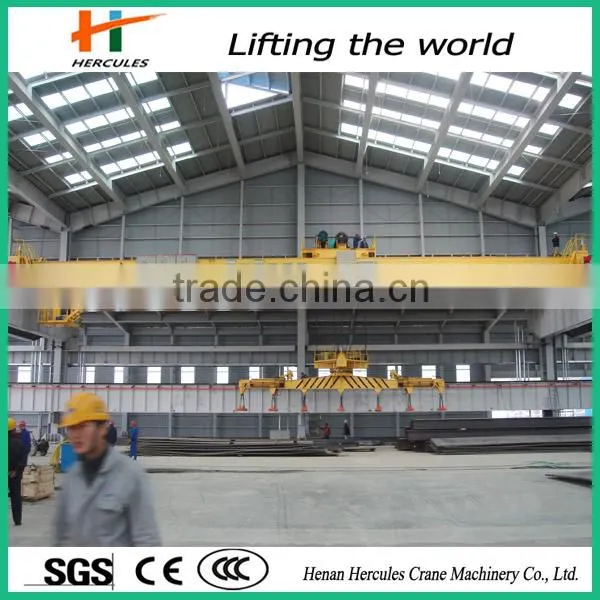

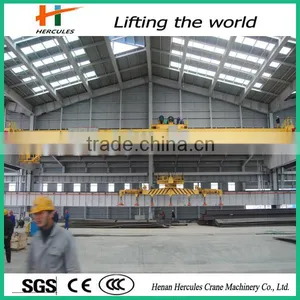

This overhead crane is a special product equipped with electromagnetic carrier beam that used to lift iron or steel plates, pipes and so on. The overhead crane consists of bridge, crane travelling mechanism, trolley, electric equipment and electromagnetic carrier beam. Both travelling mechanism and trolley motors are special motors for cranes, large starting torque and loading capacity.
The electromagnetic beam can be taken down from the hook or designed as fix hanger. The beam length can be designed as requirements. The beam can be parallel of plumbing with crane girders depending on transporting environment.
For higher application requirements, extractable and 360 degree electromagnetic beam suspending system can be provided.
Application:
In loading and unloading, the crane can lift iron or steel blocks, cylinders and so on. It is very convenient for application in loading, unloading, and moving. Permanent Magnetic crane are the most ideal lifting facility for factories, docks, warehouses and transportation
Features:
Lightly and ingeniously structured, easy for application, strong magnetic Attraction power and safe in handling.
Note:
1. Entrance into drivers cabin including top, rear and end types.
2. When using of electro-magnet, revolving part screw of hooks must be tightened, not allowed to rotate.
3. Capacity including electro-magnet dead weight.
4. Crane whole weight excludes electro-magnet and its accessories weight.
5. The indicated electro-magnet listed in the table is for your reference, absorption weight of this model electro-magnet is the max absorption capability, customer could select according to actual use conditions.
Safety feature:
Weight overload protection device, Top quality long time bearing polyurethane materials buffer, Crane traveling limit switch, Voltage lower protection function, Emergency stop system, current overload protection system and so on!
Painting:
Primer and finishing painting.
Color: According to your demand.
Average thickness: About 105 microns.
We are able to design and product non-standard hoisting equipment in accordance with special requirements in span.

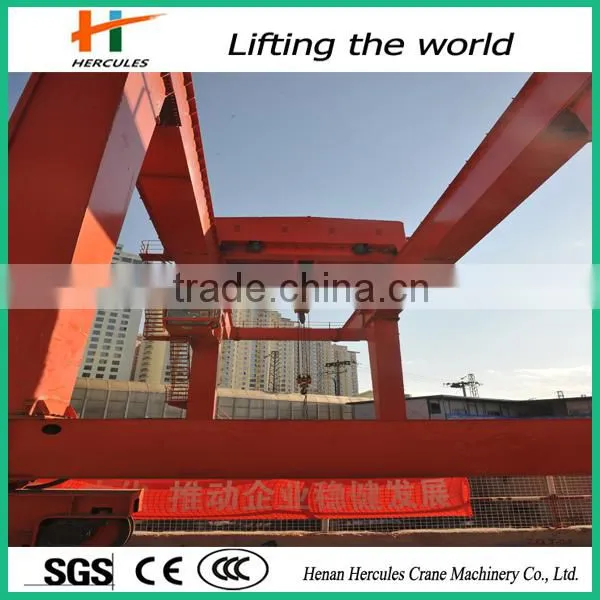

Type | A-Type Double Girder Gantry Crane with Hook Cap 5-320t | |||||||||
Capacity(t) | Main | 10 | 16 | 20 | 32 | 50 | 75 | 100 | ||
Aux | 3.2 | 5 | 5 | 10 | 20 | 20 | ||||
Span | 18; 22; 26; 30; 35 | 30,35 | 40 | 16 | ||||||
Hoisting height(m) | Main | 11 | 12 | 12 | 12 | 22 | 22 | 17.5 | ||
Aux | 16 | 14 | 14 | 24 | ||||||
Hoisting speed | Main | 7.4 | 9.4 | 5.8 | 7.7 | 7.68 | 6.25 | 4.62 | ||
(m/min) | Aux | 11.2 | 12.6 | 15 | 19.8 | 9.28 | 9.28 | |||
Hoisting motor | Main | YZR200L-8/15 | YAR225M-8/22 | YAR250M1-8/30 | YAR280M-8/55 | YZR315S-10/63 | YAR315M-10/85 | YZR315M-10/85 | ||
Aux | YZR160L-6/11 | YZR160L-6/15 | YZR180L-6/15 | YZR250M-8/35 | YZR250M1-8/35 | YZR250M1-8/35 | ||||
Crane Rail Recommended | 43kg/m 43kg/m 50kg/m Qu80 | Qu80 | ||||||||
Power source | Three phase AC 380V 50Hz |
Pre-sale services: We can provide you with project design, process design, suitable purchase program for your equipment.Also design and manufacture products based on your specific needs, to train your technical personnel.
Sale: We will accompany you to complete the equipment inspection, construction plan and assist in the development process in detail.
After Sale Service: We send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.
Our company is mainly engaged in manufacturing Excavator standard buckets, Reinforced buckets, Rock buckets, Clamshell buckets, Tilt buckets, Skeleton buckets, Grapples, Excavator rakes, Mechanical grabs, Hydraulic grabs, Long reach booms, Three section booms,Quick couplers, Rippers, Bucket teeth, Forks for forklift, Hydraulic vibrating hammers and other parts of machinery. Our factory covers an area of 38000 square meters. As professional engineering machinery accessories supplier, we provide high quality products and excellent services for a variety of dock, subway construction, river cleaned, building dismantlement, municipal engineering and other large projects. Our products are exporting to more than 40 countries and regions.
