commerical beer brewing equipment with beer brew pot with high quality conical fermentation tank

Note: 1hl=100liter; 1Gallon=3.7854liter; 1Barrel (BBL) =117Liter;

Standard feature:

Mash/lauter tank: used for mashingin, lauter, recirculation, and sparging.
*Stainless steel material 304/316
*Exterior thickness: 1.5~2.0mm
*Interior thickness:2.5mm~3.0mm
*Flange&dish head
*Polyurethane 80~100mm
*Rotary cleaning ball
*Recirculation with sight glass
*Coned bottom
*Raker knife with variable speed drive
*False bottom
*Ring of sparging
*Temperature senser
*Separate mash tun, lauter tank available

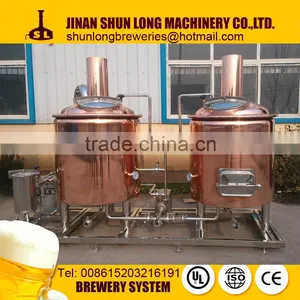

Kettle/whirlpool tank:used for boiling and whirlpool of the wort
*Stainless steel material 304/316
*Exterior thickness: 1.5~2.0mm
*Interior thickness:2.5mm~3.0mm
*Stainless steel heating jacket, both on the bottom and around the side
*Flange&dish head
*Spray cleaning ball
*Temperature senser
*Equip with agitator
*Condenser device
*Separate kettle, whirlpool tank

Optional:

3-vessel: mash tun-lauter tank-kettle/whirlpool tank
mash/kettle tank-lauter tank-whirlpool tank(combination type optional)
4-vessel: mash tun-lauter tank-kettle-whirlpool tank

Hot water tank, Screw conveyer, Grist case optional
Process: mirro polishing, pure argon gas protecting welding, double face forming
Panel: Mirro/wire-drawing/2B optional

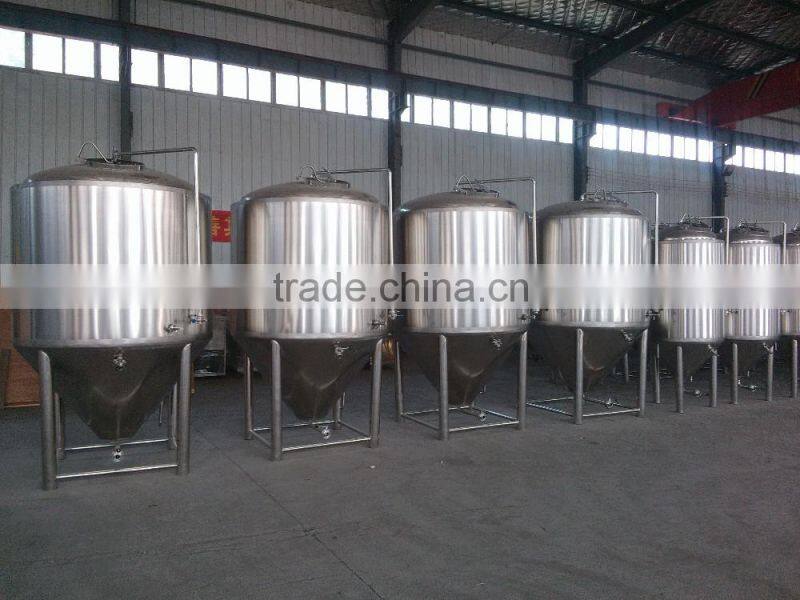

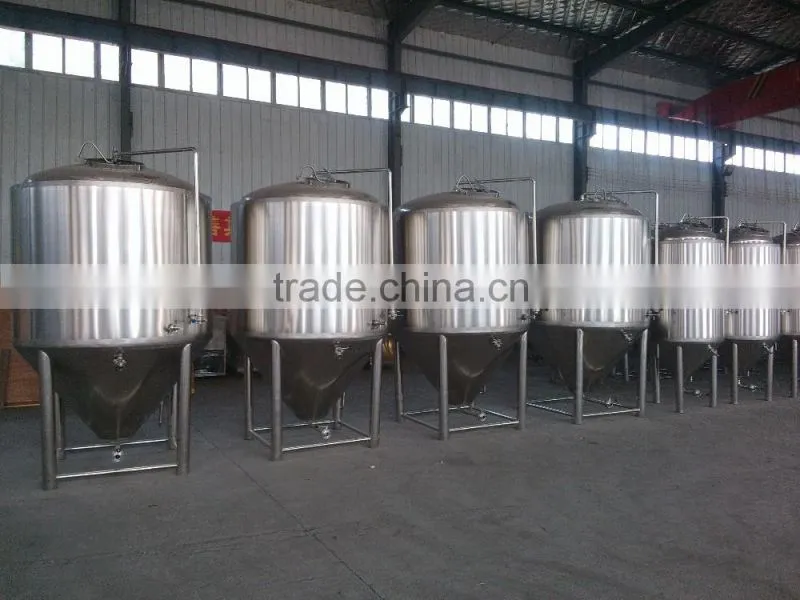

Standard features of the conical fermentation tanks/unitanks/CCVs:

Conical bottom, cylindrical top, stainless steel 304 double walled jacket tanks

Bottom cone 60 degree, allow the yeast to flow towards the cone's apex

Compression resistance design, design pressure 0.3Mpa, working pressure 0.15Mpa

Stainless steel cooling jacket

Both the tank and the jacket will have 48 hours pressure test&inspection

Stainless steel legs(3 or 4), with screw assembly to adjust leg height

Dry hops adding port, racking arms optional

Stainless steel ladders for large tanks

All relative valves: pressure regulating valve, safety valve, sampling valve, drainage valve food and sanitary grade stainless steel 304 material

Single tank, single control

Yeast adding tank of the beer brewing equipment:

 CIP system of the beer brewing equipment:

Accessories of the beer brewing equipment:

We can supply 50L,100L, 200L, 300L, 500L, 1000L ,2000L,3000L,5000L,10000L and so on capacity beer brewing equipment.

Tell me your specifications and I will customize for you acccording to your requirements.

1. Q: Do your products could be customized?
A: Yes, the beer brewing equipment could be customized.

2. Q: Do you supply after-sales service?
A: Yes, we could supply after-sales service. We have 6 full-time engineers and other 4 part-time engineers available to go abroad to train installing and brewing.

3. Q: How long will the full set of equipment be guaranteed?
A: Three years warranty for main machine, one year warranty for the accessories.

4. Q: Are you trading company or manufacture?
A: We are a professional manufacture of beer brewing equipment in this field.

5. Q: How is the proportion of your domestic market and foreign market?
A: 40% for domestic market, and 60% for foreign market.

6. Q: How long will the full set of equipment be shipped to us if we order it?
A: It will take 30-40 days to produce the full set of equipment.

7. Q: What should we do if there are problems during the process of using the equipment?
A: Firstly, we will communicate through email, skype or telephone, but if any accessory parts lead to problem, the accessory parts will be posted to you. If problems cannot be solved by all above mentioned method, our engineer will go abroad to solve for you.

8. Q: Do you also sell raw materials of brewing beer?
A: Yes, we do. We sell different kinds of raw materials including hops, yeast and malt.

Pre-sale service:

1. Provide quotation proposal/offers, 3D and CAD layout drawings and details specifications, craft and technical guidance of beer brewery system,  Cost and Prospects Analysis and so on.

If you are interested in any product, please don't hesitate to contact us. We will make the best suitable brewing plan and equipment line during our talks. We will quote you, and give you all the details you need at first time

2. We can provide company’s qualification certification and customers reference if you need.

All of our products are passed CE, ISO test. We can show you our qualification and certification, to ensure provide the best quality equipment for you and all the materials are made of foodgrade, safe and durable

3. We can also make customized products according to customer’s needs.

We accept OEM production. You can inform us all you need. We'll make our best efforts to make your satisfaction.

After-sale service:

1. We provide long-term after-sale service.

We do not just sell products to you, the most important is help you achieve your brewing dream.

2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa,

accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.

3. Meanwhile, you can call or Email to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.

4. The main equipment have three years warranty, auxiliary engine and accessory have one year warranty.

Shunlong Company would like to devote our sincere attitude, good credit, best quality and perfect service, to cooperate with all clients, to set up our mutual bright future. And we have full lines with beer brewing equipment.

Our equipment is well designed by professional designer, and adjustable according to your request. The best material is used to product your machine. The equipment is carefully packed before delivering.

1. LCL/FCL(20GP/40GP/40HQ)
2. packed with plastic film in fumigation free wooden case or fixed with iron frame
3. up to export standard, suitable for delivery
4. customer's requirements available

We ensure every order will not live up to the customers' requirement. Every order will be check by the professional skilled engineer before shipping.
