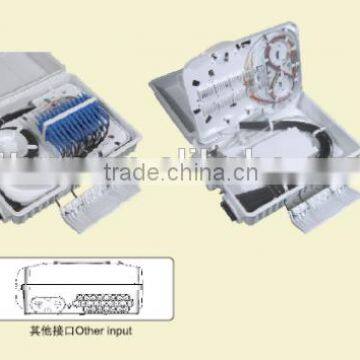

FTTH SC 24 Cores IP65 Wall or Pole Fiber Optical Equipment
Negotiable
MOQ: 200 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM/ODM
Model Number:
GFS-24E
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FTTH 24 Cores IP55 Wall or Pole Mounted Fiber BoxNegotiableMOQ: 200 Pieces -
FTTH SC16 CORES PRE-CONNECTION SUPPORTING Uncut With Branch Holes Wall or Pole Mounted IP66 Fiber BoxNegotiableMOQ: 200 Pieces
-
FTTH 16 Cores IP66 Fiber Optical Terminal BoxNegotiableMOQ: 200 Pieces
-
FTTH 2pcs 1*8 PLC Splitter Box Splicing Box 16cores Fiber BoxNegotiableMOQ: 200 Pieces
-
FTTH 16pc SC Adapter Fiber Box(Indoor or Outdoor)wall Mounting or Pole Mounting Uncutting Fiber BoxNegotiableMOQ: 200 Pieces
Place of Origin
Zhejiang, China
Brand Name
OEM/ODM
Model Number
GFS-24E
Product Description
1、Description：
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
2、 Features：
1.Total enclosed structure.
2.Material: PC+ABS，wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP65。
3.Clamping for feeder cable and drop cable, fiber splitting, splicing, fixation, storage, distribution...etc all in one.
4. There is turned fiber storage wheel located on the base, it can keep dia. 3.00 drop cable in 30M.
5. Cable，pigtails，patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
6. Distribution panel can be flipped up, feeder cable can be placed by express port, easy for maintenance and installation.
7. Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
3、Specification：
1、Environmental requirement
Working temperature：-40℃～+60℃
Relative humidity：≤85%（+30℃）
Atmospheric pressure：70KPa～106Kpa
2、Main technical datasheet
Insertion loss：≤0.2dB
UPC return loss：≥50dB
APC return loss：≥60dB
Life of insertion and extraction：＞1000 times
3、Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2 MΩ/500V（DC）；
IR≥2 MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture，no flashover
；U≥3000V

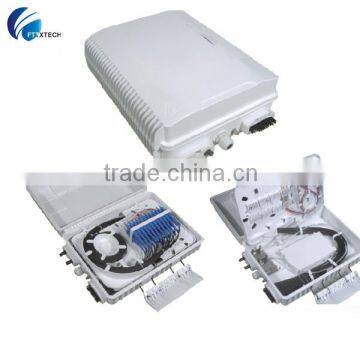

Detailed Images
Packing & Delivery
10PCS/CARTON
G.W.:23.00KG
N.W.:19.20KG
Meas:600*380*700MM
